4.1.2
Back Panel Connectors

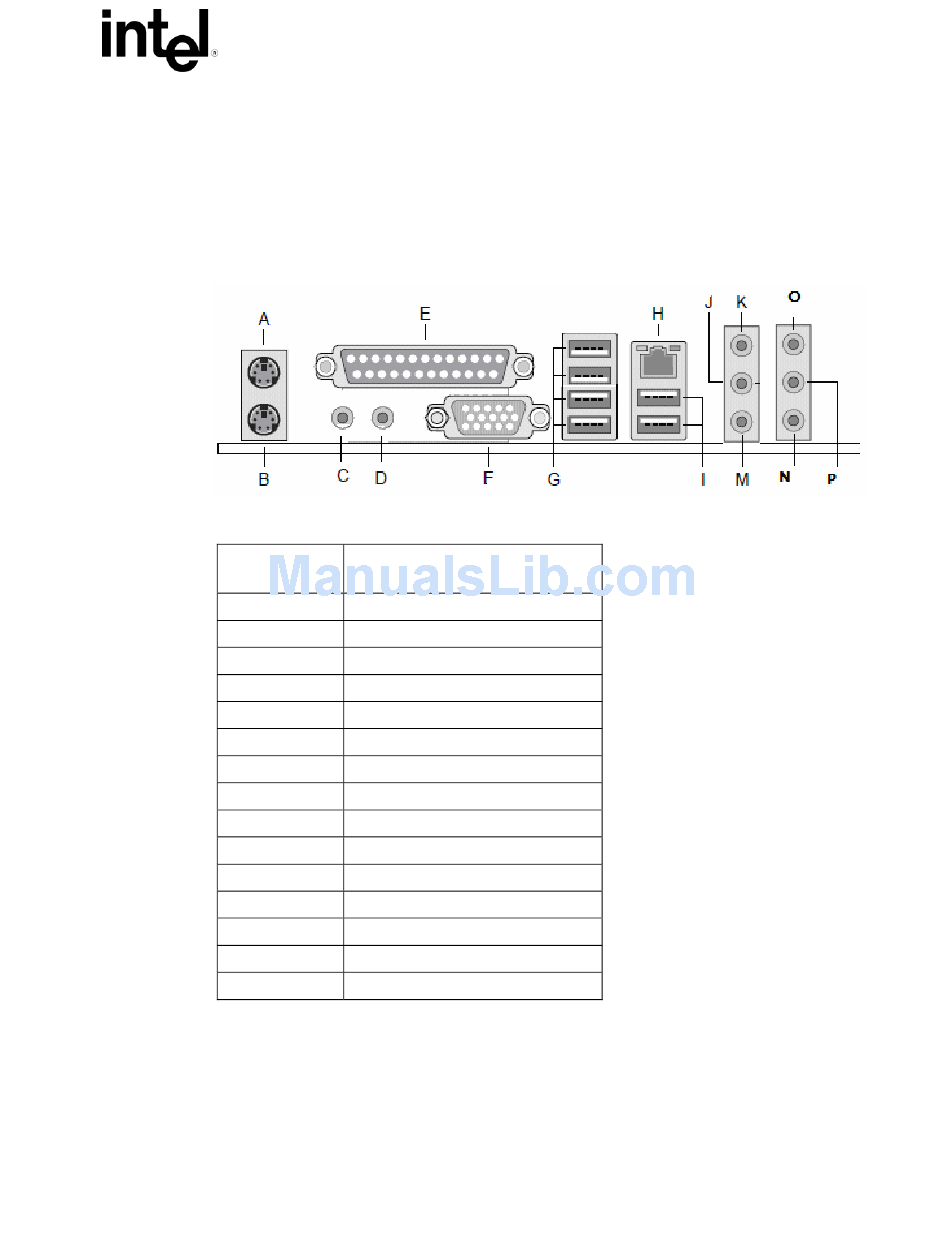

The illustration below shows the location of the back panel connectors for boards equipped
with the 8-channel (7.1) audio subsystem. The back panel connectors are color-coded. The
figure legend (Table 14) lists the colors used (when applicable).
Figure 12
Back Panel I/O Connectors
Table 14
Back Panel I/O Connectors
Item/Callout
from Figure 12
A
B
C
D
E
F
G
H
I
J
K
M
N
O
P
4.2
Primary Features
This section will discuss the reference designator for the core component, expansion slots,
processor socket, and PCI Express connector.
Table 15 and 16 on the next page list the major board components.
Reference #308823
®
Intel
945G Express Chipset Development Kit User's Manual
Description
PS/2 mouse port [green]
PS/2 keyboard port [purple]
S/PDIF digital audio output
S/PDIF digital audio input
Parallel port [burgundy]
VGA port
4x USB port
RJ45 LAN connector
2x USB port
Surround L/R audio port
Surround rear L/R audio port
Center audio port
MIC in
Line in
Front / line out
Hardware References
41
