Intel 945G Express Chipset Development Kit User's Manual
Setting Up the Development Kit
3.3.3.1 Gigabit LAN Subsystem
The Gigabit (10/100/1000 Mbits/sec) LAN subsystem includes the Intel
Ethernet Controller and an RJ-45 LAN connector with integrated status LEDs.
The 82573E controller supports the following features:
• PCI Express link
• 10/100/1000 IEEE 802.3 compliant
• Compliant to IEEE 802.3x flow control support
• TCP, IP, UDP checksum offload
• Transmit TCP segmentation
• Advanced packet filtering
• Full device driver compatibility
• PCI Express Power Management support
• Jumbo frame support
• Intel
• Alert Standard Format (ASF) 2.0
3.3.3.2 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (as shown in Figure 9). Table 7
describes the LED states when the board is powered up and the Gigabit LAN subsystem is
operating.

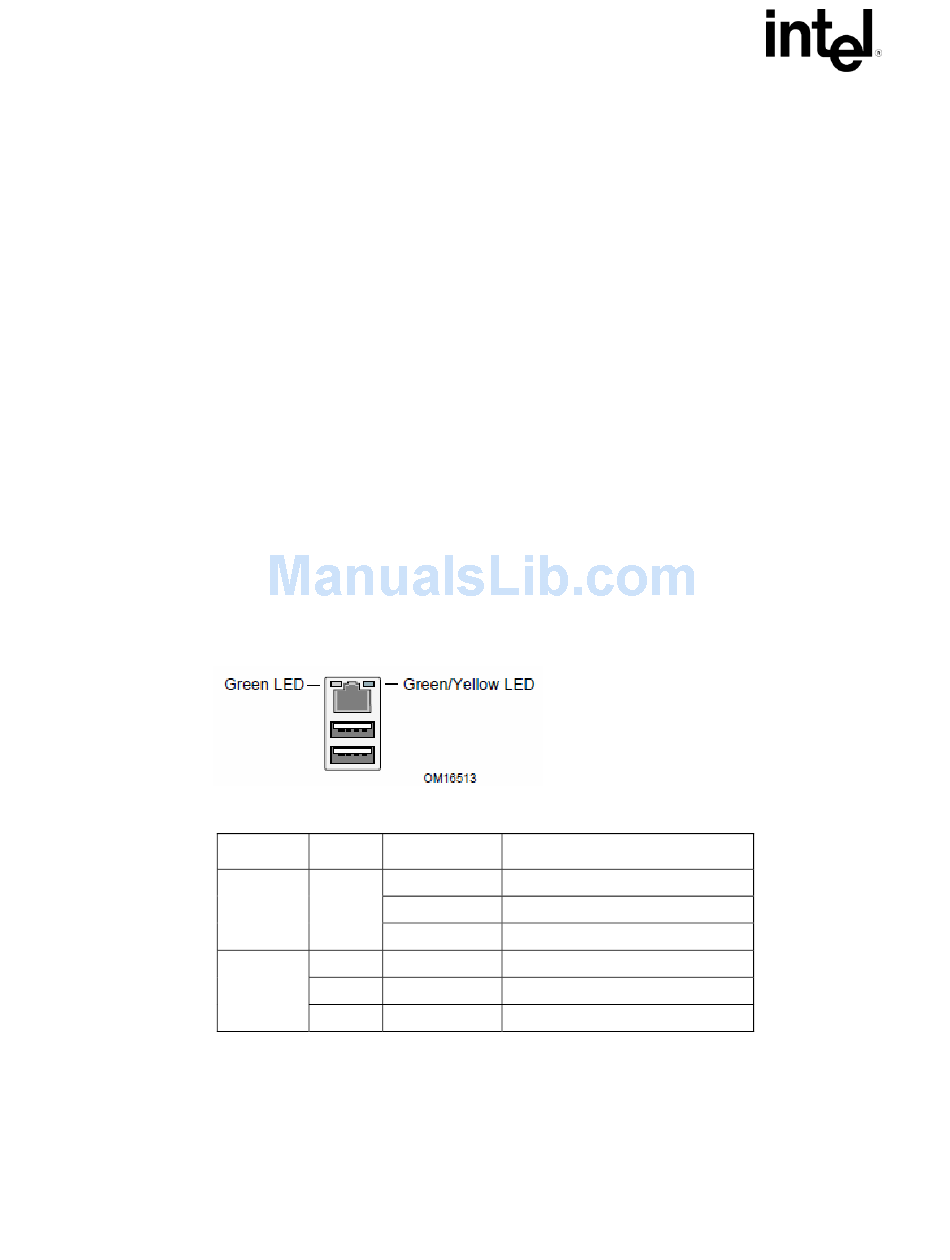

Figure 9 LAN Connector LED locations
Table 7 LAN Connector LED Status
LED
Left
Right
30
®
Active Management Technology
Color LED State
Off
Green
On
Blinking
N/A Off
Green On
Yellow On
Condition
LAN link is not established.
LAN link is established.
LAN activity is occurring.
10 Mbits/sec data rate is selected.
100 Mbits/sec data rate is selected.
1000 Mbits/sec data rate is selected.
®
82573E Gigabit
Reference #308823
