Installation

Inside the AXP-PLV

The AXP-PLV unit contains two discrete AXlink devices: an AXP-AI8 (eight-channel analog input
interface board) and a mini color video touch panel. The AXP-AI8 is connected to the joystick and
knob functions of the AXP-PLV and is set to a factory default of 129.
Level assignments for the AXP-AI8 inside the AXP-PLV are:
AXP-AI8 Level Assignments
Level 1
Level 2
Level 3
Level 4
Level 5
Level 7
Refer to the AXP-AI8 Eight-Channel Analog Input Interface Board instruction manual for more
information.

Setting the AXlink Device Numbers

To change the AXP-AI8 AXlink device number:
1. Gently rotate the panel (bringing the joystick to the left) over until you can lay it down and
expose the slender opening on the underside of the unit. The slot exposes the AXlink DIP
switch on the internal AI8 circuit card) (FIG. 6).
8 7 6 5 4 3 2 1
AXlink
DIP switch
(S5)

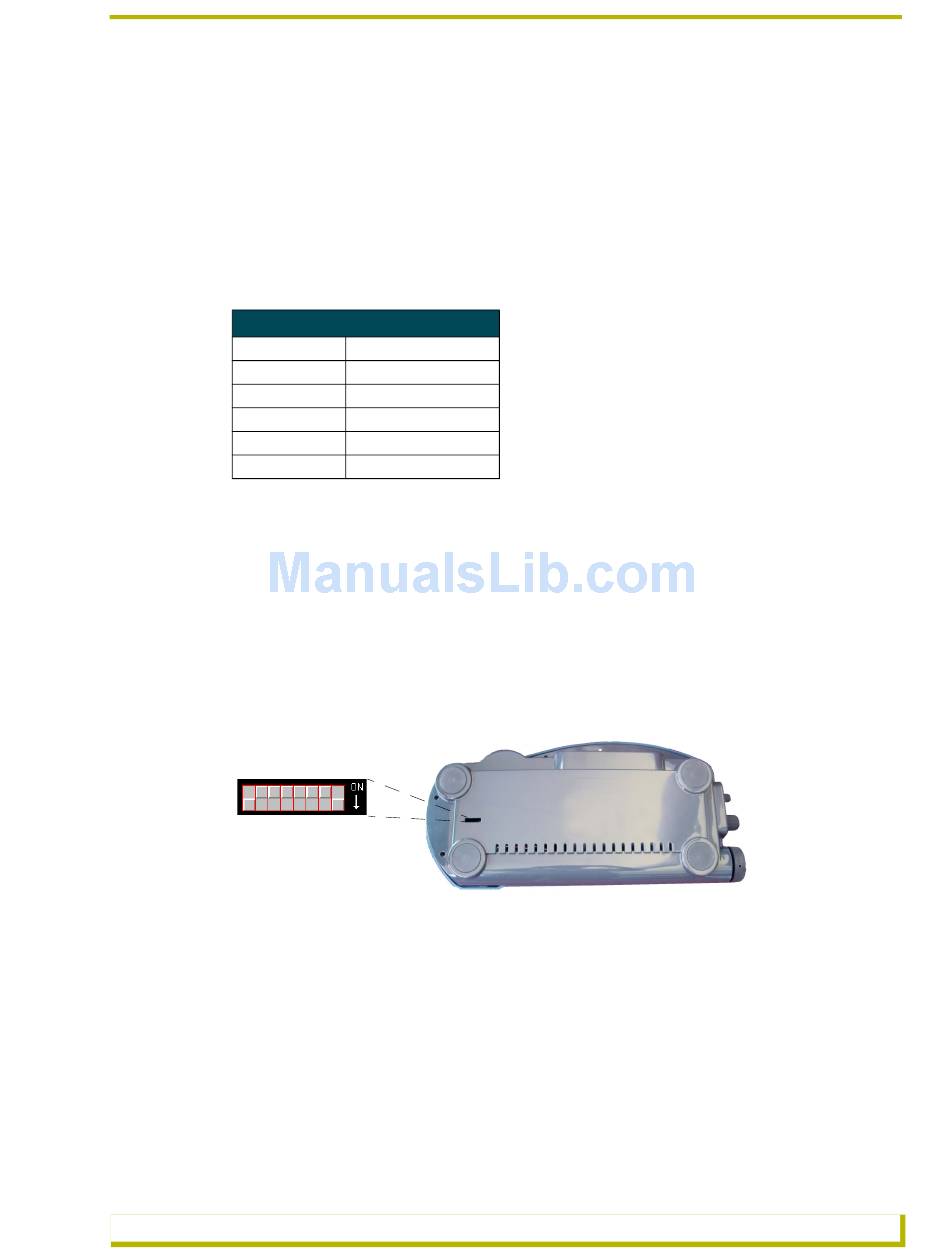

FIG. 6 AI8 AXlink DIP switch location (default set to 129)
2. Use a slender screwdriver to change the internal DIP switch positions from their default value
of 129 (FIG. 6).
The DIP switch value set on the underside of the controller is the value assigned to the internal
AI8 card (default 129). The touch panel is default set to 131. When the unit is connected to a
Central Controller and queried for its addresses, it returns a value for both the touch panel
(default 131) and the AI8 card (default 129).
AXP-PLV PosiTrack Pilot Video Camera Controller
Pan (joystick)
Tilt (joystick)
Zoom (joystick)
Speed (knob)
Iris (knob)
Focus (knob)
Installation
5
