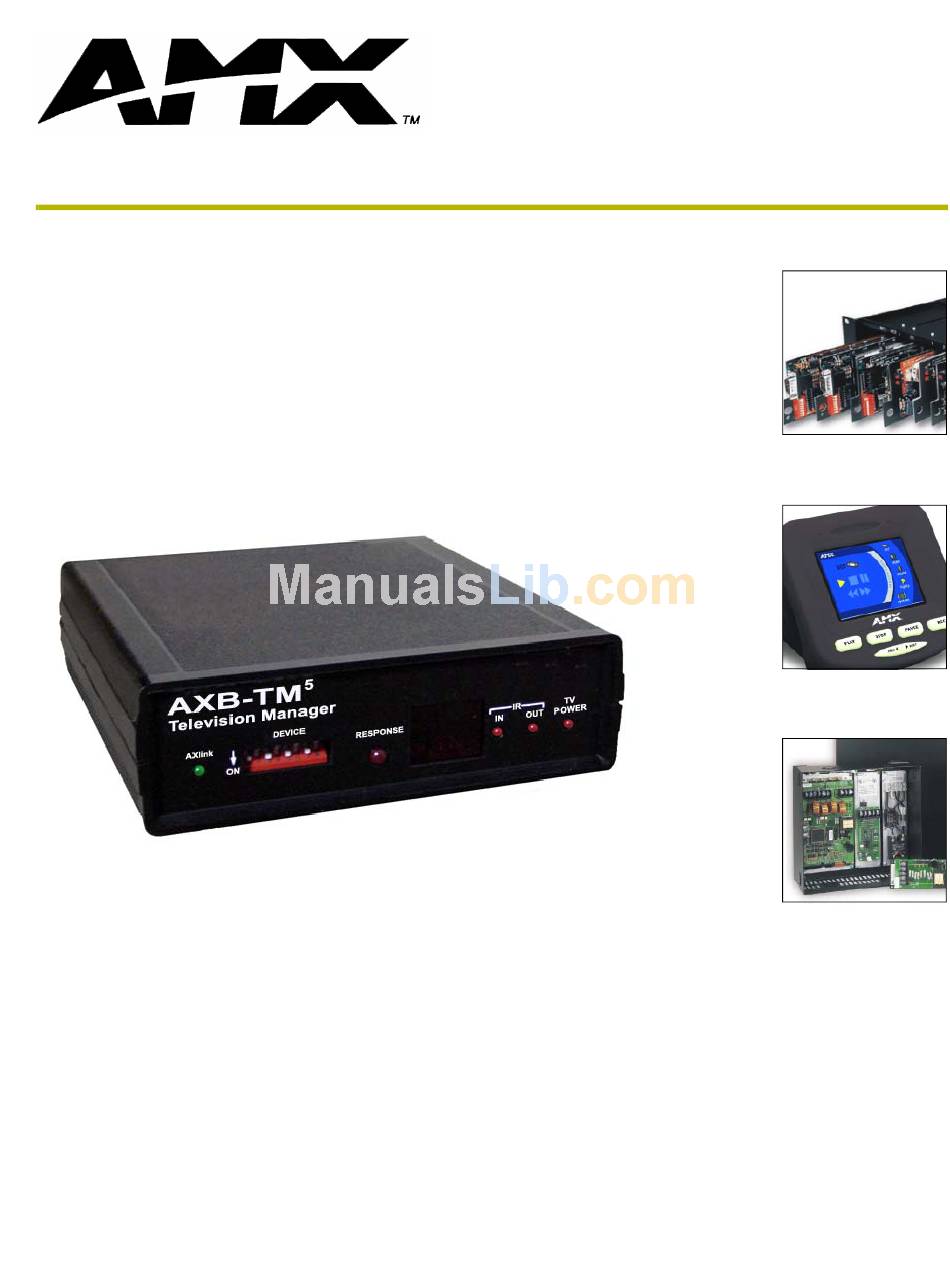

- Page 1 AXB-TM5 Television Manager A X l i n k B u s C o n t r o l l e r s...
- Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Table Of Contents
TV sensor connections... 6 PCS connections... 6 AXlink data and 12 VDC power supply connections ... 6 IRX-SM connections ... 7 Programming ...9 Channel Setting Commands ... 9 Device Assignment ... 9 System Send_Commands... 10 AXB-TM5 Television Manager Table of Contents... - Page 4 Table of Contents AXB-TM5 Television Manager...
-
Page 5: Product Information
The AXB-TM5 Television Manager is a microprocessor-based television controller. The AXB-TM5 can be configured as a peripheral on the AXlink. As part of an Axcess Control System, provides media source selection and management via remote control. The AXB-TM5 acts as a local AXlink bus controller and as a receiver for an AMX wireless control panel. - Page 6 (455 kHz or 38 kHz) IR sensors for AMX IR panels. Flashes when the AXB-TM5 receives an IR signal from a wireless transmitter. Flashes when the AXB-TM5 IR port sends an IR command to the television receiver. Lights when the CC-XPS External Frequency Television Scan Sensor detects power on a television or monitor as the horizontal scanning frequency from the television receiver.
-
Page 7: Connection And Wiring
An eight-position DIP switch is used to set the device number for the AXB-TM5. The device number must match the number assigned in the Axcess software program. The AXlink device number range is 1-255 and is sent according to the Device DIP switch positions and their values. -
Page 8: Wiring The Rear Panel
You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires. Never pre-tin wires for compression-type connections. Do not connect power to the AXB-TM5 until the wiring is complete. If you are using power from AXlink, disconnect the wiring from the control system before wiring the AXB-TM5. -
Page 9: Cc-Irc Emitter Wiring Connections
CC-IRC emitter wiring connections FIG. 4 shows how to connect a CC-IRC IR Emitter to the IR Emitter connector on the AXB-TM5. To emitter connector FIG. 4 CC-IRC Emitter wiring connections IR emitter to device installation The following steps describe the installation of the IR emitter to the television IR window. -
Page 10: Tv Sensor Connections
FIG. 9 PCS connections AXlink data and 12 VDC power supply connections Connect the control system's AXlink connector to the AXlink connector and an external 12 VDC power supply on the rear panel of the AXB-TM5 as shown in FIG. 10. CC-IRC Television for I/O 1. -
Page 11: Irx-Sm Connections
If you are using power from AXlink, disconnect the wiring from the Axcess Control System before wiring the AXB-TM5. Use a 12 VDC power supply when the distance between the control system and AXB-TM5 exceeds the limits described in the Wiring Guidelines section on page 4. Make sure to connect only the GND wire on the AXlink connector when using a 12 VDC power supply. - Page 12 Connection and Wiring AXB-TM5 Television Manager...
-
Page 13: Programming
Programming You can program the AXB-TM5 to perform a wide variety of operations using Axcess Send_Commands. This section describes channel settings, IR functions, and system Send_Commands. Refer to the AXCESS Programming Guide for additional programming information. Channel Setting Commands The AXB-TM5 use the channel setting commands listed in the following table. -
Page 14: System Send_Commands
Programming System Send_Commands System Send_Commands are stored in the Axcess Control System and direct the AXB-TM5 to perform various operations. System Send_Commands Command 'CARON' 'CAROFF' 'CH',<TV Channel> 'CTOF',<Time> '?CTOF' Description Turns the IR carrier On (default). Example: SEND_COMMAND AXBTMX,'CARON' Turns the IR carrier Off. - Page 15 The <Time> value is returned in .10 second increments. Example: SEND_COMMAND AXBTMX,'?CTON' Sends the current on-time pulse string from the AXB-TM5 to the control system in the ’CTON <Time>’ format. Sets a direct connection so the ’IR out’ (IR function) data transmits while the ’IR in’...
- Page 16 ’DE,<Time>’ to the AXC-EM. Set the <Time> value in .10 second increments. Example: SEND_COMMAND AXBTMX,'?DE' The AXB-TM5 sends the current television power sensor delay time to the control system in the ’DE <Time>’ format. Deletes all direct connections set with the ’DC’ command. Example: SEND_COMMAND AXBTMX,'DK' Disables the ’PIN’...
- Page 17 'PTON',<Time> '?PTON' The PTOF time affects how quickly the AXB-TM5 evaluates the power state of a TV. If a TV toggles between on and off when changing the power state, then the ’PTOF’ time should be extended. ’PTOF’ sets the time in-between each power pulse when the AXB-TM5 is attempting to change the TV's power state (regardless if pulse if On or Off).
- Page 18 Offset = 0 through 255 Example: SEND_COMMAND AXBTMX,"'RO',5" Subtracts 5 from the incoming IR code number and sends the appropriate IR function from the AXB-TM5 to the control system. Generates a single <IR out> function pulse. Syntax: "'SP',<IR out>'" Variables: IR out = 1 through 127.
- Page 19 System Send_Commands (Cont.) Command XCHM Changes the IR output pattern for the XCH command. AXB-TM5 Television Manager Description Syntax: SEND_COMMAND <DEV>,'XCH-<Mode>' Variable: Mode = 0-3 Example: SEND_COMMAND AXBTMX,'XCH 3' Sets the device's extended channel command to mode 3. Mode 0 Example (default): [x] [x] <x> <enter>...
- Page 20 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto* • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...
