Sample Product Application
FIG. 5 shows a camera control application using the AXP-PLV. AMX devices used for a single
camera configuration are:
Sample Devices Used
NXC-ME260
AXB-PT15
AXP-PLV
PS2.8
PSN6.5
Camera Adapter
DB-9
AMX AXB-PT-15

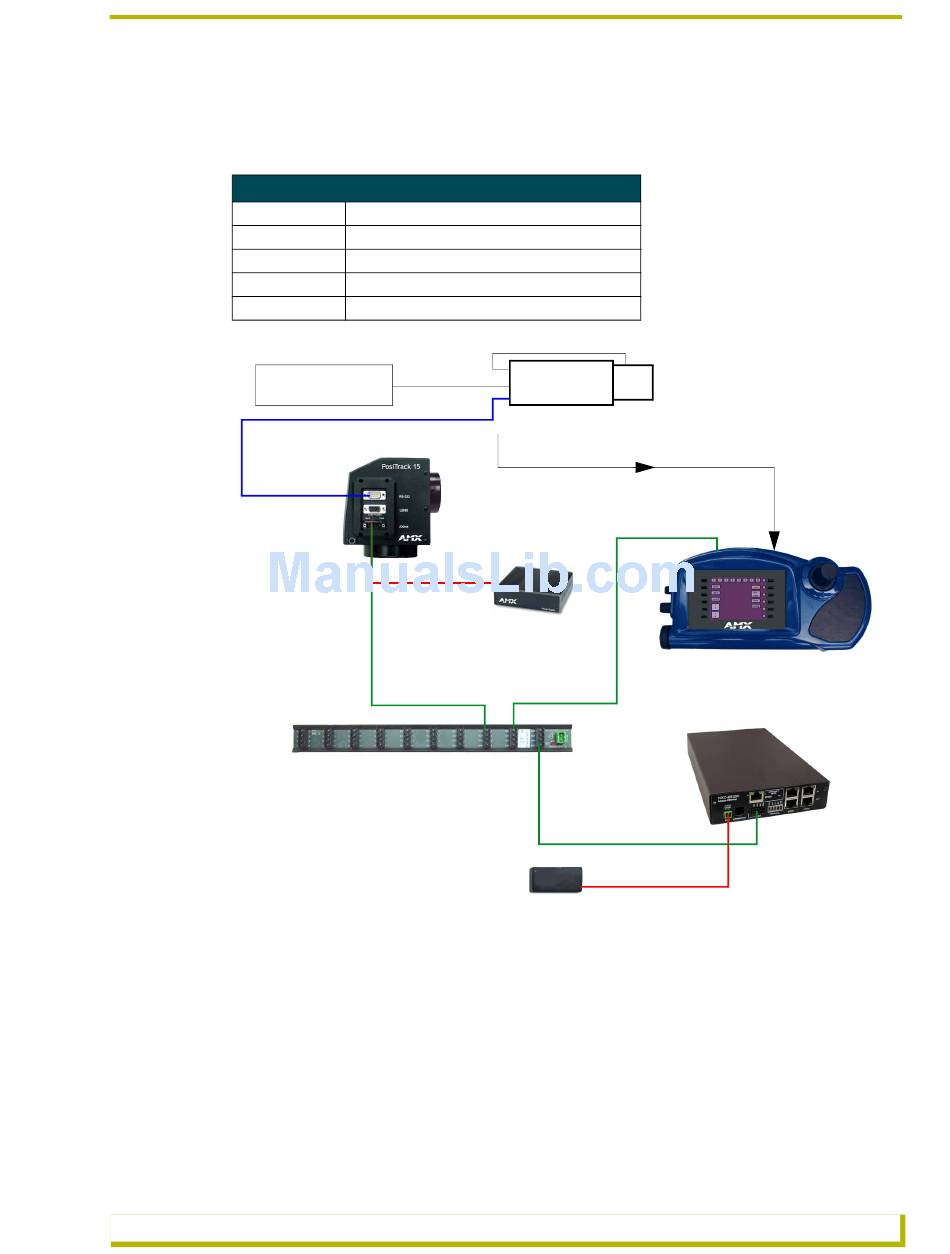

FIG. 5 AXB-PLV product application
AXP-PLV PosiTrack Pilot Video Camera Controller
NetLinx Master Controller
Pan/Tilt Camera Head
PosiTrack Pilot Video Panel Camera Controller
Power Supply (for AXB-EM232)
Power Supply (for AXB-PT15)
2-pin captive-wire
AXlink
AMX ABS (AXlink Bus Strip)
Camera
AMX PSN6.5
Power Supply
AXlink
AMX NXC-ME260 (rear view)
AXlink
2-pin captive-wire
AMX PS2.8
Power Supply
Introduction
Preview
input
AMX AXP-PLV
