Upgrading The Firmware
Upgrading the Firmware Using NetLinx Studio
The NetLinx Studio application can perform firmware upgrades for both Axcess and
NetLinx devices using the options in the NetLinx Studio Firmware sub-menu.
BEFORE beginning, download the correct TSK files from the AMX.com website.
Refer to the NXC-ME260 Instruction manual for detailed setup information.
Upgrading Firmware through a COM port
Before beginning with this section, verify that your AXP-PLV PosiTrack Pilot unit is powered and
connected to the NetLinx Master through an AXlink connection. Use this method if you can
connect a DB9 cable to the front PROGRAM port on the NetLinx Master.
1. Select Tools > Master Communication Settings, from the Main menu, to open the
Communication Settings dialog box (FIG. 16).

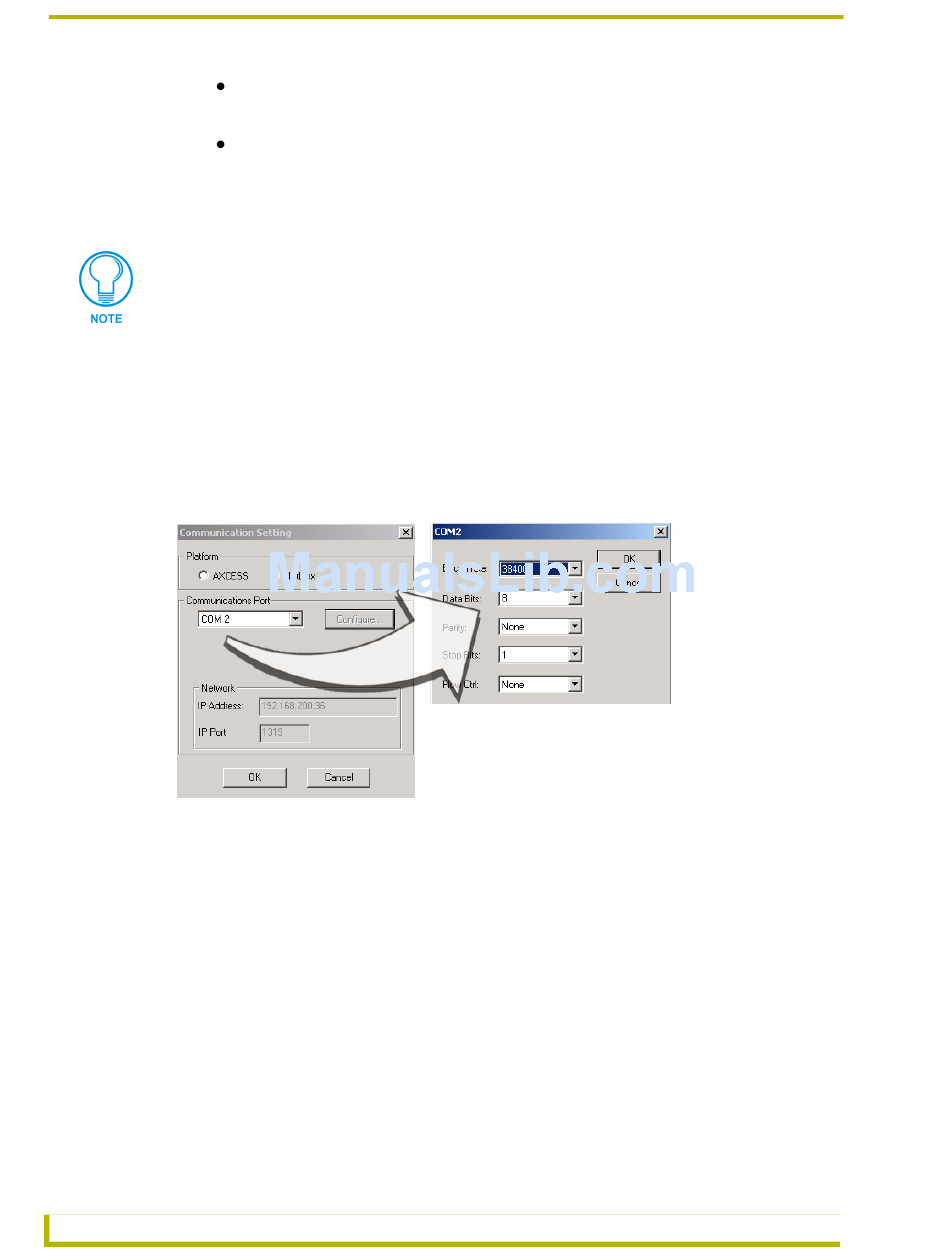

FIG. 16 Setting Communication Settings and Baud Rates
2. Click on the NetLinx radio box to indicate that you are working with a NetLinx Master (such
as the NXC-ME260).
3. From the Communications Port drop-down list, choose the COM port being used on your PC
to program and communicate to the NetLinx Master.
4. Click the Configure button to open the COM dialog box (FIG. 16) and set the BAUD rate for
the master (according to the DIP switch configuration within the NetLinx device).
5. Click OK twice to exit from the Master Communication Settings dialog box and to establish
the communication.
6. Select Edit > Preferences, from the General - Communications section.
7. Select the Enable Online Tree option to view the Connected devices from within the Project
Navigator window. The next step is to set the System value.
42
FG5630-70, serial numbers starting with 563070: contains a 6" screen and a
potentiometer focus wheel.
FG5630-80, serial numbers starting with 563080: contain a 6" screen and a potentiometer
focus wheel.
The default setting for these
units is 38400
AXP-PLV PosiTrack Pilot Video Camera Controller
