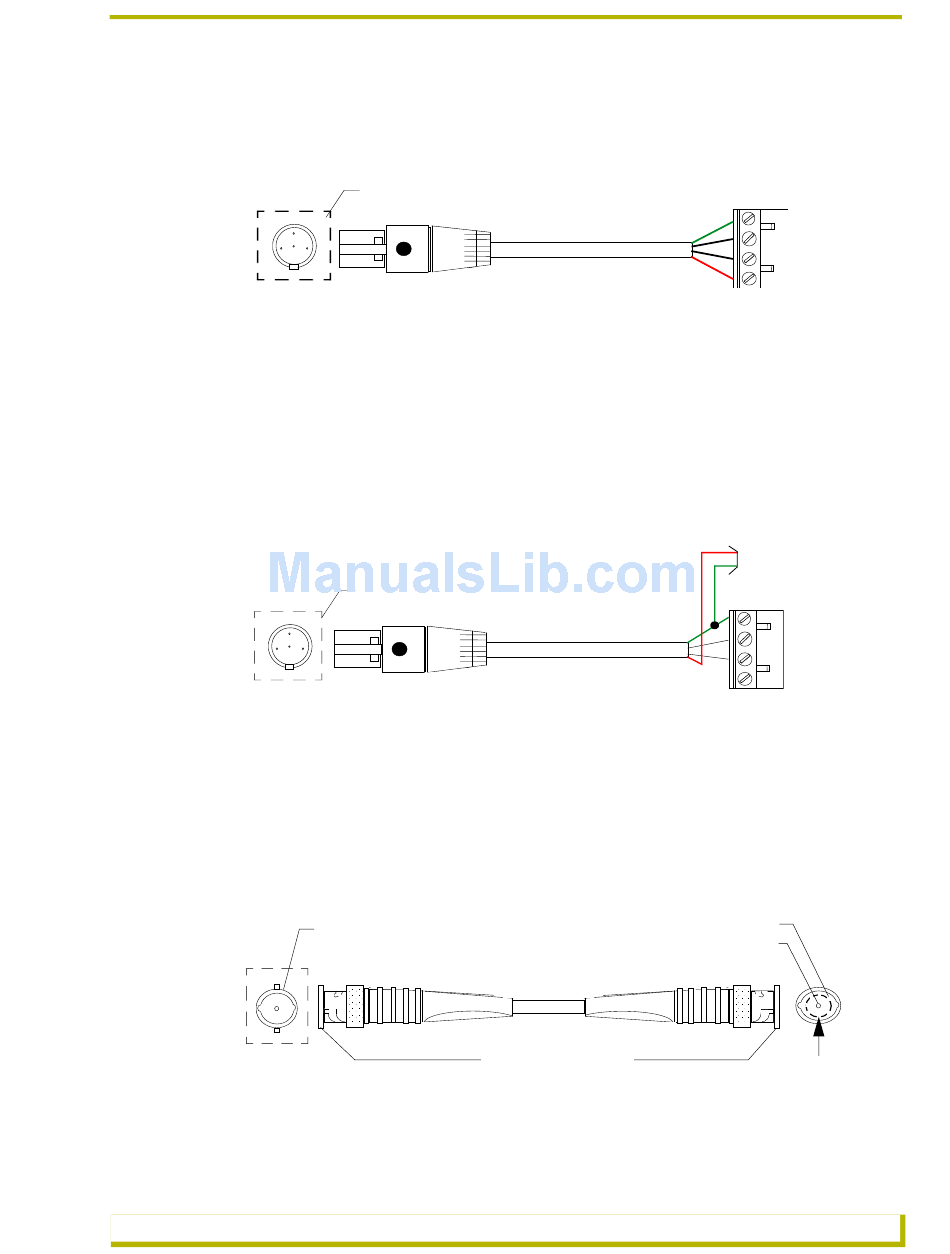

Using the mini-XLR connector for AXlink data and power
Wire the Central Controller's AXlink connector to the mini-XLR connector (male) on the rear
panel of the AXP-PLV for data and 12 VDC power, as shown in FIG. 7.
2
1
4
4 - PWR (+) - Red
3 - AXP
2 - AXM
1 - GND (-) - Black
FIG. 7 Mini-XLR connector to control system wiring diagram
Using the mini-XLR connector with an external 12 VDC power supply
Wire the Central Controller's AXlink connector to the mini-XLR connector and external 12 VDC
power supply. Then, connect the mini-XLR terminal connector to the rear panel of the AXP-PLV as
shown in FIG. 8.
2
1
4
4 - PWR (+) - Red
3 - AXP
2 - AXM
1 - GND (-) - Black
FIG. 8 Mini-XLR connector to external 12 VDC power supply wiring diagram
Using a BNC video cable to provide video input
Connect the control system's video connector to the rear of the AXP-PLV using a BNC cable to
provide a video feed, as seen in FIG. 9.
Rear panel
view AXP-PLV
FIG. 9 BNC cable connection from the AXP-PLV to the video source
AXP-PLV PosiTrack Pilot Video Camera Controller
Four-pin mini-XLR connector
(external view)
3
- White
- Green
Four-pin mini-XLR connector
(external view)
3
- White
- Green
BNC (female) connector
BNC (male) connectors
Installation
1 GND (-) - Black
2 AXM
- Green
3 AXP
- White
4 PWR (+) - Red
Central Controller
(Axcess or NetLinx)
PWR (+) - Red
GND (-) - Black
1 GND (-) - Black
2 AXM
- Green
3 AXP
- White
4 PWR (+) - Red
Central Controller
(Axcess or NetLinx)
GND (-)
Video wire
Video source
7
