Sample Product Application

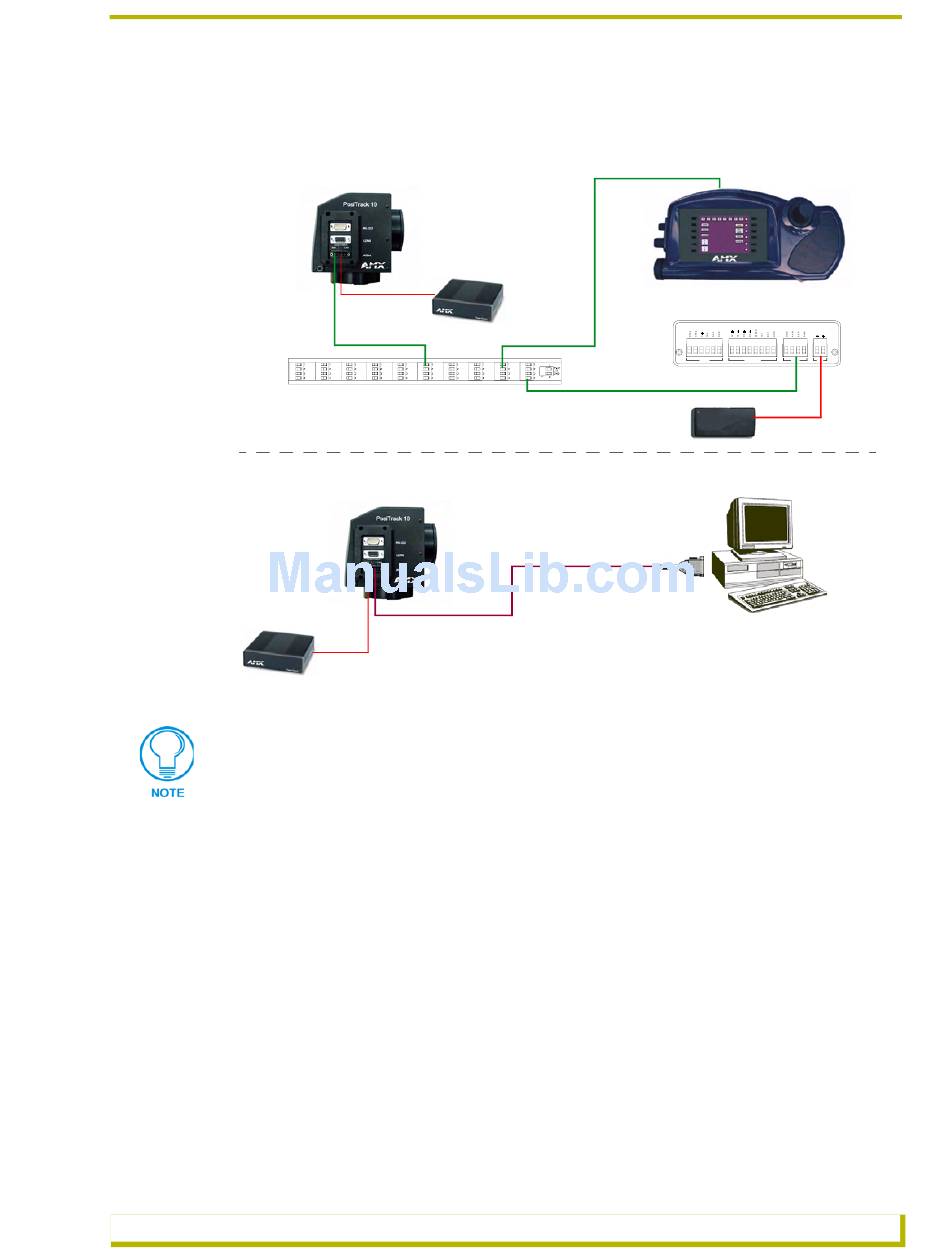

FIG. 2 shows a sample camera control application using the AXB-PT10.
AMX Local
Power Supply
FIG. 2 Sample AXB-PT10 camera product application
Use a separate power supply to power each PosiTrack unit. Power to the PosiTrack
unit is supplied from the external power supply to the unused power pin on the
PosiTrack unit's AXlink connector.
The AXB-PT10 unit requires a PSN2.8 or PSN6.5 power supply.
The AXB-PT15 and AXB-PT30 units require a PSN6.5 power supply.
AXB-PT10/15/30 PosiTrack Camera Controllers
Application #1 - AXlink
AMX AXB-PT10
AMX Local
Power Supply
PWR cable
AMX ABS (AXlink Bus Strip)
Application #2 - RS-232
AMX AXB-PT10
PWR cable
AMX AXB-EM232 (rear view)
AXlink
RS-232
AXlink
AMX PS2.8
Power Supply
Introduction
AMX AXP-PLV
12VDC
RS-232 / 422 AXlink PWR
PWR cable
PC or other
RS-232
controller
