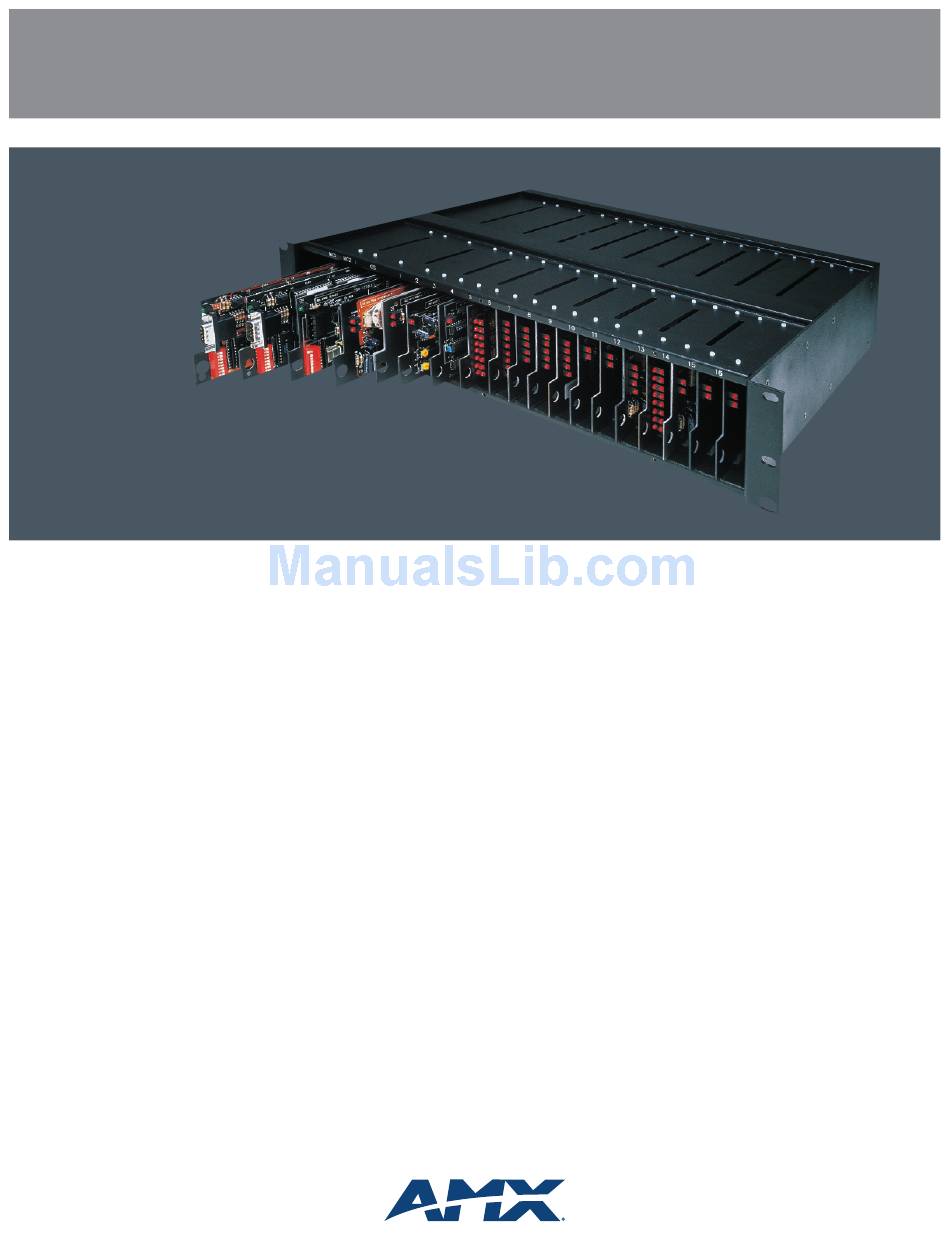

axcess cardframe
The Axcess CardFrame (AXF-M/S and AXF-S) is an ideal solution for
simplified system design, adaptation and support. Front-access card slots
hold up to two Enhanced System Master cards, one Server card, and up to
16 device-specific control cards.
The AXF-M/S Master CardFrame includes an AXC-EM Enhanced System
Master Card and acts as a central Axcess controller. A second AXC-EM
card can be used in the Master Card 2 slot, providing automatic backup of
the primary Master Card.
The AXF-S Server CardFrame acts as an AXLink Bus Controller, adding 16
control ports to any Axcess Central Controller.
Advertisement
Related Manuals for AMX AXF-S Master
Summary of Contents for AMX AXF-S Master
- Page 1 Master Card and acts as a central Axcess controller. A second AXC-EM card can be used in the Master Card 2 slot, providing automatic backup of the primary Master Card. The AXF-S Server CardFrame acts as an AXLink Bus Controller, adding 16 control ports to any Axcess Central Controller.
- Page 2 AXF-M/S MASTER & AXF-S SERVER (FG 701-K, FG702-K) • Enables flexible, modular system design, installation, and support • Accepts slide-in AXC control cards for removal or replacement without disturbing existing wiring • Provides viewing of LED status indicators on AXC cards to simplify system testing •...
