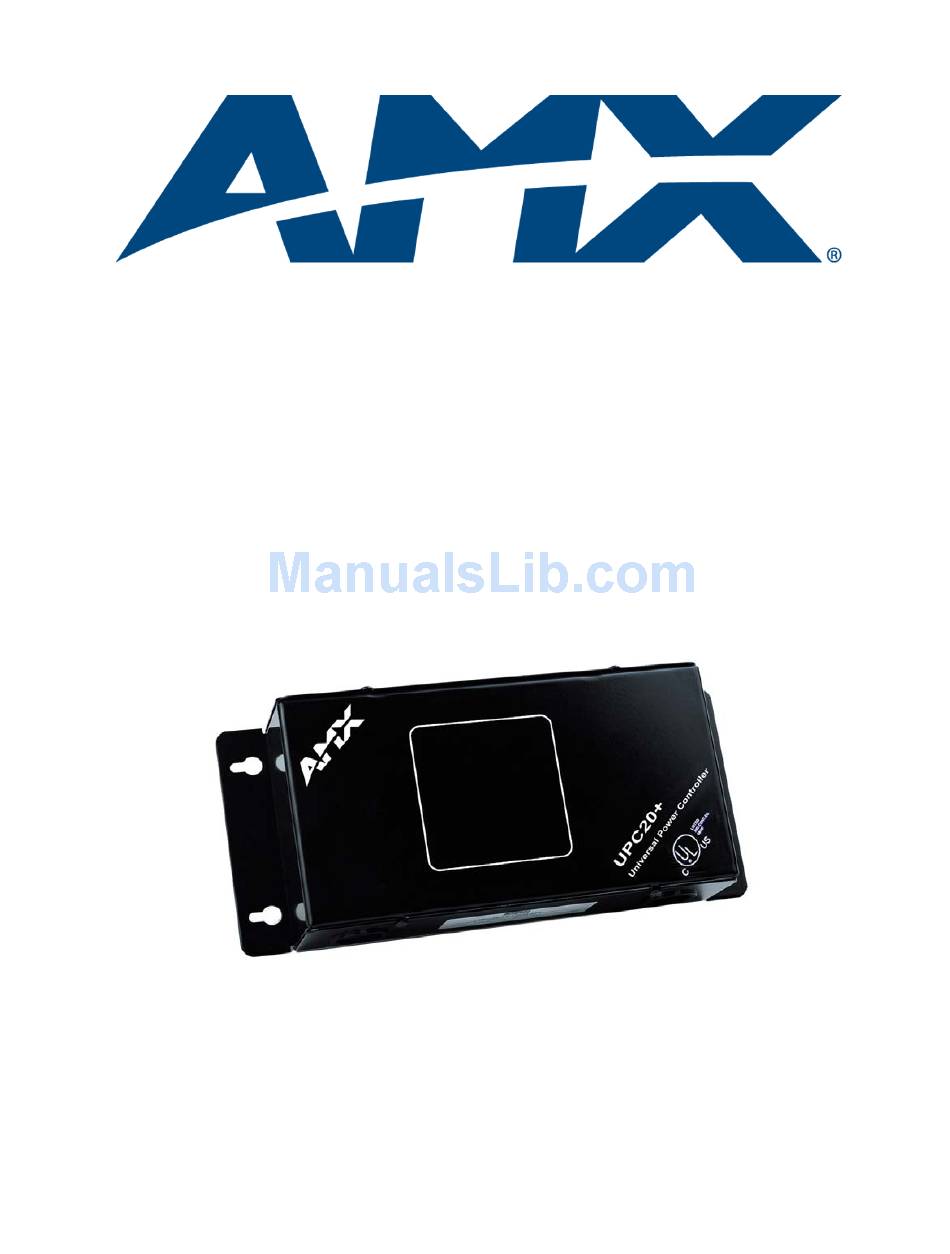

- Page 1 Operation/Reference Guide UPC20+ Universal Power Controller C o n t r o l S y s t e m A cc e s s o r i e s L a s t Re v is e d: 09 /1 2 /20 0 7...
- Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Upc20+ Wiring Requirements
UPC20+ Wiring Requirements In the United States, the UPC20+ must be wired by an authorized electrician in accordance with the National Electrical Code, ANSI/NFPA 70-1987, as well as all local codes. In the European community, the UPC20+ unit must be wired by an authorized elec- trician in accordance with all applicable European codes. -
Page 5: Table Of Contents
Table of Contents UPC20+ Wiring Requirements ...3 Product Information ...1 Specifications ... 3 Control Options Modes ... 4 Motor Control mode ... 4 Power Control mode ... 5 Remote Sensor Control mode ... 5 Channel codes (Remote Sensor mode)... 6 Installation ...7 P1 Terminal Connections ... - Page 6 Table of Contents UPC20+ Universal Power Controller...
-
Page 7: Product Information

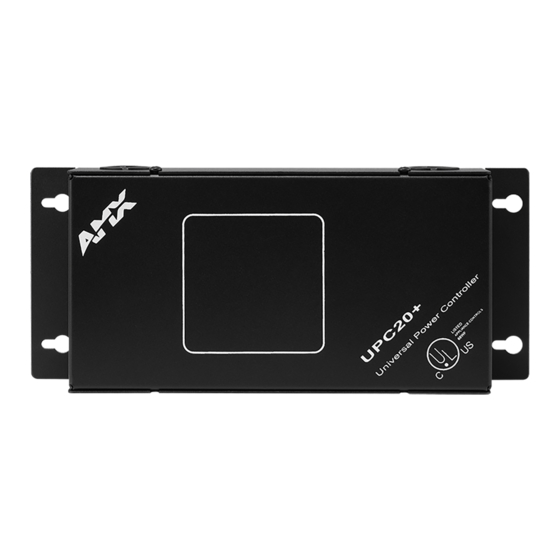

Low voltage contact-closures, open collector inputs or serial data from an AMX IR receiver enable control by simple wall panels, remote systems, or hand-held transmitters. A test switch with an LED indicator for each relay is provided for local control and status indication. - Page 8 Product Information IMPORTANT Power switch (115/230 VAC) DIP switch controls mode and function Low voltage and IR remote control connections FIG. 1 UPC20+ The UPC+ cover contains information on high voltage wiring, low voltage wiring, and DIP switch settings. CAUTION RISK OF ELECTRIC SHOCK - MORE THAN ONE DISCONNECT SWITCH MAY BE REQUIRED TO DE-ENERGIZE THE EQUIPMENT BEFORE SERVICING...
-
Page 9: Upc20+ Wiring Requirements
Specifications UPC20+ Specifications Power Power input (for control board) Power output per relay Maximum operating ambient temperature Approvals Includes Inputs Control Ports Input Power Switch (S1) High Voltage Terminal Block (P1) High voltage input and output wiring for motor or power control. Low voltage and Control Terminal Block (P2) Jumper JP1... -
Page 10: Control Options Modes
Product Information Control Options Modes ATTENTION INSTALLER FACTORY SET TO INOPERATIVE MODE (UNIT WILL NOT WORK UNTIL DIP SWITCHES ARE SET) SEE CHART ON LID TO SET DIP SWITCHES FOR ACTIVE MODE FIG. 2 UPC20+ inoperative mode warning label If UPC20+ is powered up when changes are made to Dip Switch settings, then power must be cycled before changes can take effect. -
Page 11: Power Control Mode
Remote Sensor Control mode The UPC20+ can also be controlled via the serial output from an AMX IR sensor. Remote sensor mode is selected by setting jumper JP1 to the "Remote" position (jumper on the left 2 pins), as shown in FIG. -
Page 12: Channel Codes (Remote Sensor Mode)
DIP Switch Settings for Remote Sensor Mode Sw. 1 Sw. 2 Channel codes (Remote Sensor mode) The table below lists the 5 AMX channel codes and their function in the UPC20+ when in Remote Sensor mode. Channel Codes and Functions Channel Function... -
Page 13: Installation
Installation P1 Terminal Connections Low voltage power (see the table below) for internal circuitry is provided from an on-board transformer, powered by an external 120 or 240 VAC source. An onboard switch is used to select input voltage. When using the UPC20+ for 277 VAC control, the on-board internal circuitry is powered by a separate 120/240 VAC line, or from an optional 12 VDC power supply. - Page 14 Installation UPC20+ Control Mode Functions for Inputs 1 and 2 Control S2 Switch Mode Setting Motor, Sin- On, On, Off, On Minimum gle Button Motor, 2/3 Off, Off, Off, On Minimum Button Motor, Off, On, Off, On Minimum Momentary Power, On, On, On, On Minimum Momentary Power,...
- Page 15 UPC20+ Control Mode Functions for Inputs 1 and 2 (Cont.) Control S2 Switch Mode Setting Power, 2 On, Off, Off, On Minimum Button Power, On, Off, On, On Minimum Momentary #1, Latch- ing #2 Power, Momentary #1, Latch- ing #2 UPC20+ Control Mode Functions for Inputs 3 and 4 Control Mode S2 Switch...
-
Page 16: High Voltage Wiring Options
Installation UPC20+ Control Mode Functions for Inputs 3 and 4 (Cont.) Control Mode S2 Switch Setting Power, Two Button On, Off, Off, On Minimum Power, Momen- On, Off, On, On Minimum tary #1, Latching Power, Latching On, Off, On, On Minimum #1, Momentary #2 High Voltage Wiring Options Single circuit 120/240 VAC... -
Page 17: Dual Circuit 277 Vac
Dual circuit 277 VAC Dual circuit connections provide power from 277 VAC for fluorescent ballasts (FIG. 6). Circuit board power is provided by a separate 120/240 VAC high voltage circuit, or 12 VDC connected to terminals 1 and 6 on the low voltage terminal block. For dual circuit 120/240 VAC operation, remove the short 12 AWG wire jumper. -
Page 18: Installing The Upc20
Installation Installing the UPC20+ To install the UPC20+ unit: 1. Mount the UPC20+ on a wall or solid surface in the location where it will be used; it can be mounted either horizontally or vertically. 2. Remove the cover. 3. Prepare terminal block P1. a. - Page 19 Installation UPC20+ Universal Power Controller...
- Page 21 ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
