Sample FrameVector facet

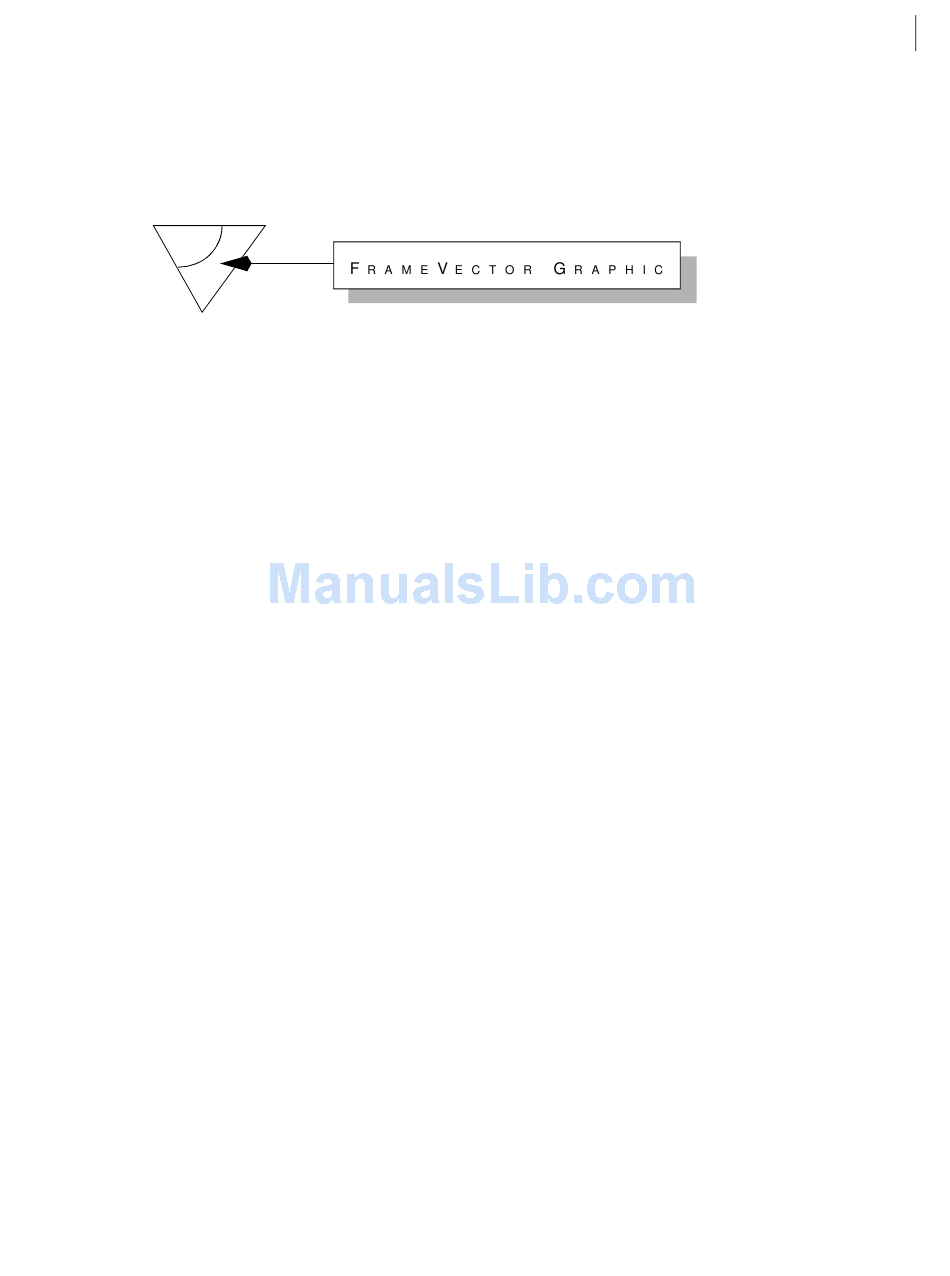

The sample FrameVector facet in this section describes the following illustration:
This illustration is composed of the following graphic objects:
A rectangle with no border and a gray fill
•
A polygon defined by three points, a black border, and no fill
•
A rectangle with a black border and a white fill
•
A text line with the text "FrameVector Graphic" in small caps
•
A polyline defined by two points and an arrow style head
•
An arc with a black border and no fill
•
Definition op codes for the FrameVector graphic
The example begins with the ASCII string . The characters indicate that the data that follows is in
hexadecimal format.
The following lines specify the FrameVector version (5.0) and the size (5" x 3", or 360 points by 216 points)
and position (0,0) of the FrameVector graphic:
&010000000150
&020000001000000000000000000168000000D80000
Since colors are not used in this example, the color op codes are not specified.
Specification of the rectangle shadow
The drop shadow of the rectangle is drawn first, since it appears behind the other graphic objects. The
rectangle has the following specifications:
The line width is 0.5 point.
•
&230000000400008000
The pen pattern is none (0F).
•
&21000000010F
The color is black.
•
&24000000080006426C61636B00
The line is solid (not dashed).
•
&260000000100
The fill pattern is grey (04).
•
