Operations in Detail
Assigning New Parameters to Faders or
the Joystick
Except in Edit mode, the parameter assignments of the
faders and joystick make up what we call a virtual page,
or V-Page. This is simply a convenient grouping of para-
meters to simplify operation, but you can group them any
way you find convenient.
There are two ways to assign new parameters to the
LARC2 controls:
• Assigning parameters from the V-Page
• Assigning parameters as an Edit option

The V-Page and Parameter Reassignment

• Press the EDIT key on the LARC2 control surface.
• Press the V-Page soft button. The screen (Fig.
4-38) shows the assignments for each of the eight
faders and the joystick's X and Y-axes.
• Use the Navigation Arrows to highlight the Type or
Parameter to change. (You can also select a
fader or joystick axis with the Numeric Keypad, but
you still have to navigate to the Type or
Parameter.)
• Make your selection by cycling through the avail-
able Types or Parameters with the +/– keys or
touch the fader of the desired parameter. The
types are: "None", "Algorithm", "Input", and
"Output". Some algorithms can have more than
50 parameters.
• The fader or joystick axis is now assigned to what-
ever parameter you've selected.

Using the Edit Algorithm Screen

This alternate method is a useful shortcut: If you're in the
midst of editing algorithms, inputs or outputs, it enables
you to quickly pick a parameter and assign it to a fader or
the joystick.
• Push the EDIT key, then the Algorithm soft button,
which brings up the Algorithm Edit screen. This
holds all the parameters for the current algorithm,
4-20

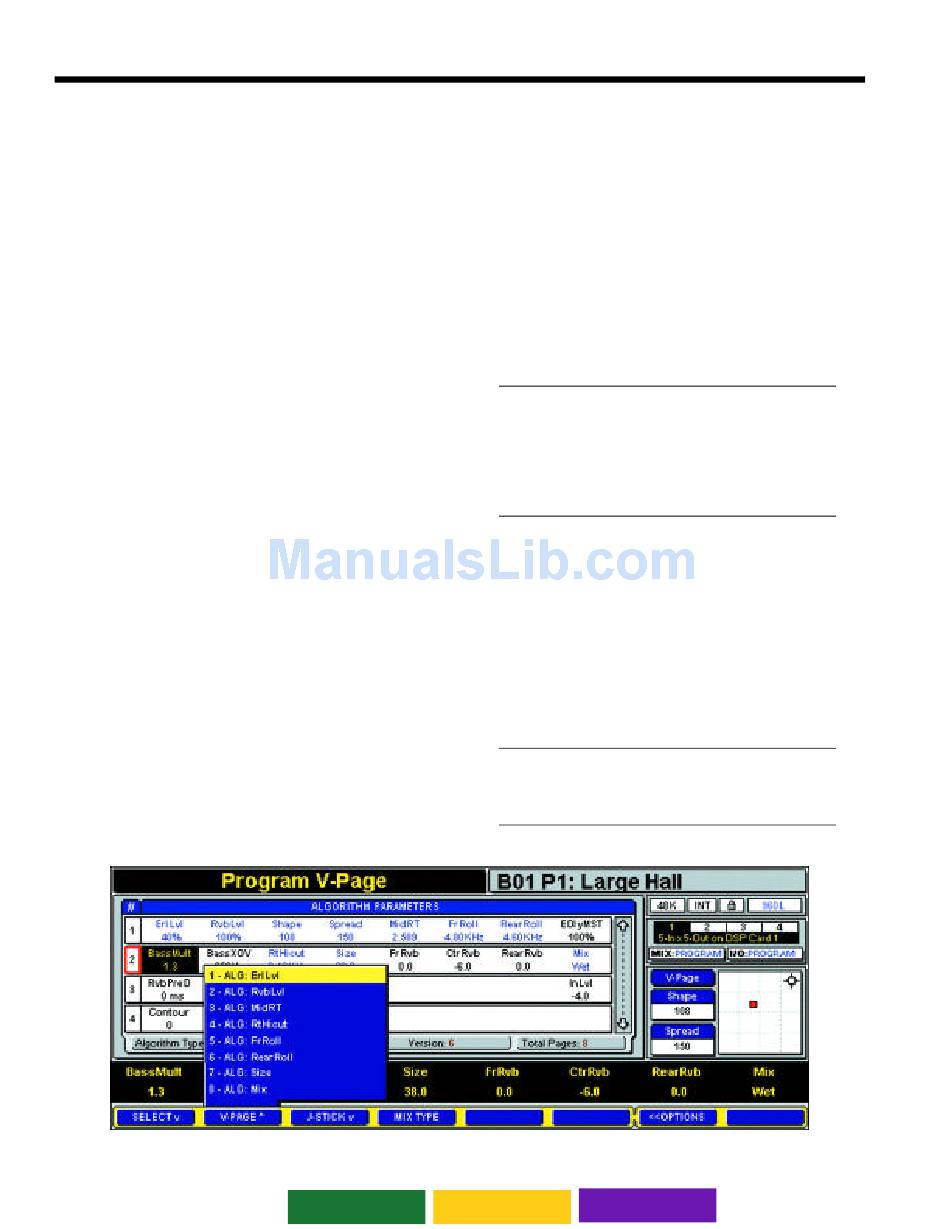

Figure 4-39 — Edit V-Page screen; programming faders
Home Next Page >>
in up to ten "pages" of up to eight parameters
apiece. (The highlighted down-arrow to the right
of these pages shows that there are more pages
below the screen; these pages can be reached
by scrolling with the Navigation Arrow keys – or, if
you know the number of the page you want,
entering that number on the Numeric Keypad.)
• Pick the parameter you need from this menu by
navigating to it , which will highlight it.
• Press the Options soft button. This changes the soft
buttons to Select (used for selecting algorithms),
V-Page (for assigning parameters to faders), and
J-Stick (for assigning parameters to the joystick),
and the soft-button background will change to
yellow. See Fig. 4-39.
Note:
In Edit mode, the parameters and settings on the
Scribble Strip are not a V-Page. They are the
selected algorithm edit page — the row whose
number is highlighted in larger characters for
easier reading.
On the Main Operating Display, parameters assigned to
the V-Page appear in blue; all others are in black.
FROM THE EDIT (ALGORITHM, INPUTS, OUTPUTS)
OPTIONS SCREEN:
• Press the V-Page soft button to view a numbered
list of the eight faders and their assigned parame-
ters (Fig. 4-39). To assign your newly selected para-
meter to a fader, type the fader's number on the
Numeric Keypad, or touch the desired fader.
Note:
You must already have selected a parameter
before you get to this screen.
