Lexicon 960L Owner's Manual page 40

Operations in Detail
THE STEREO CASCADE 1 CONFIGURATION

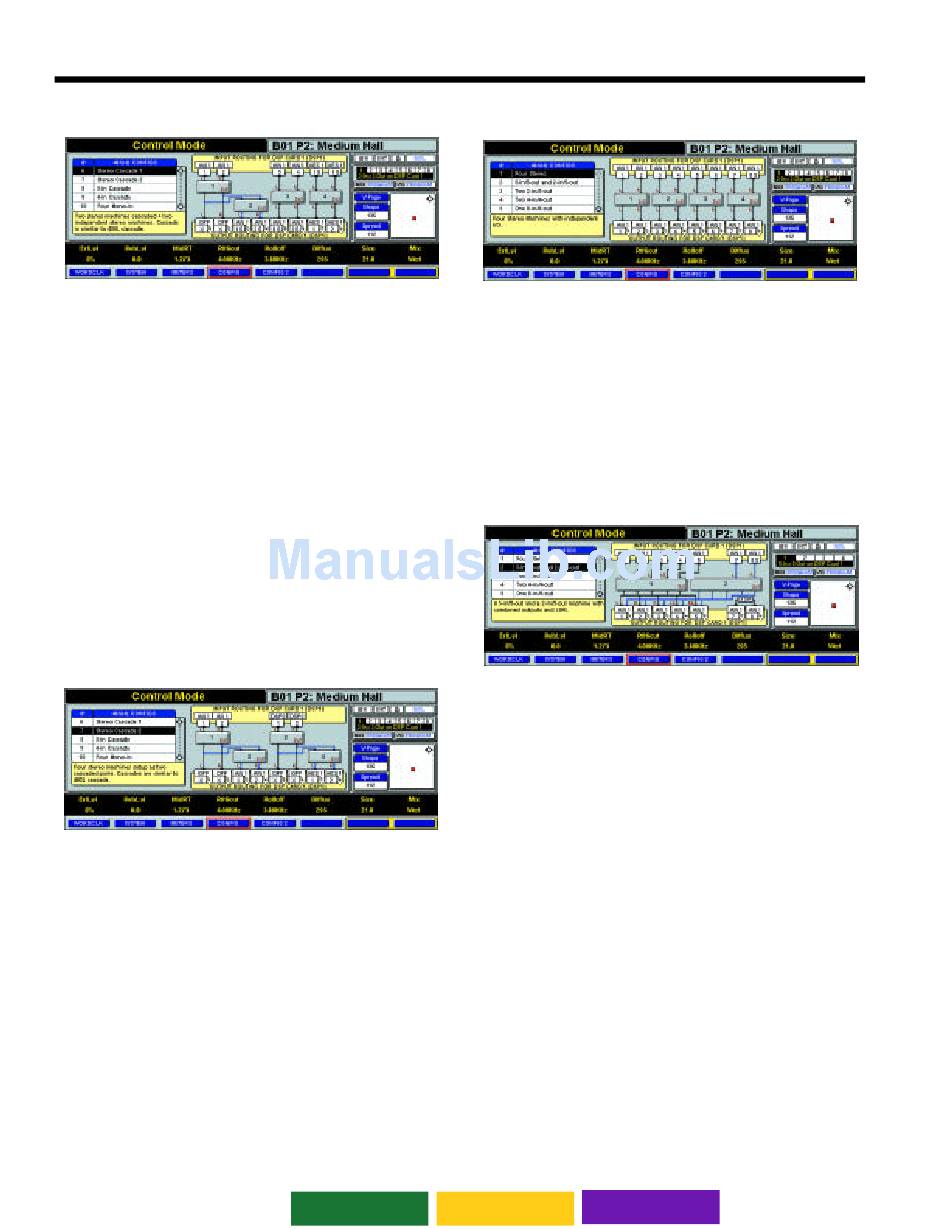

Figure 4-9 — 44.1/48kHz Stereo Cascade 1 Configuration:
four machines available
With the "Stereo Cascade 1" configuration loaded, the
DSP card is partitioned into four independent stereo
machines. Machines one and two are cascaded where
the outputs of machine one, as well as being routable to
any physical output, are fed directly into the inputs of the
second machine. The cascade of machine one and two
is similar to the cascade configuration of the 480L. The
third and the fourth machines are Stereo-In and Stereo-
Out.
In a cascaded configuration, the unpanned outputs of
the first machine are fed into the inputs of the second
machine at full level. That is why the second machine
does not show any controls on its input page.
THE DUAL STEREO CASCADE CONFIGURATION
Figure 4-10 — 44.1/48kHz Dual Stereo Cascade
Configuration: four machines available
With the "Dual Stereo Cascade" configuration loaded, the
DSP card is partitioned into four independent stereo
machines. Machines one and two are cascaded where
the outputs of machine one, as well as being routable to
any physical output, are fed directly into the inputs of the
second machine. Machines three and four are cascaded
also. This configuration is similar to the cascade configu-
ration of the 480L.
In a cascaded configuration, the unpanned outputs of
the first machine are fed into the inputs of the second
machine at full level. That is why the second machine
does not show any controls on its input page.
4-8
THE FOUR STEREO CONFIGURATION
Figure 4-11 — 44.1/48kHz Four Stereo Configuration:
With the "Four Stereo" configuration loaded, the DSP car d
is partitioned into four independent stereo machines.
Each machine has independent stereo inputs and inde-
pendent stereo outputs.
THE FIVE-IN / FIVE-OUT AND TWO-IN / FIVE-OUT
CONFIGURATION
Figure 4-12 — 44.1/48kHz 5-In/5-Out and 2-In/5-Out
With the "5-In/5-Out and 2-In/5-Out" configuration loaded,
the DSP card is partitioned into two independent multi-
channel surround machines. The first machine has five
inputs and five outputs, and the second machine has two
inputs and five outputs. The inputs of the two machines
are discrete and the outputs are combined. The output
levels of each machine can be adjusted on the
machine's output page. Also there is an LtRt mix of the
five outputs available. This LtRt mix is a simplified matrix
that is compatible with Lexicon's Logic7™ format as well
as other standard encoding schemes.
