Lexicon 960L Owner's Manual page 42

Operations in Detail
THE FOUR-IN / FOUR-OUT CONFIGURATION

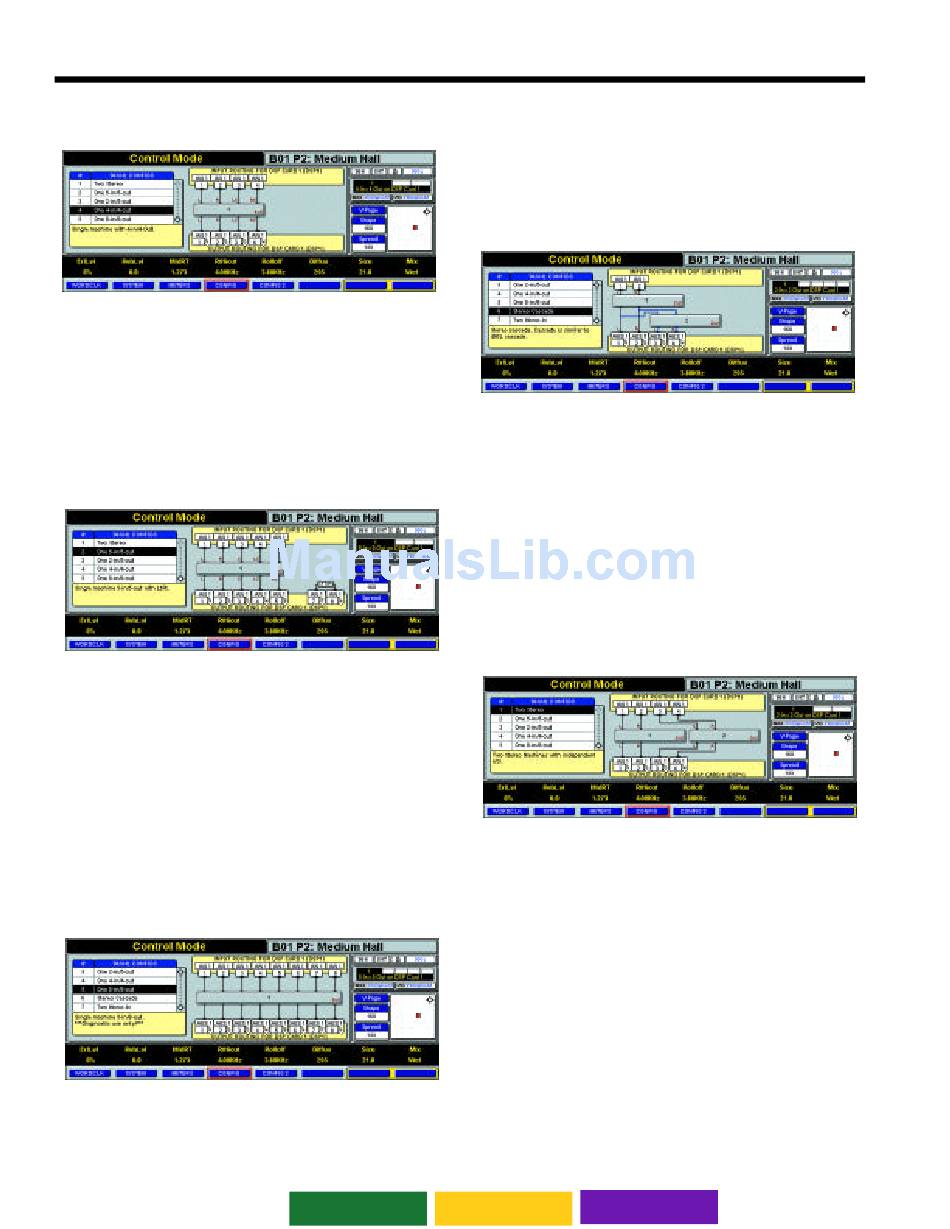

Figure 4-17 — 88.2/96kHz 4-In/4-Out Configuration:
one machine available
With the "One 4-In/4-Out" configuration loaded, the DSP
c a rd is partitioned into one multi-channel surro u n d
machine. The machine has four inputs and four outputs.
THE FIVE-IN / FIVE-OUT CONFIGURATION
Figure 4-18 — 88.2/96kHz 5-In/5-Out Configuration:
one machine available
With the "One 5-In/5-Out" configuration loaded, the DSP
c a rd is partitioned into one multi-channel surro u n d
machine. The machine has five inputs and five outputs.
Also there is an LtRt mix of the five outputs available. This
LtRt mix is a simplified matrix that is compatible with
Lexicon's Logic7 format as well as other standard encod-
ing schemes.
THE EIGHT-IN / EIGHT-OUT CONFIGURATION
Figure 4-19 — 88.2/96kHz 8-In/8-Out Configuration:
one machine available
4-10
With the "One 8-In/8-Out" configuration loaded, the DSP
c a rd is partitioned into one eight-input/eight-output
machine. Currently this machine is used for diagnostic pur-
poses only.
THE STEREO CASCADE 1 CONFIGURATION
With the "Stereo Cascade 1" configuration loaded, the
DSP card is partitioned into two independent stere o
machines. Machines one and two are cascaded where
the outputs of machine one, as well as being routable to
any physical output, are fed directly into the inputs of the
second machine. This configuration is similar to the cas-
cade configuration of the 480L.
THE DUAL STEREO CONFIGURATION
Figure 4-21 — 88.2/96KHz Dual Stereo Configuration:
With the "Dual Stereo" configuration loaded, the DSP card
is partitioned into two independent stereo machines.
Each machine has independent stereo inputs and inde-
pendent stereo outputs.
Home Next Page >>
Figure 4-20 — 88.2/96kHz Stereo Cascade 1
Configuration: two machines available
two machines available
