BEHIND THE FRONT PANEL

DSP Card Slots

The 960L comes standard with one Digital Signal Processor
(DSP) card and support for an optional second DSP card.
IMPORTANT:
Do not plug any cards into these slots except
those made by Lexicon for the 960L.
Card slots for DSP cards. The cards can be removed for
service, when instructed by Lexicon Customer Service.
Floppy drive for
saving registers
1-6

CPU Card

NLX-type montherboard.
CAUTION:
The motherboard has a lithium battery. Lithium is a
hazardous substance. The battery should be
replaced only by qualified service personnel, and
disposed of properly.

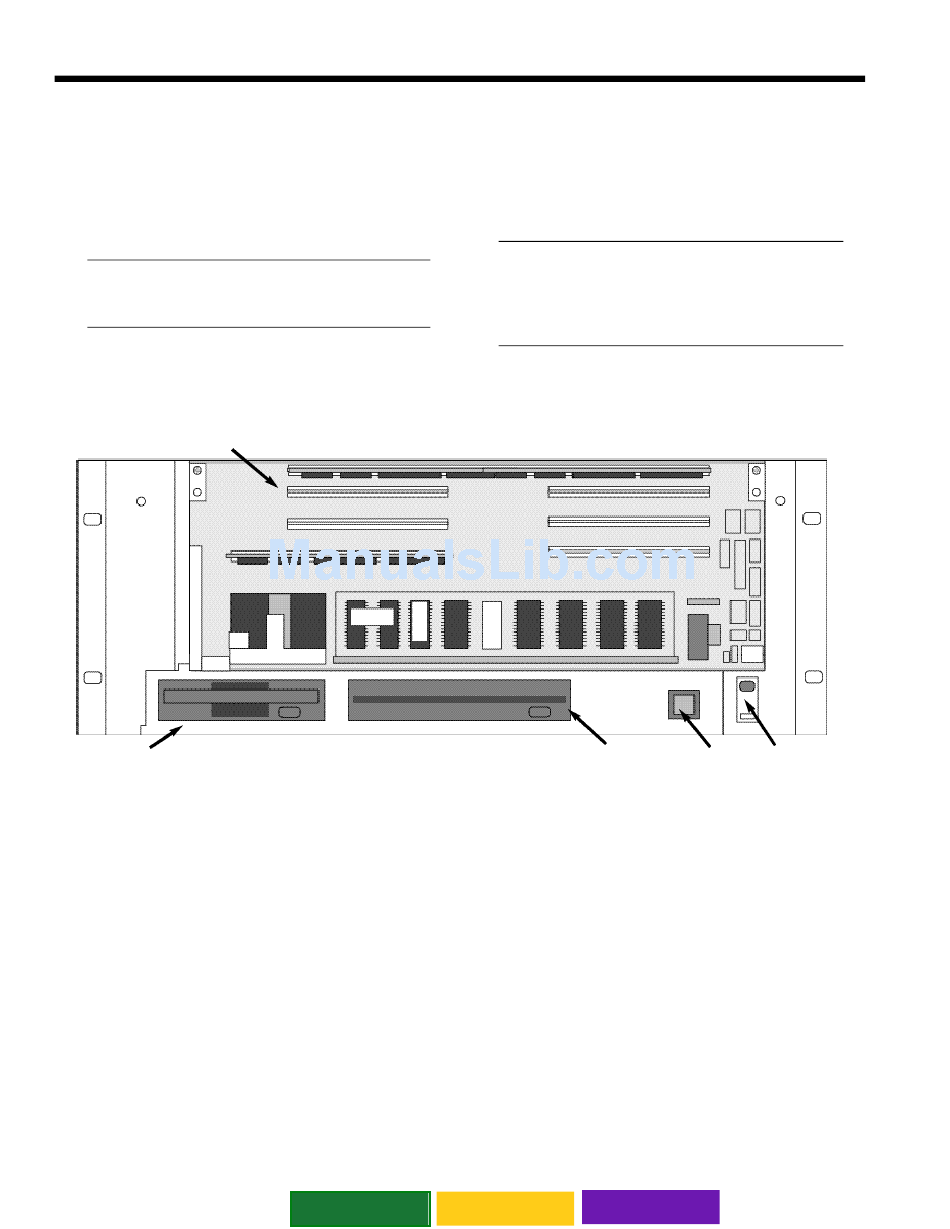

Figure 1-3 — Front Panel, Open
