960L

Editing Inputs and Outputs

The LARC2's joystick can be used to place any input or
output signals anywhere in the soundfield. Input and out-
put levels can also be set using the faders.

Input Panning

To edit inputs, press the EDIT key, then the Inputs soft but-
ton, to bring up the screen shown in Fig. 4-33.
You can see from the System Status Display at the upper
right that four machines are in use and you are editing the
inputs for Machine 1. The Main Operating Display shows
that the current machine has five inputs and where each
input signal is positioned in the soundfield.
controlled by faders

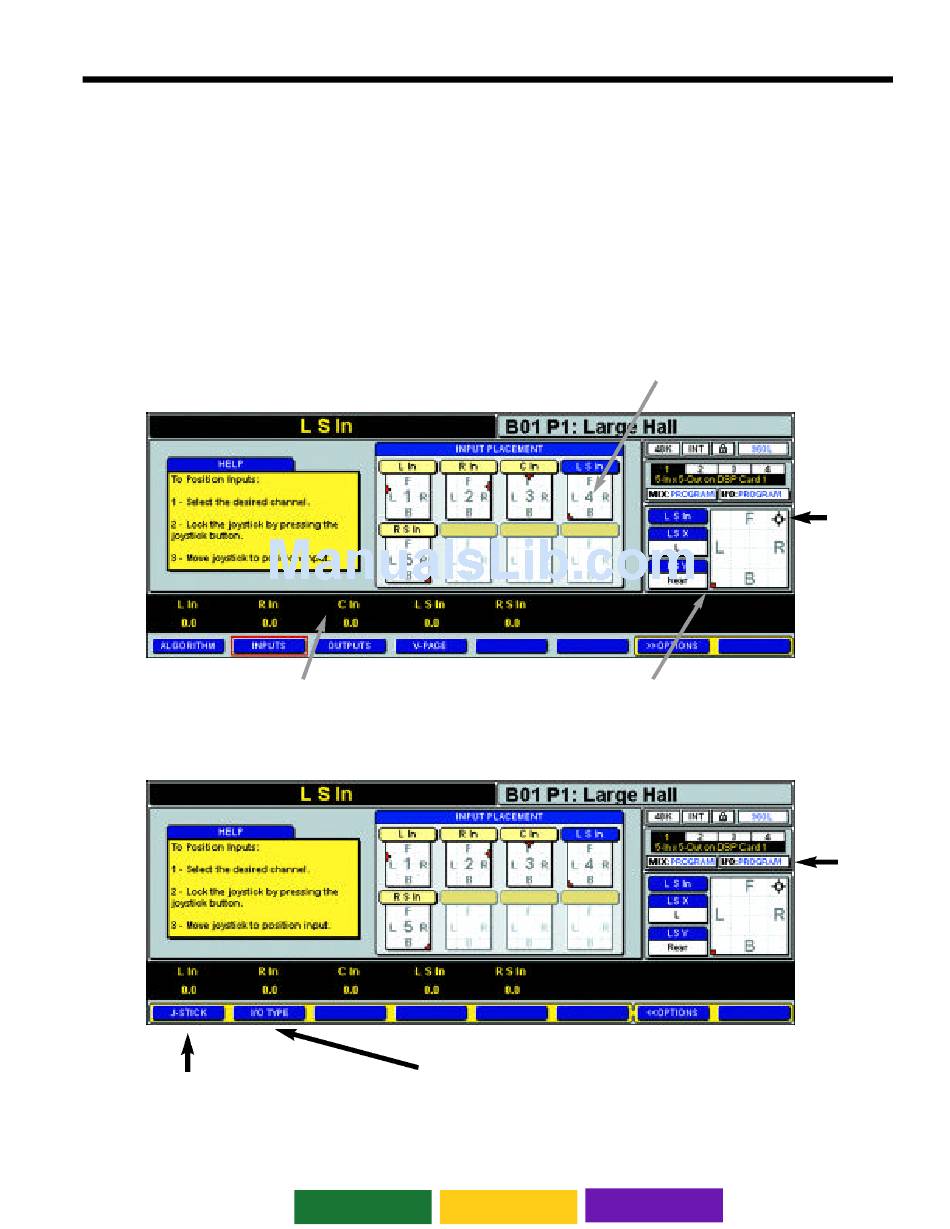

Figure 4-33 — Editing screen for input panning and levels, with joystick key off
Assigns current selection to V-Page joystick.
In this case pressing the J-Stick soft button
will assign LS In to the V-Page joystick.
Figure 4-34 — The Left Surround input, channel 4, is currently selected
Input levels, now
Toggles I/O Type between machine and program
for the current machine. Current state is displayed
Home
In Fig. 4-34, the Left Surround input, channel 4, is currently
selected, so its header is highlighted and its pan position is
indicated on the Joystick Map. The JOYSTICK key is off, so
the joystick has not captured the parameter — note the
separate positions of the cursor and the setting dot.
When the I/O Type is set to Program, the I/O settings con-
tained in the Program or Register will be used, when
loaded. When the I/O Type is set to Machine, the current
settings, I/O pan positions and levels will be used for every
Program and Register loaded essentially overiding settings
in the Programs or Registers when loaded.
Parameter currently controlled by joy -
stick (not captured — JOYSTICK key off)
in the Machine Status Display
<< Go Back
Next Page >>
Operations in Detail
Input currently
mapped to joystick
Joystick
position
Machine
Display
Status
4-17
