IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

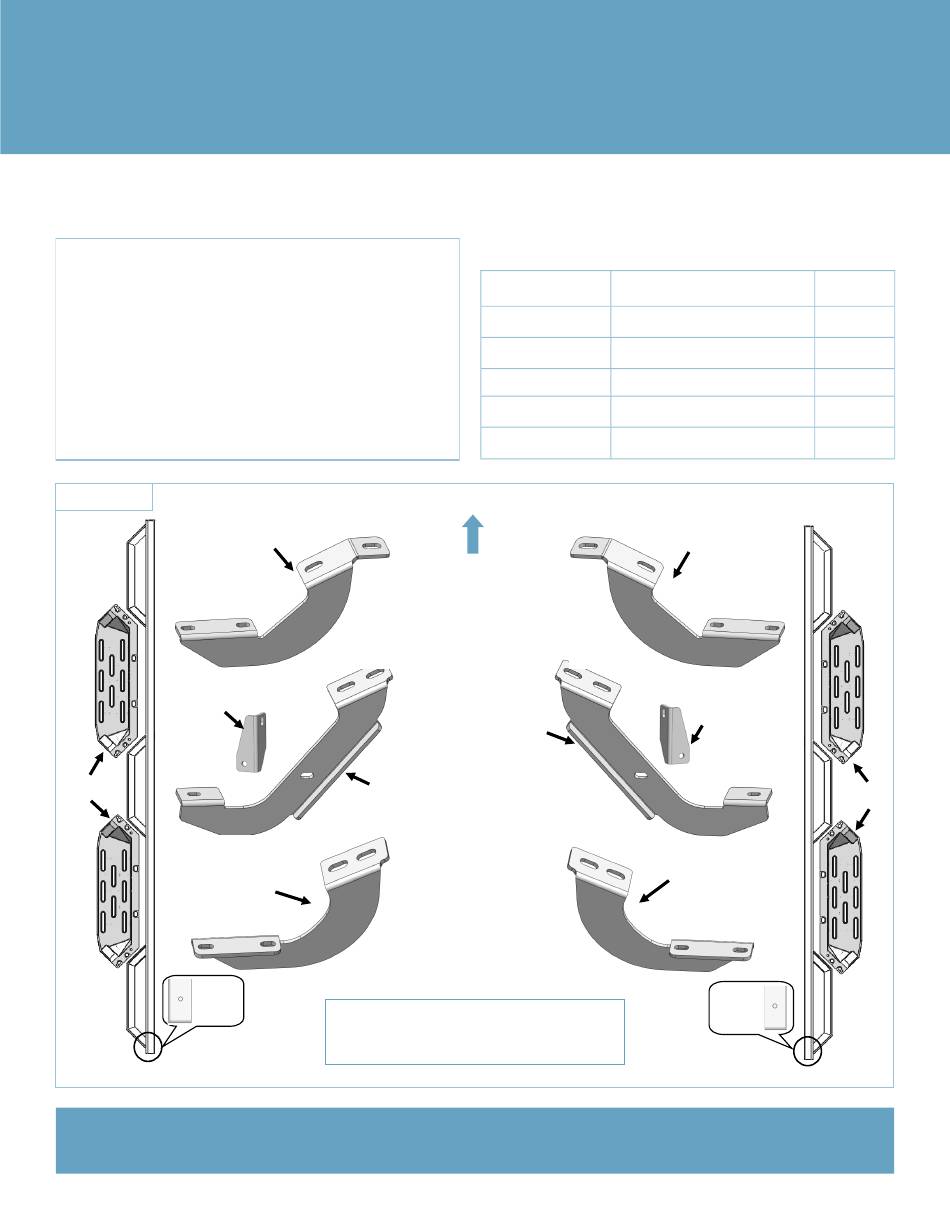

PART LIST
Driver Front Mounting
Bracket (DFM)
Driver Center Support
Bracket (DCS)
Pedal
Driver Rear
Mounting Bracket
(DRM)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Cen-
ter Mount-
ing Bracket
(DCM)
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
1
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front
Mounting Bracket
Passenger
Center
Mounting
Bracket
(PCM)
PART#: IA-N097H
Required
6-7
√
16-18
√
31-32
X
56-58
X
92-94
X
(PFM)
Passenger
Center Support
Bracket (PCS)
Passenger Rear
Mounting Bracket
(PRM)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
Pedal
Advertisement
Related Manuals for iArmor EDGE IA-N097H
Summary of Contents for iArmor EDGE IA-N097H
- Page 1 ® IARMOR EDGE™ PART#: IA-N097H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-30mm Hex Bolts M6 Large Flat Washers M8 Large Flat Washers M6X1 Nylon Lock Nuts M8 Lock Washers M8X1.25-20 T-Bolts M8 Hex Nuts M8 Plastic Washers...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Install (4) Pedals onto the step bars with (24) M8X1.25-25mm Hex Bolts, (24) M8 Large Flat Washers and (24) M8 Lock Washers.
- Page 4 ® STEP 4 STEP 6 Move to passenger side center mounting location, (Figs 1 & 4). Install the Passenger Center Mounting Bracket on the vehicle with (2) M8X1.25-30 Hex Bolts, (2) M8 Lock Washers and (2) NOTE: The Tundra has (4) mounting locations along the M8 Large Flat Washers, (Fig 6).
- Page 5 ® Insert the T-bolt Rear with M8 Plastic Thread down the M8 Washer in the Plastic Washer slot on the step against the step bar bar and rotate the T-bolt to 90° !! (2) M8X1.25-30 Hex Bolts (2) M8 Large Flat Washers...
- Page 6 ® (5) M8 Plastic Washers (5) M8X1.25-20mm T-Bolts (5) M8 Large Flat Washers (5) M8 Nylon Lock Nuts Front Bottom View (1) M6X1-20mm Square Head Bolt (1) M6 Large Flat Washer (1) M6 Nylon Lock Nut (Fig 12) M6 Square...
