IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

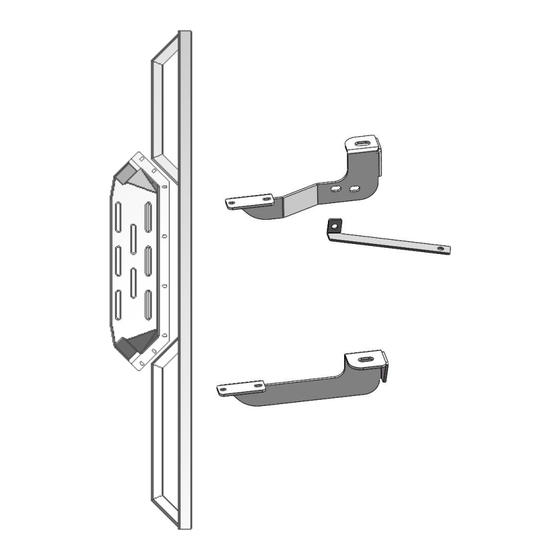

PART LIST
Driver Front Mounting
Bracket (DFM)
Step Pad
Driver Side Step Bar
iArmor
Front
Driver Front Support
Bracket (DFS)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Mount-
ing Bracket (PFM)
Passenger Front Support
Bracket (PFS)
Passenger Rear Mounting
Bracket (PRM)
1
PART#: IA-N007
Required
6-7
√
16-18
X
31-32
√
56-58
X
92-94
X
Step Pad
Passenger Side Step Bar
Rev. 20210801
Advertisement
Table of Contents
Related Manuals for iArmor EDGE IA-N007
Summary of Contents for iArmor EDGE IA-N007
- Page 1 ® IARMOR EDGE™ PART#: IA-N007 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M10 Lock Washer M10X1.5-30mm Hex M10 Nut Plate M10X1.5 Hex Nut M10 Flat Washer Bolt M6 Large Flat M6X1 Nylon M6X1-20mm T-Bolt Washer Lock Nut The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not STEP 2 responsible for any damage caused by the installation.
- Page 3 ® Front STEP 5 Attach the flat end of the Passenger Front Support Bracket Factory Body (PFS) to the installed M10 Nut Plate with (1) M10X1.5-30mm Mount Bolt Hex Bolt, (1) M10 Flat Washer and (1) M10 Lock Washer, (Fig 4 &...
- Page 4 ® (1) M10X1.5-30mm Hex Bolt Rear (1) M10 Lock Washer (1) M10 Flat Washers Factory Body Front Mount Bolt (Fig 7) Passenger Rear Mounting Bracket Installation (Fig 5) Passenger Front Support Bracket Installation STEP 7 (1) M10X1.5-30mm Hex Bolt...
- Page 5 ® Front (4) M6X1-20 T-Bolts (4) M6 Large Flat Washers (4) M6X1 Nylon Lock Nuts Warning: Install the T-bolt on the step bar and rotate it to 90 degrees!!! (Fig 8) Passenger Side Step Bar Installed Attention Do periodic inspections to the installation to make sure that all hardware is secure and tight.
