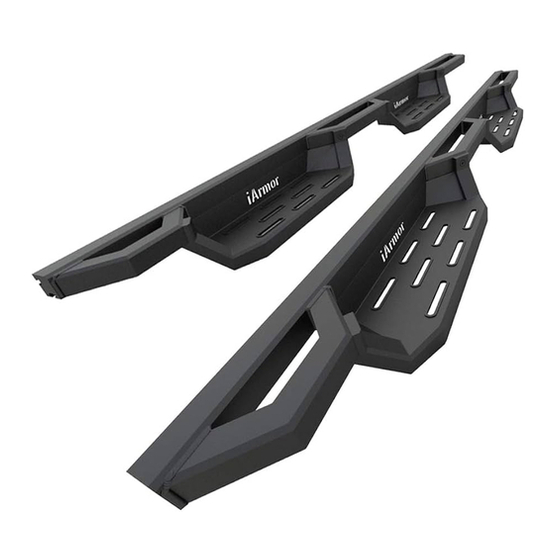

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING/TRIMMING NOT REQUIRED
PART LIST
Driver Front/Center
Mounting Bracket
(DFM/DCM)
(DFM/DCM)
Pedal
Driver Rear
Support
Bracket
(DRS)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Rear
Mounting
Bracket (DRM)
Mounting Bracket
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front/
Center
Mounting Bracket
(PFM/PCM)
Passenger Rear
(PRM)
1
PART#: IA-N258H
Required
6-7
√
16-18
√
31-32
X
56-58
X
92-94
X
(PFM/PCM)
Pedal
Passenger
Rear Sup-
port Brack-
et (PRS)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
Advertisement
Related Manuals for iArmor EDGE IA-N258H
Summary of Contents for iArmor EDGE IA-N258H
- Page 1 ® IARMOR EDGE™ PART#: IA-N258H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-30 Hex Bolts M6 Large Flat Washers M8 Large Flat Washers M6X1 Nylon Lock Nuts M8X1.25 Nylon Lock Nuts M8X1.25-20 T-Bolts M6X1-20 Square Head Bolt M8 Plastic Washers...
- Page 3 ® STEP 3 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Select (1) Passenger Front Mounting Bracket (PFM/PCM). Attach the Bracket to the (3) factory studs with (3) M8 Large Flat Washers and (3) M8X1.25 Nylon Lock Nuts, (Fig 2).
- Page 4 ® STEP 5 (3) M8 Large Flat Washers (3) M8X1.25 Nylon Lock Nuts Move to the Passenger Rear Mounting position (Fig 4), attach the Passenger Rear Support Bracket (PRS) to the Passenger Rear Mounting Bracket (PRM) with (1) M8X1.25-30mm Hex Bolt, (2) M8 Large Flat Washers and (1) M8X1.25 Nylon Lock...
- Page 5 ® STEP 9 Level and adjust the assembled Step Bar properly and tighten all hardware. Insert the T-bolt with M8 Plastic Thread down the M8 Move to the other side of the vehicle. Repeat Steps 2-8 for the Washer in the Plastic Washer other Side Step Bar installation.
- Page 6 ® (5) M8 Plastic Washers (5) M8X1.25-20mm T-Bolts (5) M8 Large Flat Washers (5) M8 Nylon Lock Nuts Front Bottom View (Fig 10) M6 Square (1) M6X1-20mm Square Head Bolt Bolt in the Channel (1) M6 Large Flat Washer...
