IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

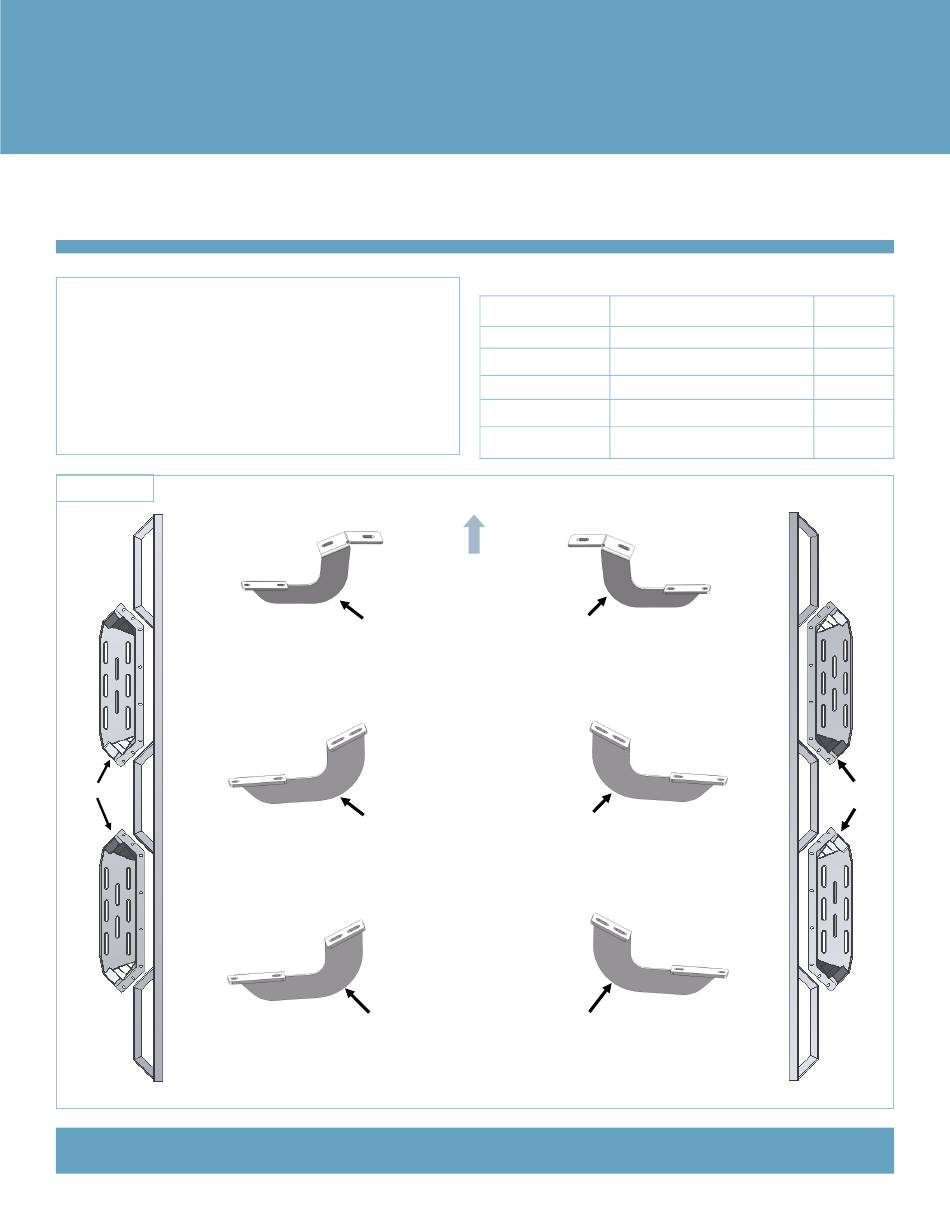

PART LIST
Step Pad
Driver Side Step Bar
iArmor
Front
Driver Front Mounting
Bracket (DFM)
Driver Center
Mounting Bracket
(DCM/DRM)
Driver Rear Mounting
Bracket (DCM/DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Mount-
ing Bracket (PFM)
Passenger Center
Mounting Bracket
(PCM/PRM)
Passenger Rear Mounting
Bracket (PCM/PRM)
1
PART#: IA-N058
Required
6-7
√
16-18
√
31-32
X
56-58
X
92-94
X
Step Pad
Passenger Side Step Bar
Rev. 20210801
Advertisement
Related Manuals for iArmor EDGE IA-N058
Summary of Contents for iArmor EDGE IA-N058
- Page 1 ® IARMOR EDGE™ PART#: IA-N058 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M6 Large Flat M6 Nylon Lock M6X1-20 T-Bolt M8X1.25-30 Hex M8 Lock Washer M8 Flat Washer Washer Bolt The instruction here is for your reference only. We strongly STEP 2 recommend the professional installer for best result. We are not responsible for any damage caused by the installation.
- Page 3 ® (2) M8X1.25-30 Hex Bolts (2) M8 Lock Washers (2) M8 Flat Washers Front (2) M8X1.25-30 Hex Bolt Front (2) M8 Flat Washer (2) M8 Lock Washer (Fig 2) Driver Front Mounting Bracket Installed (Fig 2) Driver Front Mounting Bracket Installed...
- Page 4 ® Front (6) M6X1-20 T-Bolts (6) M6 Large Flat Washers (6) M6 Nylon Lock Nuts Warning: Install the T-bolt on the step bar and rotate it to 90 degrees!!! (Fig 5) Driver Side Step Bar Installation Customer Support: info@iarmorauto.com...
