IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

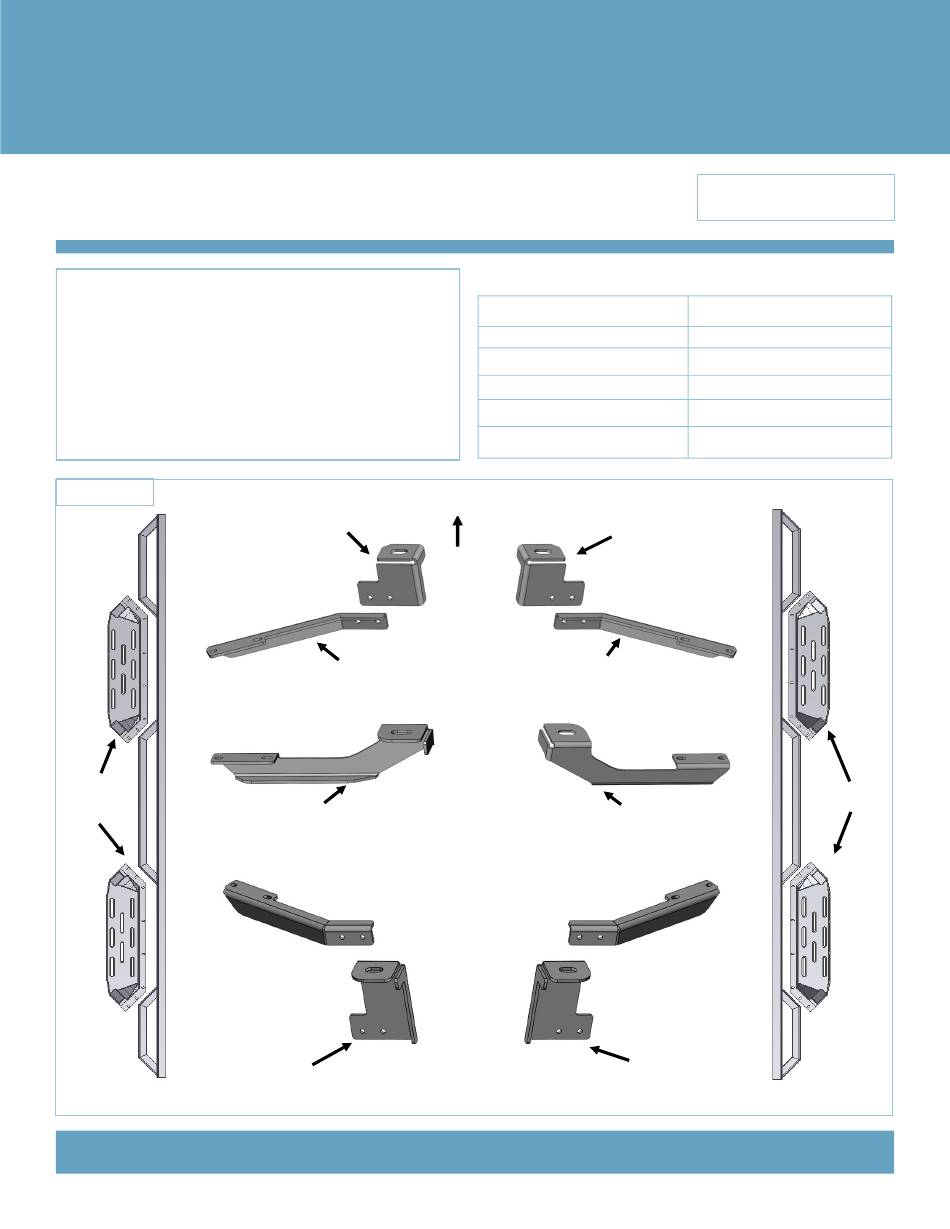

PART LIST
Step Pad
Driver Rear Mounting
Bracket (DRM)
Driver Side Step Bar
iArmor
Driver Front Mounting
Bracket (DFM)
Driver Front Bar Brack-
et (DFB/PRB)
Driver Center Mounting
Bracket (DCM/PCM)
PFB/DRB
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Passenger Front Mount-
Front
ing Bracket (PFM)
Passenger Front Bar
Bracket (PFB/DRB)
Passenger Center Mounting
Bracket (DCM/PCM)
DFB/PRB
Passenger Rear Mount-
1
®
PART#: IA-N001
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
ing Bracket (PRM)
Passenger Side Step Bar
Rev. 20200901
