IARMOR EDGE™

BEFORE INSTALLATION

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED

PART LIST

Driver Front
Mounting
Bracket (DFM)
Driver
Center
Support
Bracket
(DCS)
Pedal
Driver Rear
Mounting
Bracket
(DRM)
Drain
Hole at
Bottom

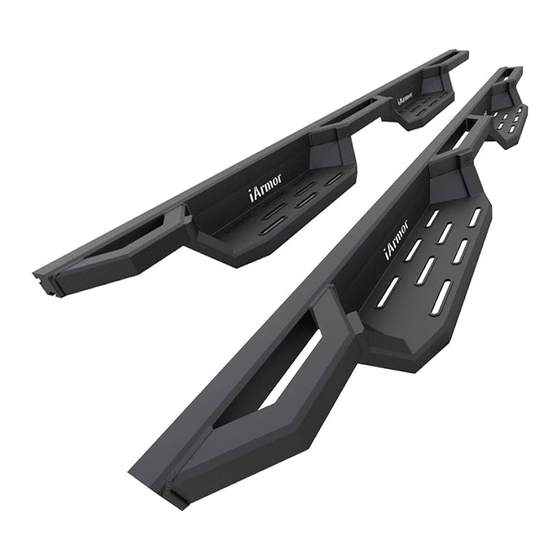

Driver Side Step Bar
iArmor
Driver Center
Mounting
Bracket (DCM)
Note:
Step bars are NOT interchangeable. Make sure drain holes at
the bottom will be located at the rear direction of the step bars.
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger
Center Mount-
ing Bracket
(PCM)
1
®
PART#: IA-N060H
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Front
Mounting Bracket
(PFM)
Passenger
Center
Support
Bracket
(PCS)
Passenger
Rear Mount-
ing Bracket
(PRM)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
Required
X
X
X
Pedal
