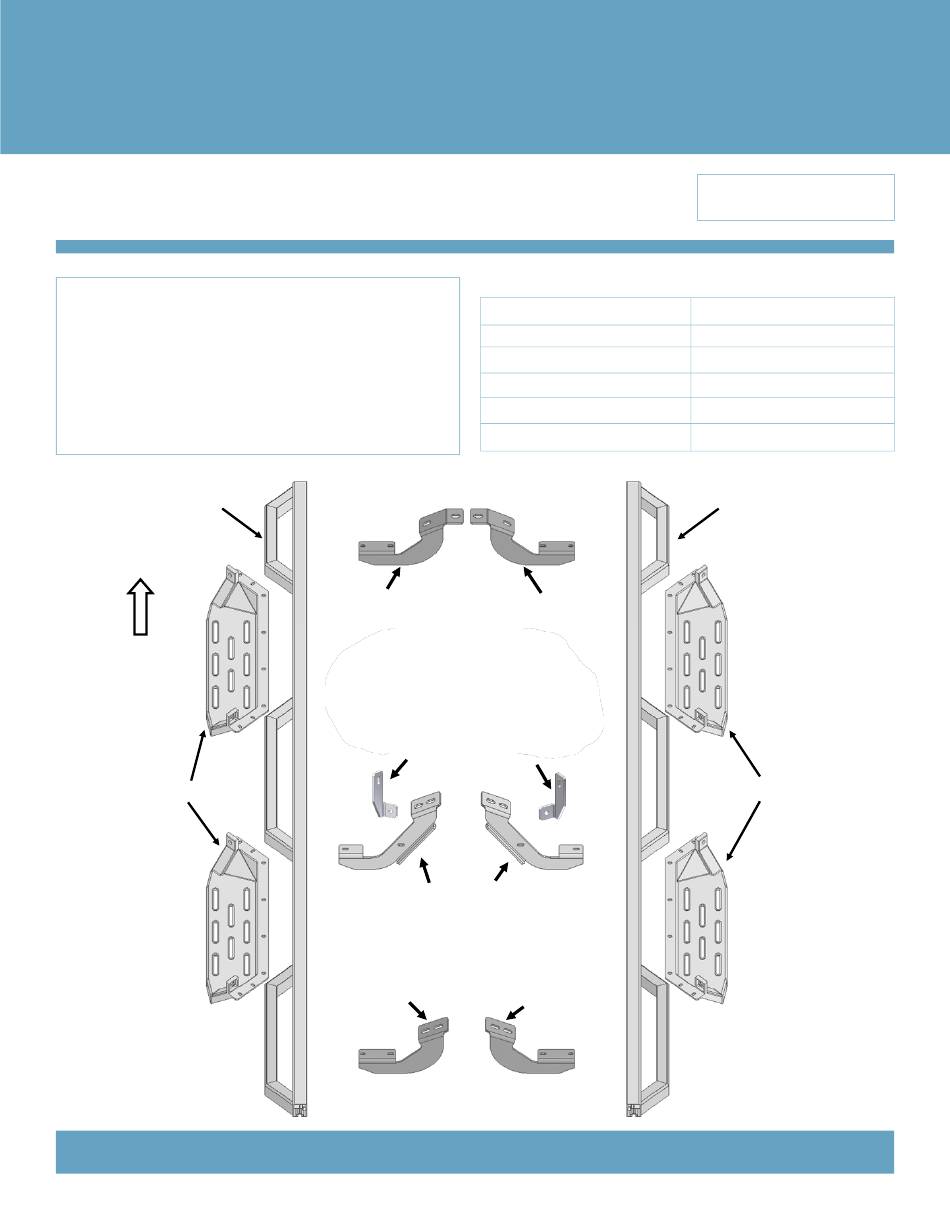

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

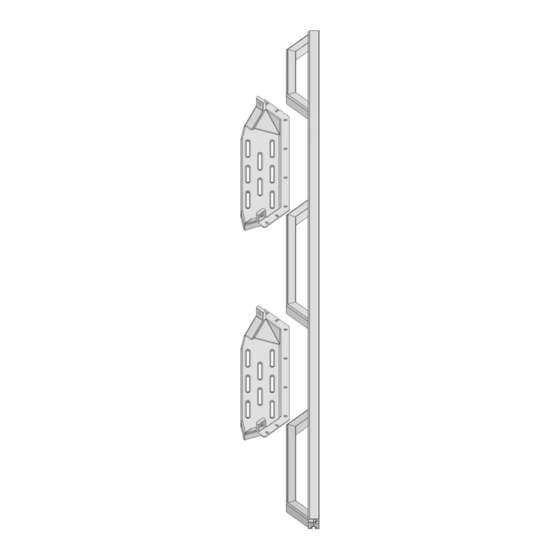

Driver Side Step Bar
Front
Step Pad
iArmor
Driver Front
Mounting Bracket
(DFM)
Driver Center Support
Brackets (DCS)
Driver Center
Mounting Bracket
(DCM)
Driver Rear Mount-
ing Brackets (DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Passenger Front
Mounting Bracket
(PFM)
Passenger Center Sup-
port Bracket (PCS)
Passenger Center
Mounting Bracket
(PCM)
Passenger Rear Mount-
ing Bracket (PRM)
1
PART#: IA-N098
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
Step Pad
Rev. 20200701
Advertisement
Table of Contents
Related Manuals for iArmor EDGE IA-N098
Summary of Contents for iArmor EDGE IA-N098
- Page 1 ® IARMOR EDGE™ PART#: IA-N098 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 16-18 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 10mm 31-32 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® X 40 X 44 X 44 M6X1-20 Flat M6X1-20 M6X1-20 M6 Nylon M6 Flat Sunk Bolt Square Head Lock Nut Washer T-Bolt Bolt X 14 X 16 X 12 M8X1.25-30 M8 Lock M8X1.25 Hex M8 Flat Washer Hex Bolt Washer The instruction here is for your reference only.
- Page 3 ® STEP 5 STEP 3 Select the Driver front Mounting Bracket (DFM), (Fig 2). At- Move to the next mounting location; Install the Assembled Driver Center Mounting Bracket, with (2) M8X1.25-30 Hex tach the Bracket to the vehicle using the included (2) M8X1.25 Bolt, (2) M8 Flat Washer and (2) M8 Lock Washer, (Fig 5 &...
- Page 4 ® STEP 8 Level and adjust the Assembled Step Bar as desired and tighten all hardware. Rear STEP 9 (Fig 7) Driver Side Rear Mounting Location (2) M8X1.25-30 Hex Bolts Rear Repeat Steps 2—8 for passenger side Assembled Step Bar...
