IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

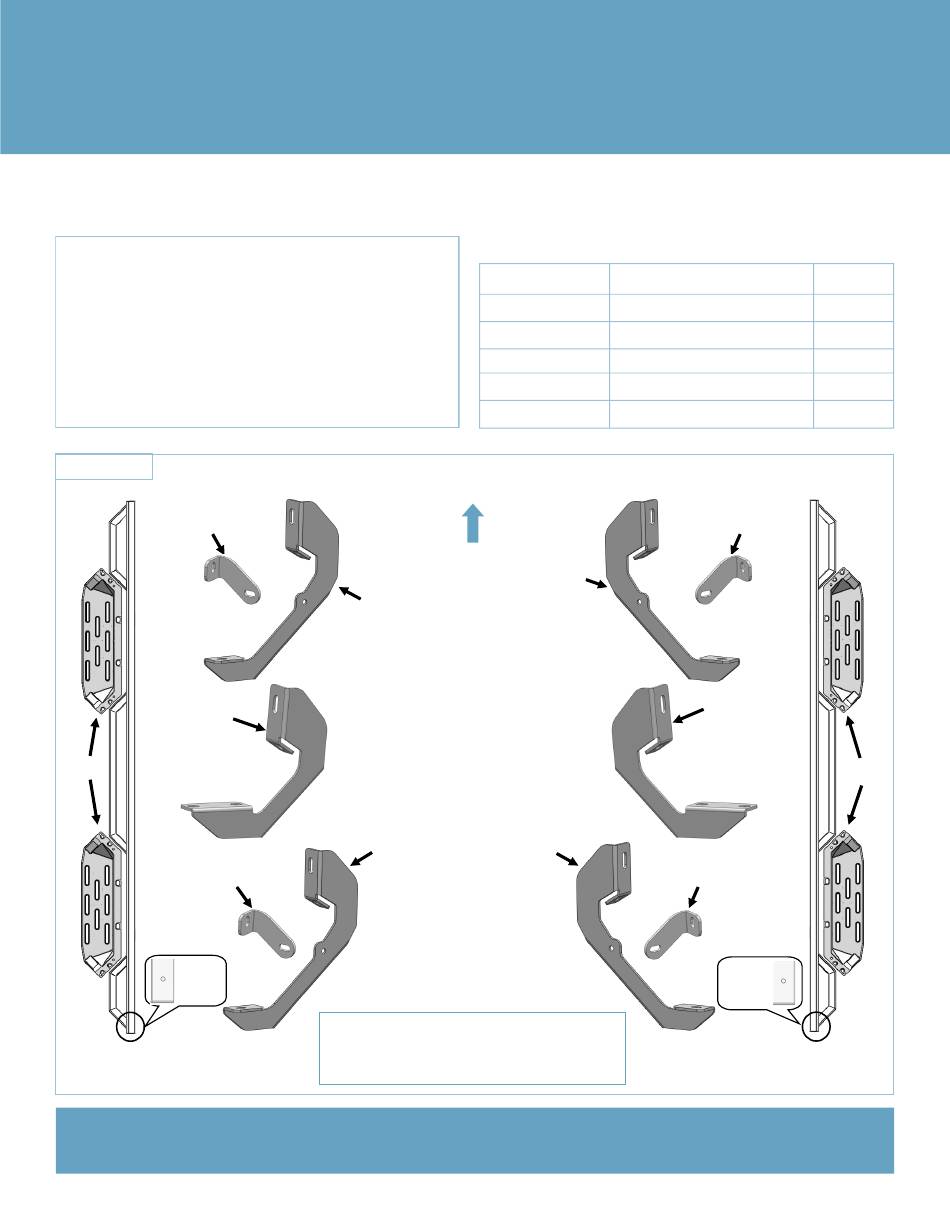

PART LIST
Driver Front/Rear
Support Bracket
(DFS/DRS)
Driver Center
Mounting
Bracket (DCM)
Pedal
(DFS/DRS)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Passenger Front/Rear
Driver Front/Rear
Mounting Bracket
(DFM/DRM)
(DFM/DRM)
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
1
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Mounting Bracket
(PFM/PRM)
(PFM/PRM)
PART#: IA-N044H
Required
6-7
√
16-18
√
31-32
√
56-58
X
92-94
X
Passenger
Front/Rear
Support Bracket
(PFS/PRS)
Passenger
Center
Mounting
Bracket (PCM)
Pedal
(PFS/PRS)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
Advertisement
Related Manuals for iArmor EDGE IA-N044H
Summary of Contents for iArmor EDGE IA-N044H
- Page 1 ® IARMOR EDGE™ PART#: IA-N044H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M10X1.5-25mm Hex Bolts M8 Clip Nuts M10 Flat Washers M8X1.25 Nylon Lock Nuts M10 Lock Washers M6X1-20 Square Head Bolts M10 Hex Nuts M6 Large Flat Washers M8X1.25-25 Hex Bolts...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Install (4) Pedals onto the step bars with (24) M8X1.25-25mm...
- Page 4 ® (1) M8 Large Flat Washer PFM/PRM (1) M8 Lock Washer M8 Plastic Washer (1) M8X1.25-25mm Hex Bolt M8X1.25-20 T-Bolt PFS/PRS (Fig 5) Thread (1) M8 Plastic Washer on each T-Bolt Before In- serting into the slot !!! (1) M10X1.5-25mm Hex Bolt...
- Page 5 ® STEP 7 Attention Do periodic inspections to the installation to make sure Level and adjust the assembled Step Bar properly and tighten that all hardware is secure and tight. all hardware. In order to protect your bars/boards, please use mild Move to the other side of the vehicle.
