iArmor EDGE IA-N002 Quick Start Manual

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING IS REQUIRED
*TRIMMING NOT REQUIRED
PART LIST
Driver Front Mounting
Bracket (DFM)
Driver Center Support
Bracket (DCS/PCS)
Step Pad

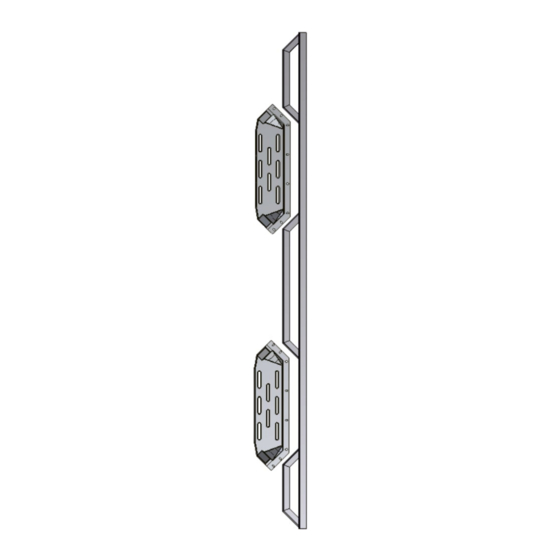

Driver Side Step Bar
iArmor
Front
Passenger Center Support
Driver Center Mounting
Bracket (DCM)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Mount-
ing Bracket (PFM)
Passenger Center Mount-
ing Bracket (PCM)
Bracket (DCS/PCS)
Passenger Rear Mount-
ing Bracket (PRM)
1
PART#: IA-N002
Required
6-7 √
16-18
√
31-32
√
56-58
X
92-94
X
Step Pad
Passenger Side Step Bar
Rev. 20210801
