IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING IS REQUIRED
*TRIMMING NOT REQUIRED

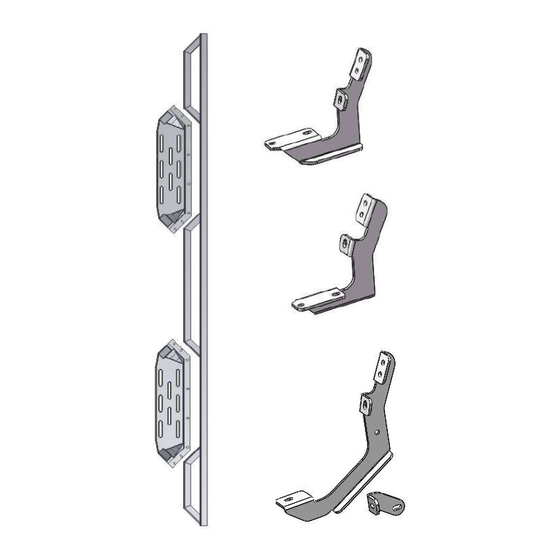

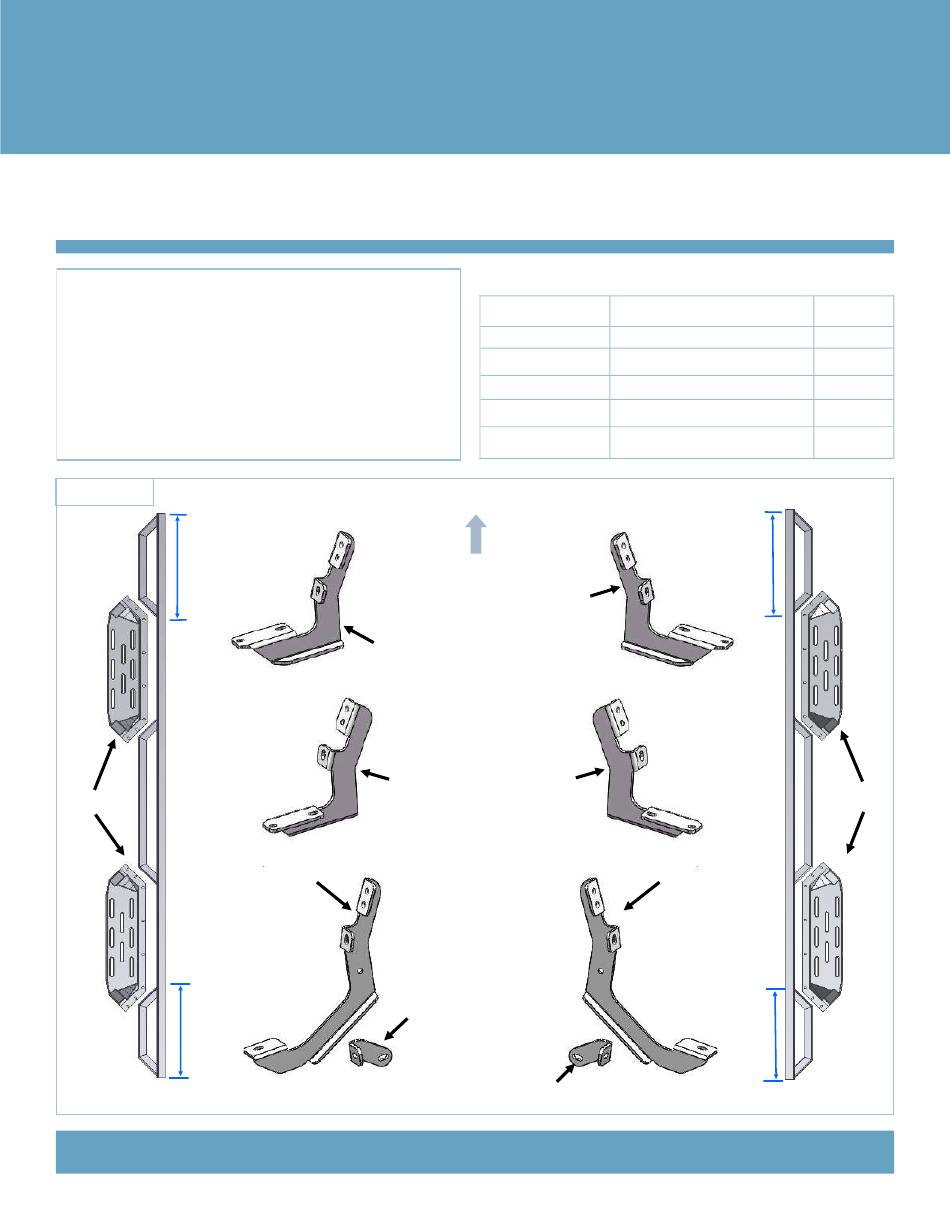

PART LIST
13.6"
Step Pad
Driver Rear Mounting
Bracket (DRM)
9.7"
Driver Side Step Bar
iArmor
Passenger Front/Driver Center
Mounting Bracket (PFM/DCM)
Driver Front/Passenger Center
Mounting Bracket (DFM/PCM)
PFM/DCM
Driver Rear Support
Bracket (DRS)
Passenger Rear Support
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
DFM/PCM
Passenger Rear Mounting
Bracket (PRS)
1
®
PART#: IA-N054
6-7
16-18
31-32
56-58
92-94
13.6"
Bracket (PRM)
9.7"
Passenger Side Step Bar
Rev. 20230701
Required
√
√
X
X
X
Step Pad
Advertisement
Related Manuals for iArmor EDGE IA-N054
Summary of Contents for iArmor EDGE IA-N054
- Page 1 ® IARMOR EDGE™ PART#: IA-N054 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M8 Large Flat M8X1.25-20mm M8X1.25-25mm M8X1.25 Nylon ST6.3-25 Hex Self Tapping Washer Hex Bolt Hex Bolt Lock Nut Screws M6X1-20mm M6 Large Flat M6X1 Nylon M6X1-20mm T Square Head Bolt Lock Nut Washer - Bolt The instruction here is for your reference only. We strongly recommend the professional installer for best result.
- Page 3 ® (Fig 1) Driver Side Mounting Locations Pictured (2) ST6.3-25mm Hex Self Tapping Screws STEP 5 Select (1) Driver Rear Mounting Bracket (DRM) and (1) Driver Rear Support Bracket (DRS), assembly with (1) M8X1.25- 25mm Hex Bolts, (2) M8 Large Flat Washers and (1) M8X1.25 Front Nylon Lock Nut, (Fig 3).
- Page 4 ® STEP 6 STEP 8 Next, repeat Step 3 to attach the Assembled Driver Rear Move to the passenger side of the vehicle. Repeat Steps 2-7 Bracket to the vehicle. Do not fully tighten at this time. to install passenger side step bar.
