IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY BE-
FORE STARTING INSTALLATION. ASSISTANCE IS REC-
OMMENDED. THANK YOU FOR CHOOSING OUR PROD-
UCT!
*ROCKER PANEL MOUNT
*CUTTING MAYBE REQUIRED

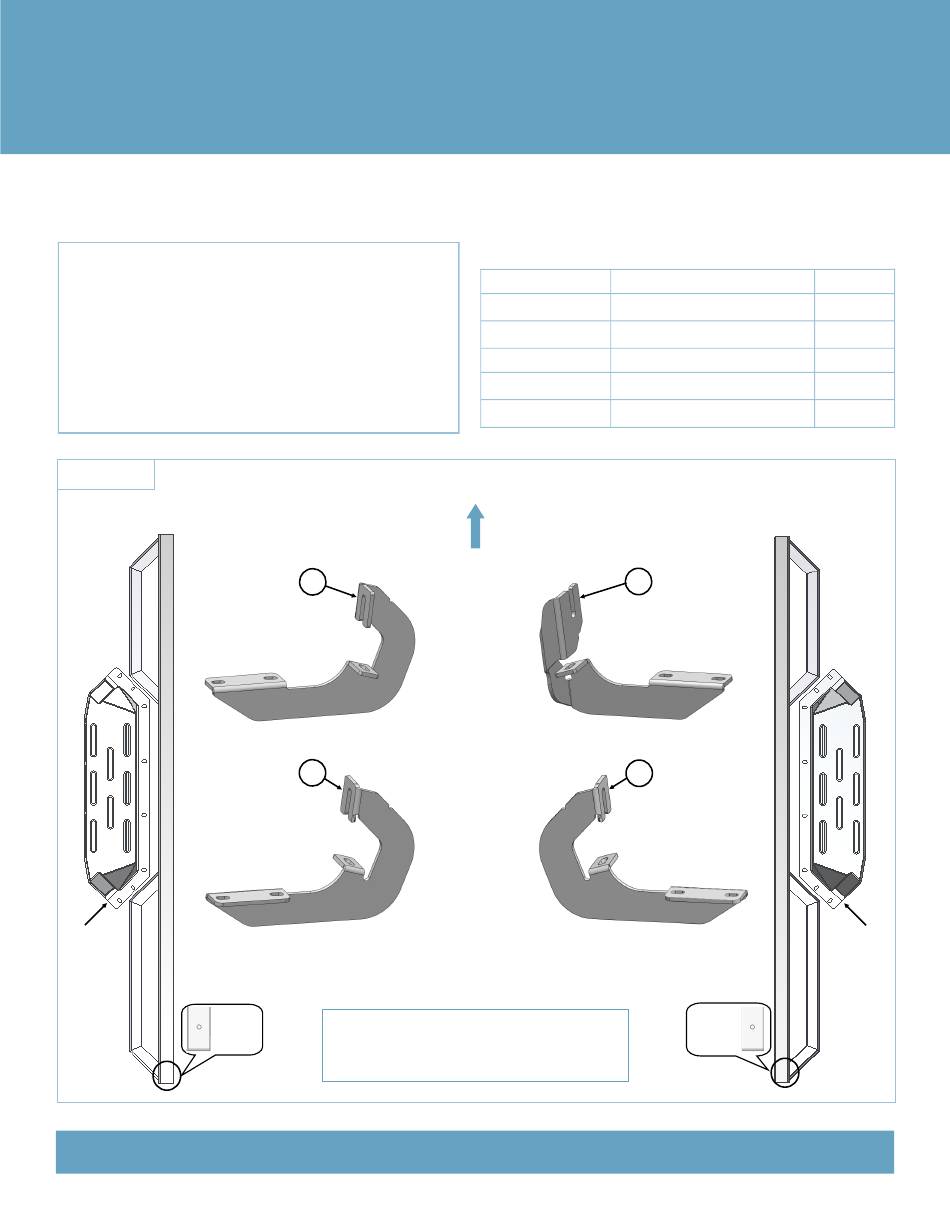

PART LIST
Driver Side Step Bar
Pedal
Drain
Hole at
Bottom
iArmor
Front
1#
2#
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
3#
1#
1
PART#: IA-N196H
Required
6-7
X
16-18
√
31-32
X
56-58
X
92-94
X
Passenger Side Step Bar
Pedal
Drain
Hole at
Bottom
Rev. 20221201
Advertisement
Related Manuals for iArmor EDGE IA-N196H
Summary of Contents for iArmor EDGE IA-N196H
- Page 1 ® IARMOR EDGE™ PART#: IA-N196H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BE- FORE STARTING INSTALLATION. ASSISTANCE IS REC- 16-18 √ OMMENDED. THANK YOU FOR CHOOSING OUR PROD-...
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8 Lock Washers Driver Front / Passenger Rear Mounting Brackets Driver Rear Mounting Bracket M8 Clip Nuts Passenger Front Mounting Bracket M8X1.25-20 T Bolts M8X1.25-25mm Hex Bolts...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not Front responsible for any damage caused by the installation. STEP 1 (Fig 1) Driver Side Mounting Locations Install (2) Pedals onto the step bars with (12) M8X1.25-25mm...
- Page 4 ® STEP 4 Factory 8mm threaded insert in body panel Select (1) Driver Front Mounting Bracket. Attach bracket to the driver side front mounting location with (2) M8X1.25-25mm Hex Bolts, (2) M8 Lock Washers and (2) M8 Large Flat Washers, (Figs 5-6).
- Page 5 ® STEP 5 Move to the Driver Side Rear Mounting Location, Repeat Step 4 to attach Driver Rear Mounting Bracket, (Fig 7). Do not fully tighten hardware at this time. Insert the T-bolt Thread down the M8 with M8 Plastic...
- Page 6 ® (Fig 10) Driver Side Step Bar Installation (4) M8 Plastic Washers (4) M8X1.25-20mm T-Bolts (4) M8 Large Flat Washers (4) M8 Nylon Lock Nuts Front Bottom View IMPORTANT: If tank is full, it will be very heavy, and assis- tance is highly recommended to avoid injury or damage to the vehicle or the tank.
- Page 7 ® STEP 10 Front Select the Passenger Front Mounting Bracket: Secure the mounting bracket to the body panel: a. For models with threaded insert in body panel: Attach the mounting bracket to the body panel with (1) M8X1.25 Remove (2) factory bolts...
- Page 8 ® STEP 11 STEP 13 Repeat Steps 3-4 to attach the Passenger Mounting Rear Once all (2) Brackets have been installed, repeat Steps 6-7 to Bracket to the Passenger side rear mounting location. Do not install the Assembled Passenger Side Step. Do not fully tighten fully tighten hardware at this time.
