IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

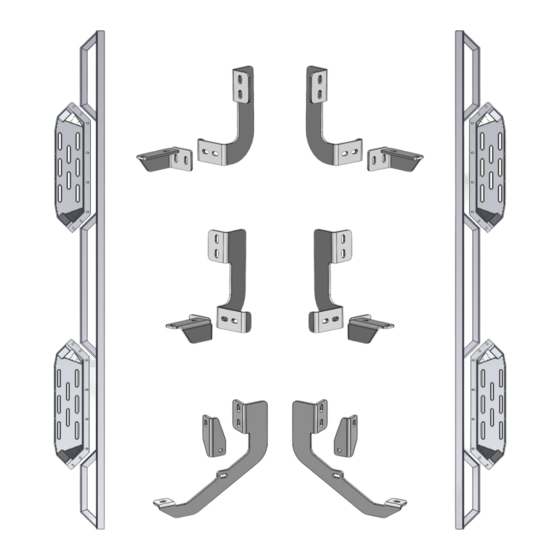

PART LIST
Driver Front/Passenger Center
Mounting Bracket (DFM/PCM)
12"
Step Pad
PFB/DCB
Driver Rear Support
Bracket (DRS)
10"
Driver Side Step Bar
iArmor
Driver Front/Passenger Center
Bar Bracket (DFB/PCB)
PFM/DCM
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front/Driver Center
Mounting Bracket (PFM/DCM)
Passenger Front/Driver Center Bar
Bracket (PFB/DCB)
DFM/PCM
Passenger Rear Support
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IA-N095
6-7
16-18
31-32
56-58
92-94
12"
DFB/PCB
Bracket (PRS)
10"
Passenger Side Step Bar
Rev. 20210901
Required
√
√
X
X
X
Step Pad
