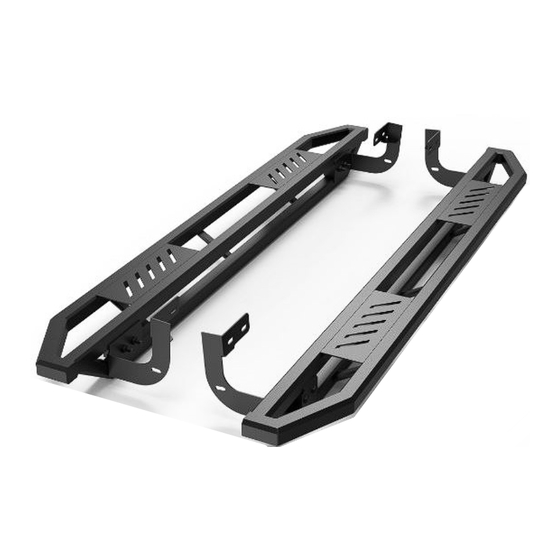

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING/TRIMMING NOT REQUIRED

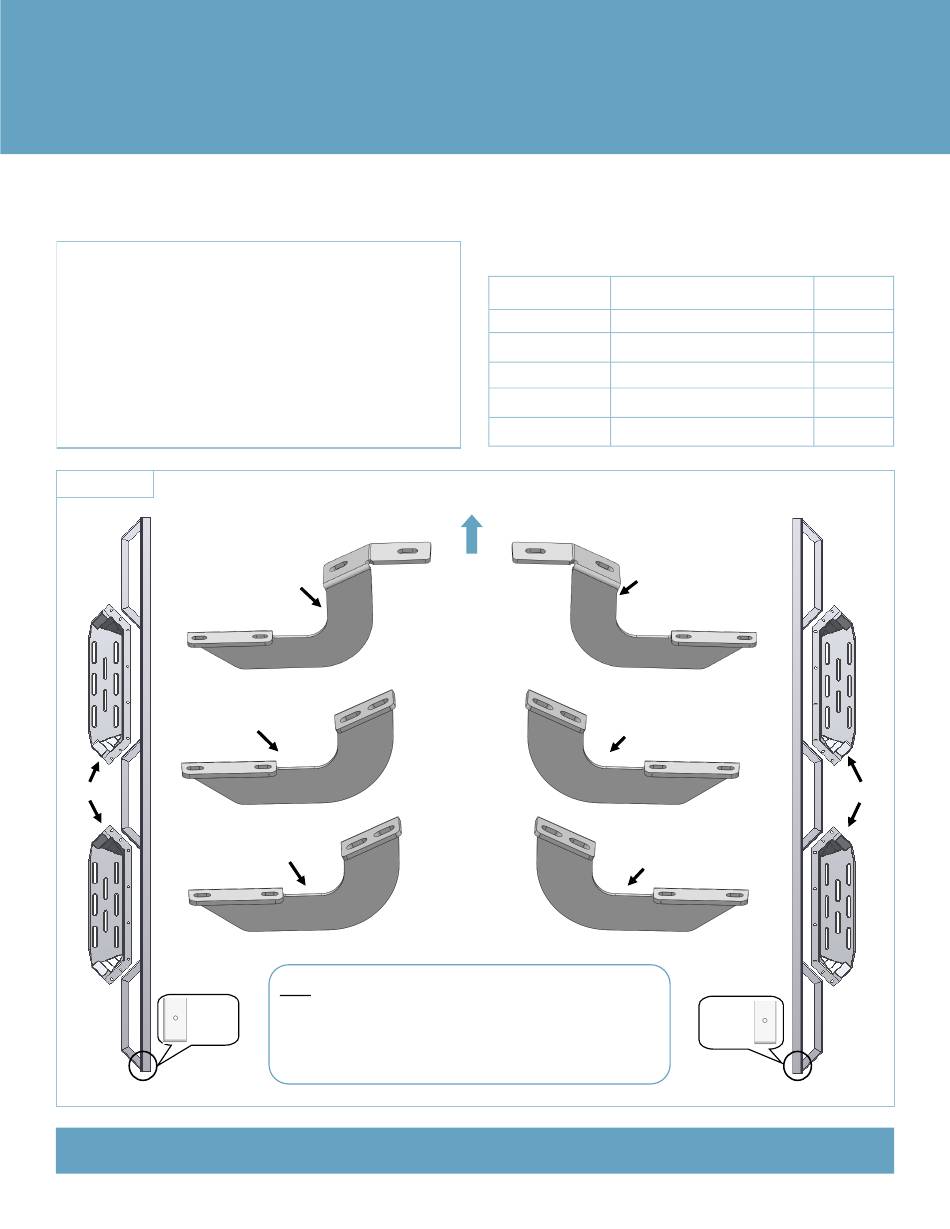

PART LIST
Driver Front
Mounting Bracket
(DFM)
Driver Center / Rear
Mounting Bracket
(DCM/DRM)
Pedal
(DCM/DRM)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Note: *
Driver Center & Rear Mounting Brackets are universal
*
Passenger Center & Rear Mounting Brackets are universal
*
Step bars are NOT interchangeable. Make sure drain holes at
the bottom will be located at the rear direction of the step
bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front
Mounting Bracket
Passenger Center /
Bracket (PCM/PRM)
(PCM/PRM)
1
PART#: IA-N058H
Required
6-7
16-18
31-32
56-58
92-94
(PFM)
Rear Mounting
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
X
√
X
X
X
Pedal
Advertisement
Related Manuals for iArmor EDGE IA-N058H
Summary of Contents for iArmor EDGE IA-N058H
- Page 1 ® IARMOR EDGE™ PART#: IA-N058H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-30 Hex Bolts M8X1.25-20 T Bolt M8 Large Flat Washers M8 Plastic Washers M8 Lock Washers M8X1.25 Nylon Lock Nuts Hardware Package B (For Step Pedals Installation)
- Page 3 ® STEP 3 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are Select the Driver Front Mounting Bracket (DFM). Attach the not responsible for any damage caused by the installation.
- Page 4 ® Insert the T-bolt with M8 Plastic Thread down the M8 Washer in the Plastic Washer slot on the step against the step bar bar and rotate the T-bolt to (2) M8X1.25-30mm Hex Bolts 90° !! (2) M8 Large Flat Washers...
- Page 5 ® (Fig 7) Driver Side Step Bar Installation (6) M8 Plastic Washers (6) M8X1.25-20mm T-Bolts (6) M8 Large Flat Washers (6) M8 Nylon Lock Nuts Bottom View Front Customer Support: info@iarmorauto.com Rev. 20221201...
