iArmor EDGE IA-N095 Quick Start Manual

IARMOR EDGE™

BEFORE INSTALLATION

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*DRILLING NOT REQUIRED
*TRIMMING NOT REQUIRED

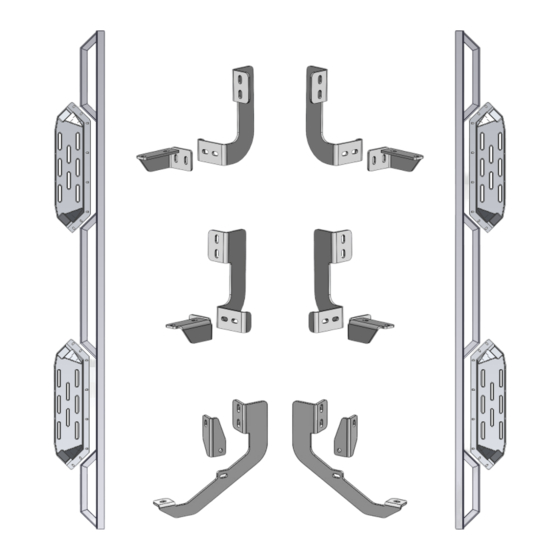

PART LIST

Driver Front/Passenger Center
Mounting Bracket (DFM/PCM)
11.6"
Step Pad
Driver Rear Support
Bracket (DRS)
9.6"
Driver Side
iArmor
PFM/DCM
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front/Driver Center
Mounting Bracket (PFM/DCM)
DFM/PCM
Passenger Rear Support
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IA-N095
6-7
16-18
31-32
56-58
92-94
11.6"
Bracket (PRS)
9.6"
Passenger Side
Rev. 20220401
Required
√
√
X
X
X
Step Pad
