iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

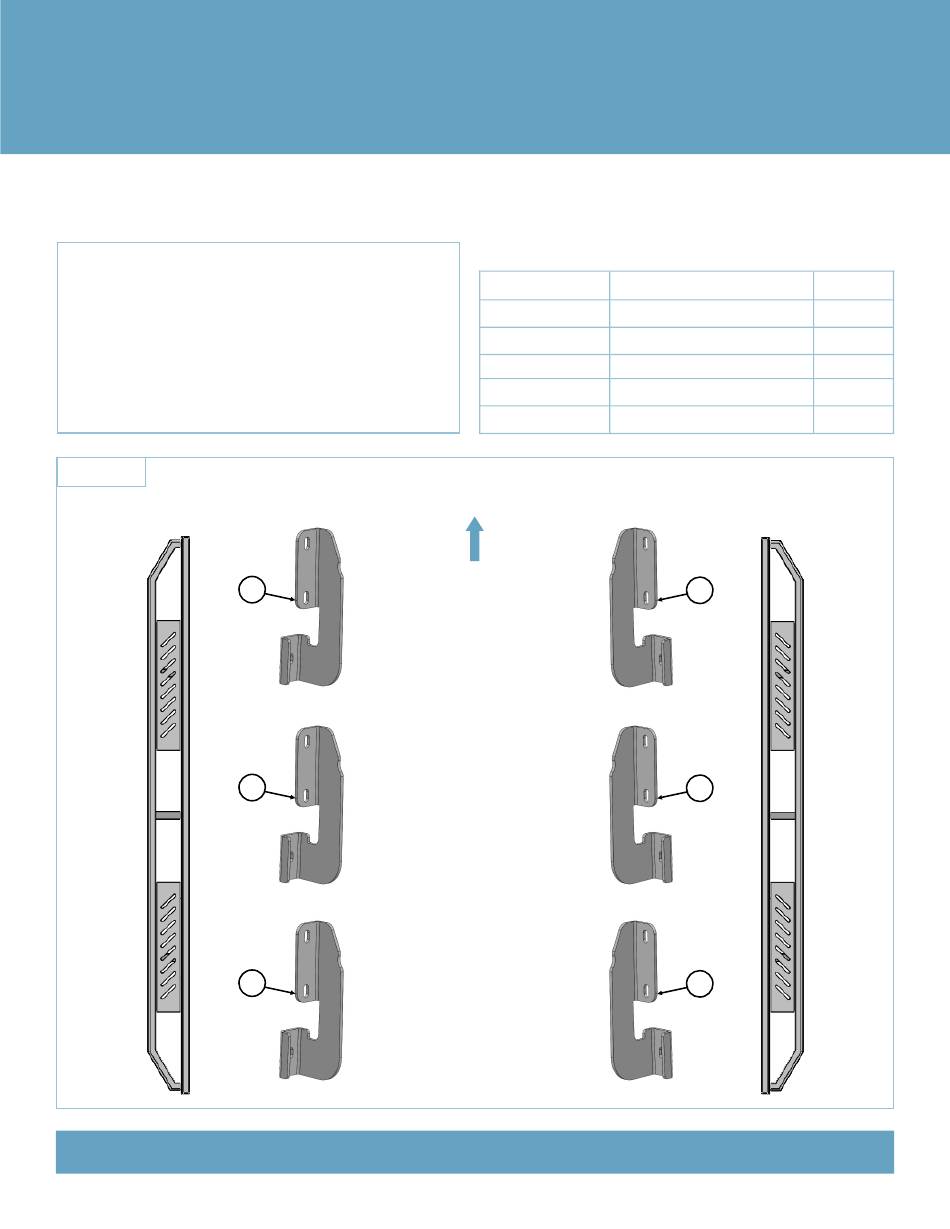

PART LIST
Driver Side Step Bar
iArmor
by APS
1#
1#
1#
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
1
®
PART#: IA-S003H&S011H
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
2#
2#
2#
Rev. 20221201
Required
X
√
X
X
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor IA-S003H
Summary of Contents for APS iArmor IA-S003H
- Page 1 ® ® iArmor by APS PART#: IA-S003H&S011H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 iArmor ® Hardware Package A (For Bracket Installation) Item Description Item Description M8 Large Flat Washers Driver Front / Center / Rear Mounting Brackets Passenger Front / Center / Rear Mounting Brackets M8 Nylon Lock Nuts U Brackets M8 Clip Nuts M8X1.25-25mm Hex Bolts Hardware Package B (For Step Bar Installation) Item...
- Page 3 iArmor ® STEP 2 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Slide (1) M8 Clip Nut into the rectangular opening with the nut towards the inside.
- Page 4 iArmor ® STEP 5 (1) M8 Clip Nut (1) M8X1.25-25mm Hex Bolt (1) M8 Flat Washer Once all (3) Passenger side mounting brackets are installed, select and attach the Driver Side Step Bar onto the Mounting Brackets with (3) U Brackets, (3) M8X1.25-55 Carriage Bolts, (3) M8 Large Flat Washers, (3) M8 Lock Washers and (3) M8X1.25 Hex Nuts, (Fig 5).
