iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING / TRIMMING REQUIRED

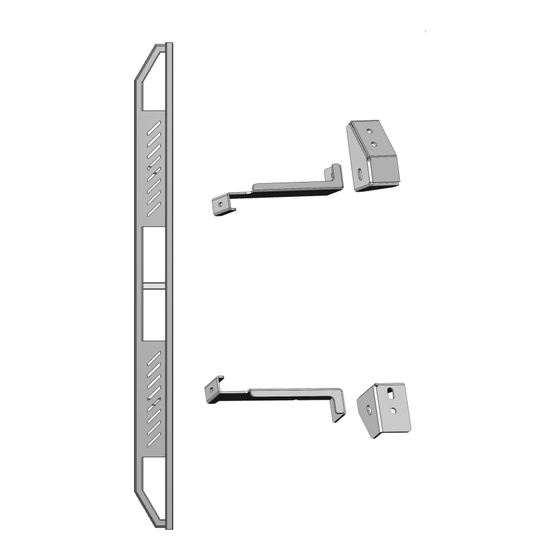

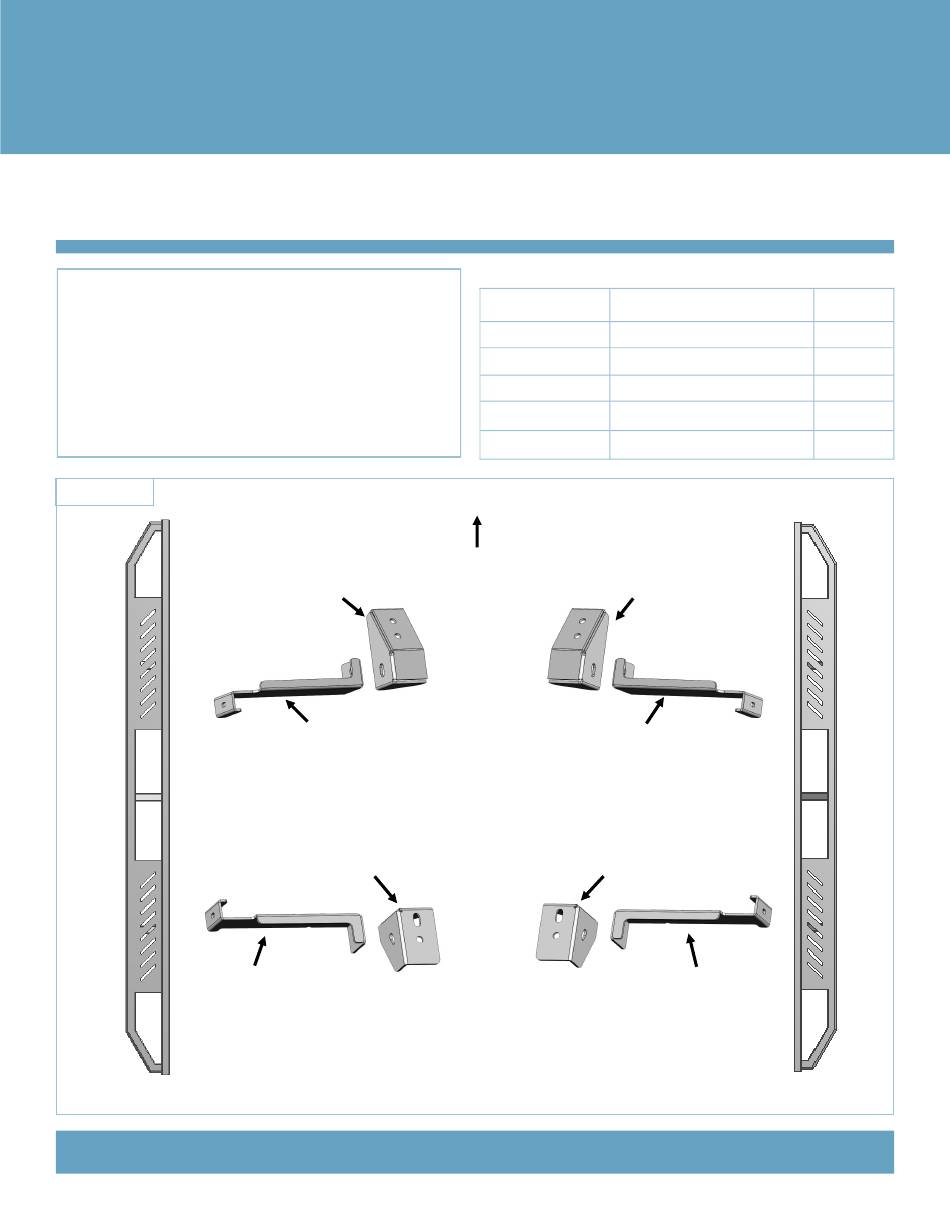

PART LIST
Driver Rear Bar
Bracket (DRB)
Driver Side Step Bar
iArmor
by APS
Driver Front Mounting
Bracket (DFM)
Driver Front Bar
Bracket (DFB)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mount-
ing Bracket (PFM)
Passenger Front
Bar Bracket (PFB)
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IA-S093
6-7
16-18
31-32
56-58
92-94
Passenger Rear Bar
Bracket (PRB)
Passenger Side Step Bar
Rev. 20211201
Required
X
√
X
√
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor IA-S093
Summary of Contents for APS iArmor IA-S093
- Page 1 ® ® iArmor by APS PART#: IA-S093 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 iArmor ® M12 Lock Washer M12X1.75- M12X1.75- M12X1.75 M12 Large Flat 35mm Hex Bolt 30mm Hex Bolt Hex Nut Washer Backing Plate M8 Lock Washer M8X1.25 Hex Nut M8X1.25-55mm M8 Large Flat U Bracket Carriage Bolt Washer Spacer STEP 2 The instruction here is for your reference only.
- Page 3 iArmor ® STEP 3 Backing Plate Move toward the rear of the vehicle. Assemble the Driver Rear Mounting Bracket (DRM) and Driver Rear Bar Bracket (DRB) with (1) M12x1.75-35mm Hex Bolt, (2) M12 Large Flat Wash- ers, (1) M12 Lock Washer and (1) M12X1.75 Hex Nut , (Fig 4). Do not fully tighten hardware at this time.
- Page 4 iArmor ® NOTE: Torque all M8 X1.25-55mm Car- riage Bolts to 16~18 Ib-ft. Don't over Front tighten, or the aluminum square bars will be damaged by the brackets M8 Large Flat Washer M8 Lock washer M8X1.25 Hex Nut U Bracket M8X1.25-55mm Carriage Bolt Spacers...
