READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Driver
iBoard
Front
1#
1#
1#
1#
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
1
®
PART#: IB-R905/R906
Required
6-7
16-18
31-32
56-58
92-94
Passenger
1#
1#
1#
1#
Rev. 20220301
√
√
X
X
X
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APS iBoard IB-R905
Summary of Contents for APS iBoard IB-R905

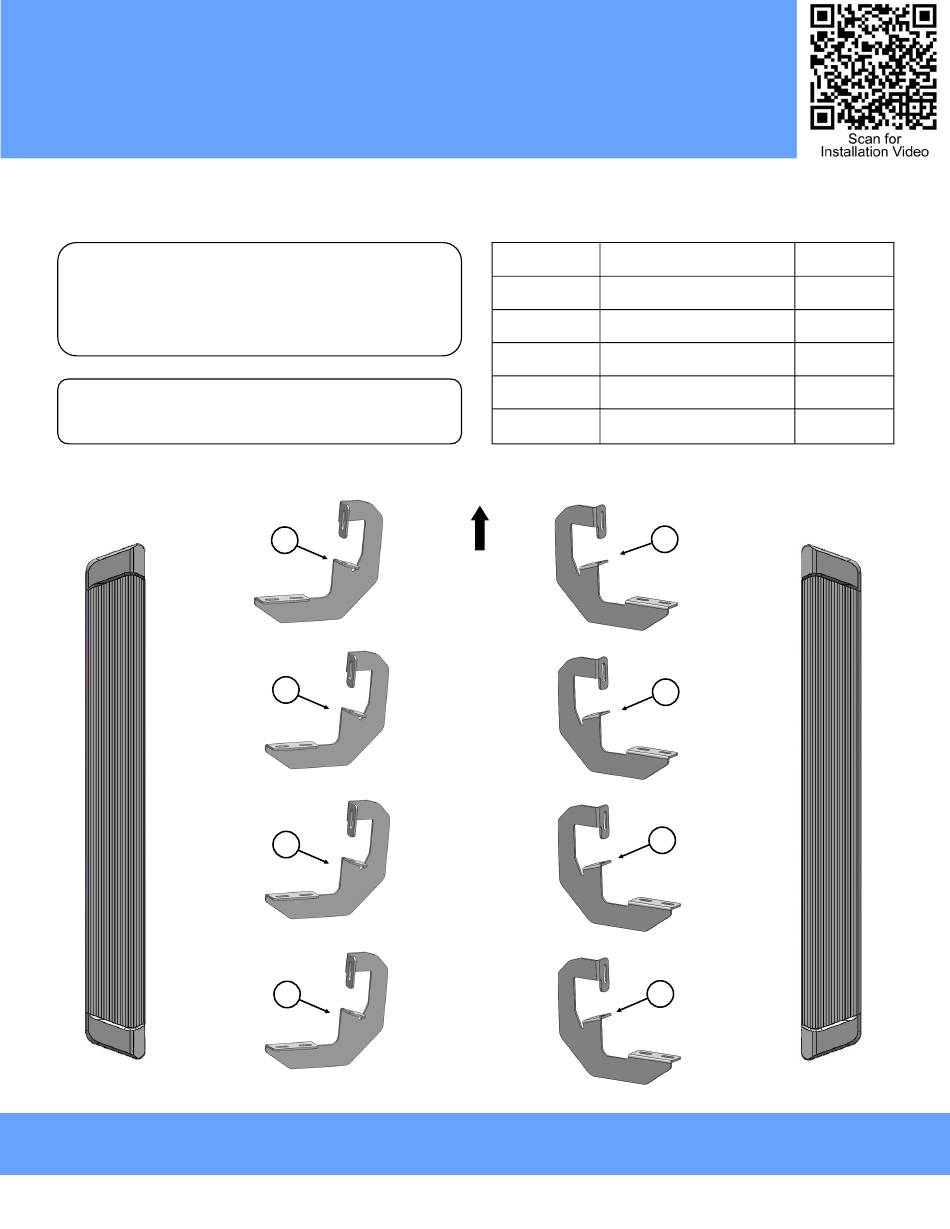

- Page 1 ® ® iBoard by APS PART#: IB-R905/R906 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 iBoard ® Item Description Item Description Mounting Brackets M8 Lock Washers M8X1.25-20mm Hex Bolts M8 Hex Nuts M8 Large Flat Washers Hardware Package B (For Step Bar Installation) Item Description Item Description M6X1-20mm Square Head Bolts M6 Nylon Lock Nuts M6 Large Flat Washers Customer Support: info@iboardauto.com Rev.
- Page 3 iBoard ® STEP 1 STEP 2 Starting on the driver side front of the vehicle. Attach Driver Move to Driver side other 3 mounting locations. Repeat Step 1 Front Mounting Bracket as shown, (Fig 1). Do not fully tighten to install the Mounting Brackets. Do not fully tighten hardware hardware at this time.
- Page 4 iBoard ® STEP 3 STEP 4 Once all (4) mounting brackets are installed. Select a Running Board. Slip (4) M6X1-20mm Square Head Bolts into each bot- Level and adjust the Running Board and fully tighten all hard- tom channel, (Fig 2). Carefully position the Running Board onto ware.
