iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!

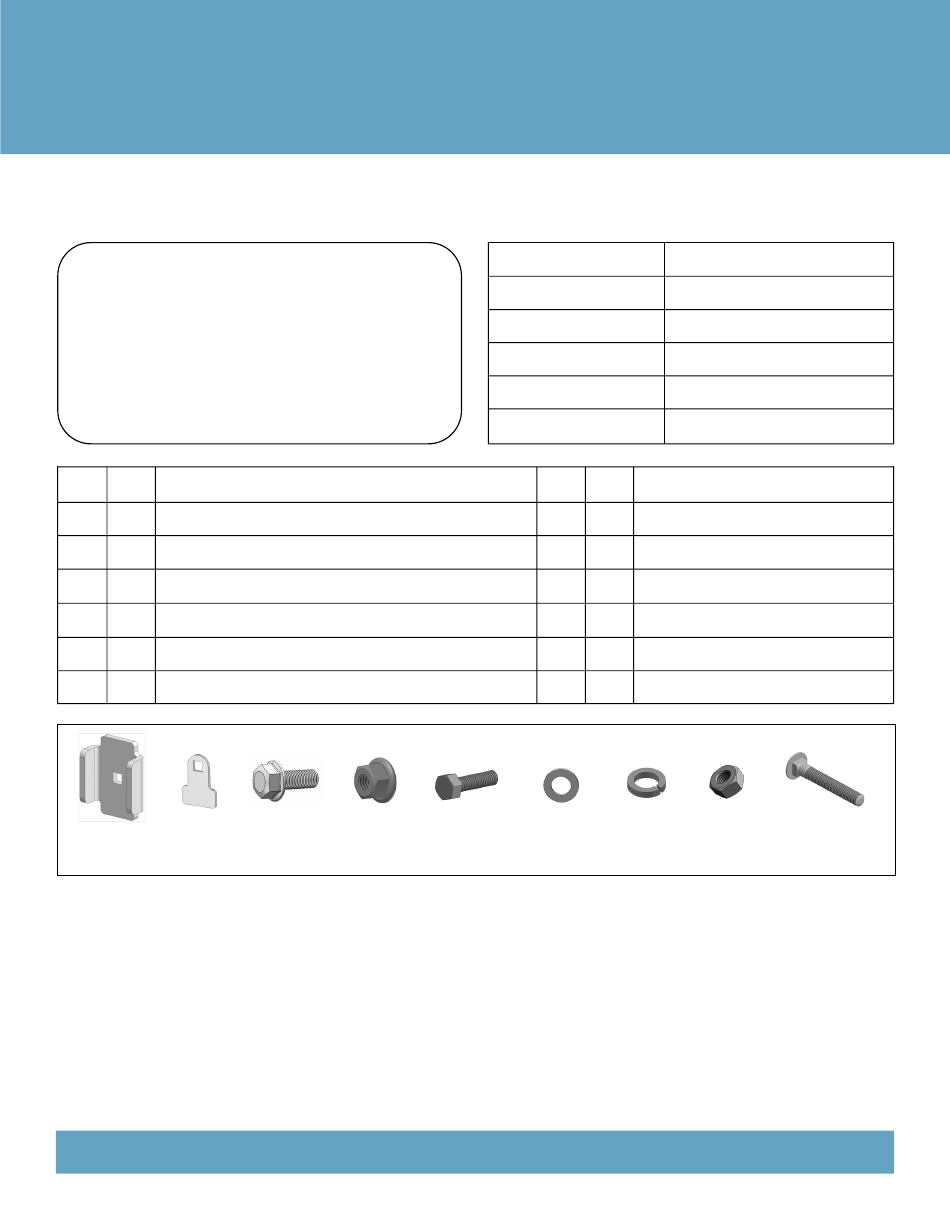

Item
QTY
1#
3
Driver Front & Center & Passenger Rear Mounting Brackets
2#
3
Passenger Front & Center & Driver Rear Mounting Brackets
3#
6
Bar Brackets
4#
6
U Brackets
5#
12
Spacers
6#
12
M8X1.25-20mm Hex Flange Bolts
4 #
5 #
iArmor
by APS
Description
6 #
7 #
Customer Support: info@iarmorauto.com
Fastener Size
6mm
8mm
10mm
12mm
14mm
Item
QTY
7#
12
8#
12
9#
24
10#
18
11#
18
12#
6
10 #
8 #
9 #
1
®
PART#: IA-S022
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Description
M8X1.25 Hex Flange Nuts
M8X1.25-20mm Hex Bolts
M8 Large Flat Washers
M8 Lock Washers
M8X1.25 Hex Nuts
M8X1.25-55mm Carriage Bolts
11 #
12 #
Rev. 20210701
Advertisement
Related Manuals for APS iArmor IA-S022
Summary of Contents for APS iArmor IA-S022
- Page 1 ® ® iArmor by APS PART#: IA-S022 Fastener Size Tightening Torque (ft-lbs) BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS 16-18 ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS 10mm 31-32 RECOMMENDED. THANK YOU FOR CHOOSING OUR...
- Page 2 iArmor ® Front Driver Passenger Customer Support: info@iarmorauto.com Rev. 20210701...
- Page 3 iArmor ® STEP 2 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Install the Driver Side Brackets as shown (Fig 2). Don’t fully tighten at this time.
- Page 4 iArmor ® NOTE: Torque all M8 X1.25-55mm Car- riage Bolts to 16~18 Ib-ft. Don't over tighten, or the aluminum square bars Front will be damaged by the brackets M8 Large Flat Washer M8 Lock washer M8X1.25 Hex Nut U Bracket M8X1.25-55mm Carriage Bolt Spacers...
