iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING / TRIMMING REQUIRED

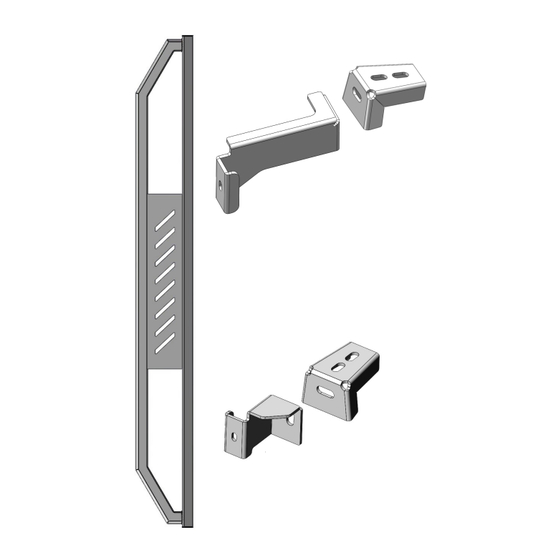

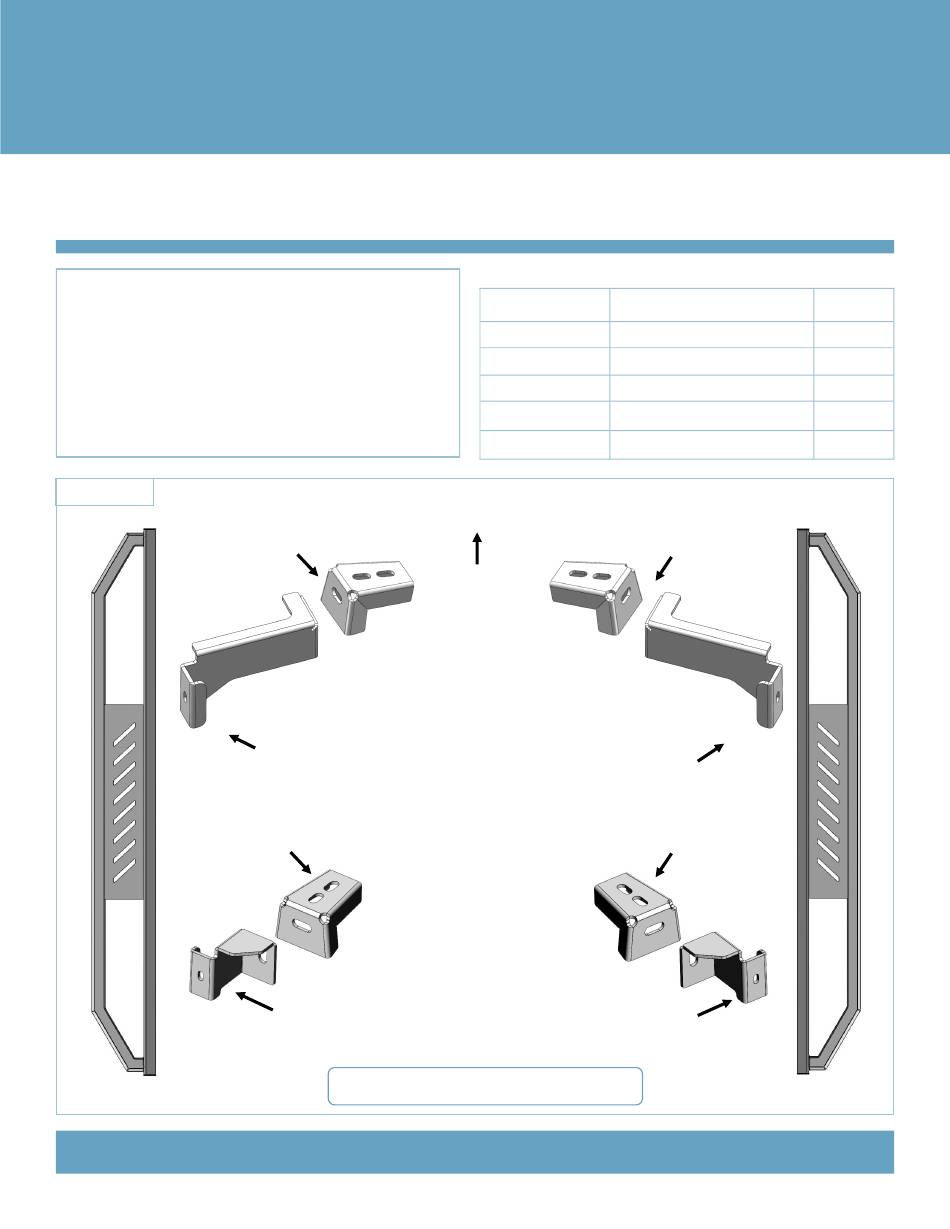

PART LIST
Mounting Bracket
Mounting Bracket
Driver Side Step Bar
iArmor
by APS
Driver Front Bar
Bracket (DFB)
Driver Rear Bar
Bracket (DRB)
NOTE: The (4) Mounting Brackets Are Universal
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front
Bar Bracket (PFB)
Passenger Rear
Bar Bracket (PRB)
1
®
PART#: IA-S084
6-7
16-18
31-32
56-58
92-94
Mounting Bracket
Mounting Bracket
Passenger Side Step Bar
Rev. 20220201
Required
X
√
X
√
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor IA-S084
Summary of Contents for APS iArmor IA-S084
- Page 1 ® ® iArmor by APS PART#: IA-S084 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 iArmor ® M12 Large Flat Washer M12 Lock Washer M12X1.75-35mm Hex Bolt M12X1.75 Hex Nut Spacer U Bracket M8 Lock Washer M8 Large Flat Washer M8X1.25-55mm Carriage Bolt M8X1.25 Hex Nut The instruction here is for your reference only. We strongly recommend the professional installer for best result.
- Page 3 iArmor ® STEP 2 (1) M12X1.75-35mm Hex Bolt (2) M12 Large Flat Washers (1) M12 Lock Washer Select the Driver Front Bar Bracket (DFB), attach to the Mount- (1) M12 X1.75 Hex Nut ing Bracket with (1) M12X1.75-35mm Hex Bolt, (2) M12 Large Flat Washers, (1) M12 Lock Washer and (1) M12 X1.75 Hex Nut (Fig 4).
- Page 4 iArmor ® STEP 5 Attention Do periodic inspections to the installation to make sure Properly level and adjust the Step Bar and fully tighten all hard- that all hardware is secure and tight. ware. In order to protect your bars/boards, please use only mild soap/non-abrasive products for cleaning.
