iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!

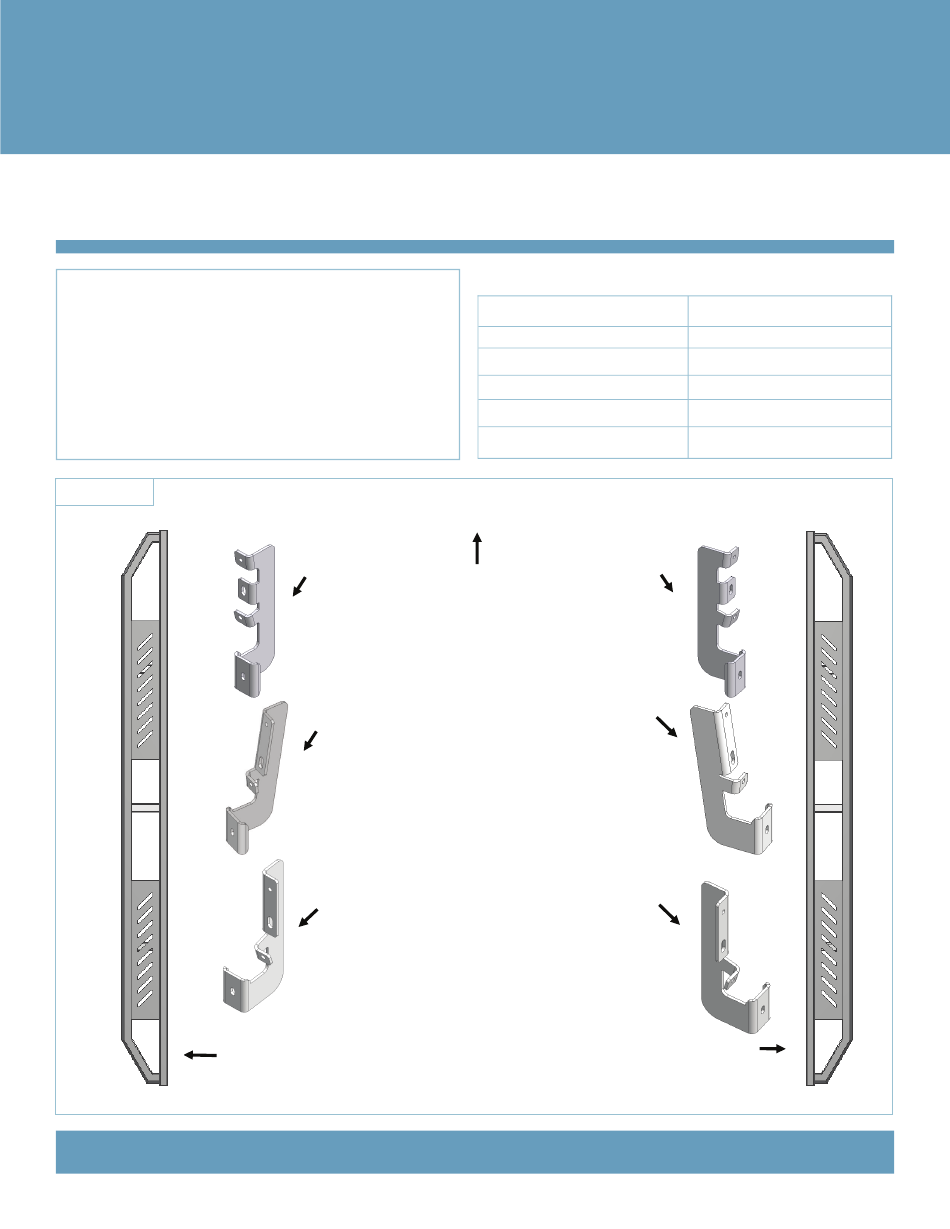

PART LIST
X1
X1
X1

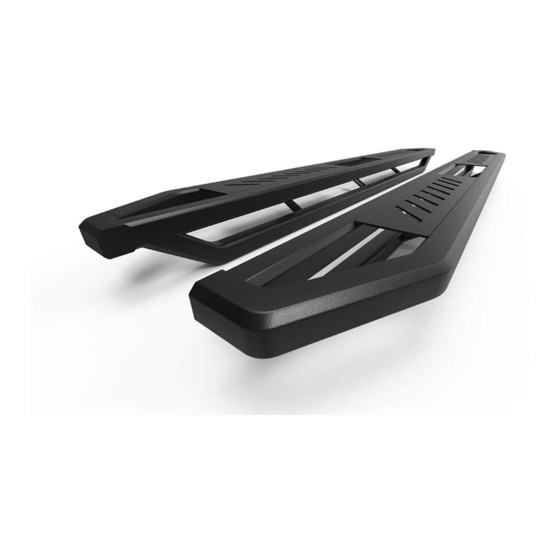

Driver Side Step Bar
iArmor
by APS
Driver Front Mounting
Bracket (DFM)
Driver Center Mounting
Bracket (DCM/PCM)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mount-
ing Bracket (PFM)
Passenger Center Mount-
ing Bracket (DCM/PCM)
Passenger Rear Mount-
ing Bracket (PRM)
Passenger Side Step Bar
1
®
PART#: IA‐S002
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
X1
X1
X1
X1
X1
Rev. 20201201
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor
Summary of Contents for APS iArmor
- Page 1 ® ® iArmor by APS PART#: IA‐S002 BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE 16-18 PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 10mm 31-32 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 12mm 56-58 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M10 Lock Washer M10 Flat Washer M10X1.5 Hex Nut M10 Plastic Washer M10X35 Bolt Plate Spacer M6 Lock Washer M6X1 Hex Nut U Bracket M6 Flat Washer ST6.3X25 Self M6X1-25 Hex Bolt Tapping Screw M8X1.25 Hex Nut...
- Page 3 ® STEP 4 Attach the Driver Front Mounting Bracket to the Bolt Plate, and secure the mounting bracket as shown on Fig 6. Don’t fully tighten at this time. Front (1) ST6x25 Self Tap- ping Screw (Fig 3) Driver Side Center Mounting Location...
- Page 4 ® NOTE: Torque all M8 X1.25-55 Car- Front riage Bolts to 16~18 Ib-ft. Don't over tighten, or the aluminum square bars will be damaged by the brackets M8 Large Flat Washer M8 Lock washer M8X1.25 Hex Nut U Bracket Front M8X1.25-55...
