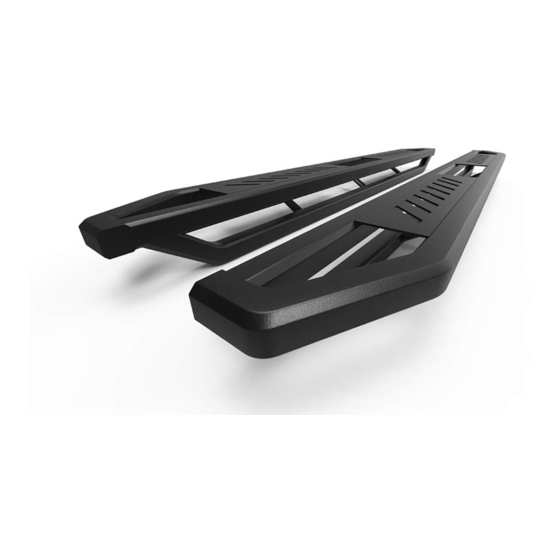

iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING / TRIMMING REQUIRED
Item
QTY
1#
2
Driver/Passenger Front Mounting Brackets
2#
4
Driver/Passenger Center / Rear Mounting Brackets
3#
6
U Brackets
4#
12
Spacers
5#
12
M8X1.25-30mm Hex Bolts
3 #
4 #
iArmor
by APS
Description
5 #
Customer Support: info@iarmorauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item QTY
6#
18
M8 Large Flat Washers
7#
18
M8 Lock Washers
8#
6
M8X1.25-55mm Carriage Bolts
9#
6
M8X1.25 Hex Nuts
7#
6 #
1
PART#: IA-S097&S098
Required
6-7
X
16-18
√
31-32
X
56-58
X
92-94
X
Description
8 #
9 #
Rev. 20220201
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor
Summary of Contents for APS iArmor
- Page 1 ® ® iArmor by APS PART#: IA-S097&S098 Fastener Size Tightening Torque (ft-lbs) Required BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS 16-18 √ RECOMMENDED. THANK YOU FOR CHOOSING OUR...
- Page 2 ® Front Driver Passenger Customer Support: info@iarmorauto.com Rev. 20220201...
- Page 3 ® STEP 2 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not Attach the Driver Front Mounting Bracket to the body panel by responsible for any damage caused by the installation.
- Page 4 ® STEP 4 Once all (3) driver side mounting brackets are installed, select and attach the Driver Side Step Bar onto the Mounting Brackets with (3) U Brackets, (6) Spacers, (3) M8X1.25-55mm Carriage Bolts, (3) M8 Large Flat Washers, (3) M8 Lock Washers and (3) M8X1.25 Hex Nuts (Fig 6).
