iBoard
READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. REMOVE CONTENTS
FROM BOX AND VERIFY ALL PARTS ARE PRE-
SENT. ASSISTANCE IS RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED

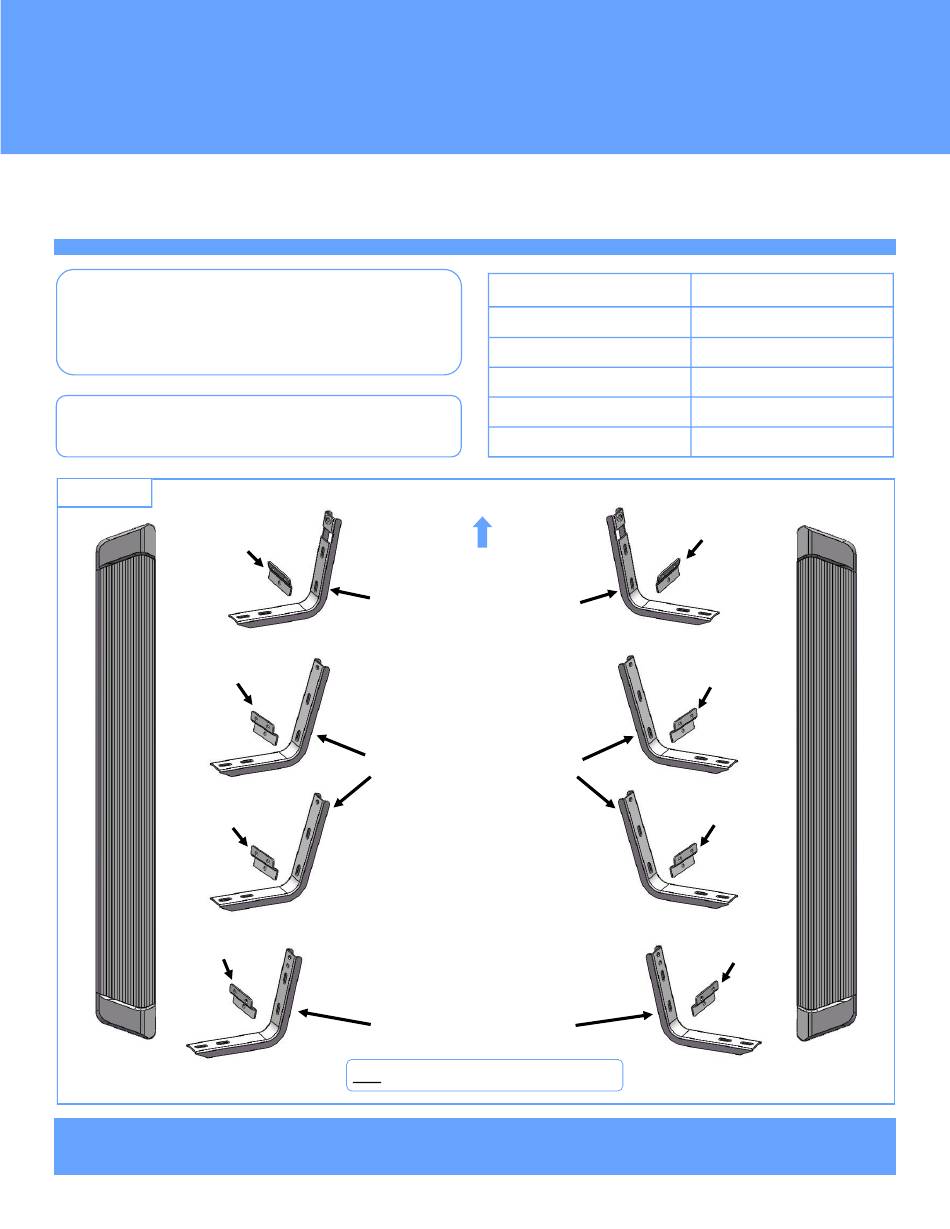

PART LIST
Driver/Passenger
Front Support
Bracket (DFS/PFS)
Support Bracket
Support Bracket
Support Bracket
iBoard
by APS
Driver/Passenger Front Mounting
Bracket (DFM/PFM)
Driver/Passenger Center Mounting
Bracket (DCM/PCM)
Driver/Passenger Rear Mounting
Bracket (DRM/PRM)
Note: *(6) Support Brackets Are Universal
Customer Support: info@iboardauto.com
®
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
1
PART#: IB-R048
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
DFS/PFS
Support Bracket
Support Bracket
Support Bracket
Rev. 20210301
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iBoard
Summary of Contents for APS iBoard
- Page 1 ® ® iBoard by APS PART#: IB-R048 Fastener Size Tightening Torque (ft-lbs) READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRE- SENT. ASSISTANCE IS RECOMMENDED. 16-18 10mm 31-32 12mm 56-58 *ROCKER PANEL MOUNT...
- Page 2 ® M6X1-20mm M6 Large Flat M6 Nylon Lock M8 Hex M8X1.25-20mm Hex Bolt M8 Flat Washer Square Head Bolt Washer M8X30 Bolt Plate Flange Nut STEP 1 DFM/PFM Start installation from the driver side of the vehicle. Locate (8) mounting positions along the rocker panel.
- Page 3 ® STEP 3 STEP 5 Install the assembled Driver Front Mounting Bracket on the rocker panel and pinch weld with (1) M8 Bolt Plate, (2) Select a Running Board. Slip (4) M6x1-20mm Square Head M8X1.25-20mm Hex Bolts, (5) M8 Flat Washers, (3) M8 Hex Bolts into each bottom channel (Fig 5).
- Page 4 ® STEP 6 STEP 7 Repeat Steps 1-4 for the other side Running Board installation. The installation is completed. Level and adjust the Running Board and fully tighten all hard- ware. Attention Important: Please follow the recommended Tightening Tor- Do periodic inspections to the installation to make sure ques shown in the table on page 1.
