IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

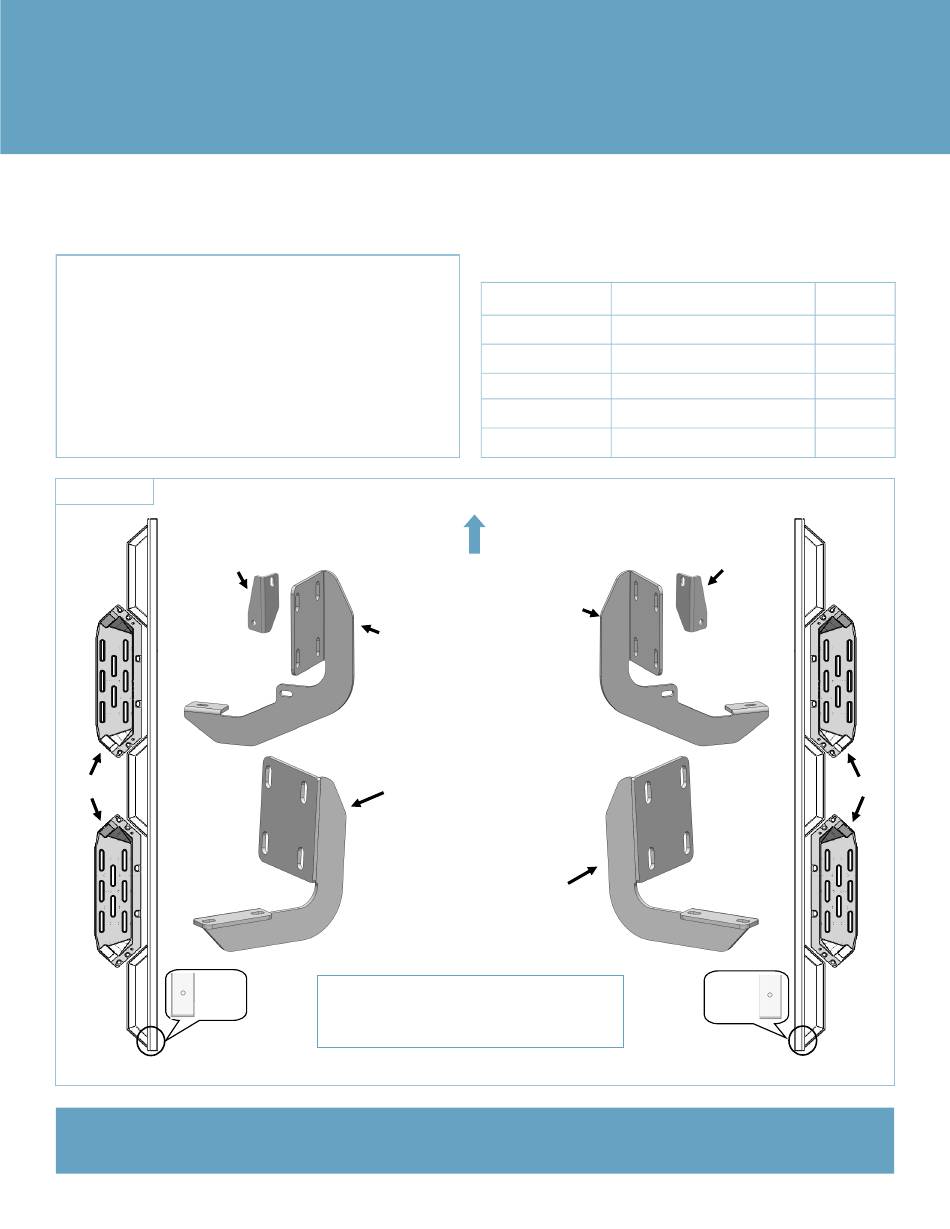

PART LIST
Driver Front
Support Brack-
et (DFS)
Pedal
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Front
Mounting
Bracket (DFM)
Driver Rear
Mounting
Bracket (DRM)
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front
Mounting Brack-
et (PFM)
Passenger Rear
Mounting Bracket
(PRM)
1
PART#: IA-N003H
Required
6-7
16-18
31-32
56-58
92-94
Passenger
Front Support
Bracket (PFS)
Pedal
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
√
√
√
