IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

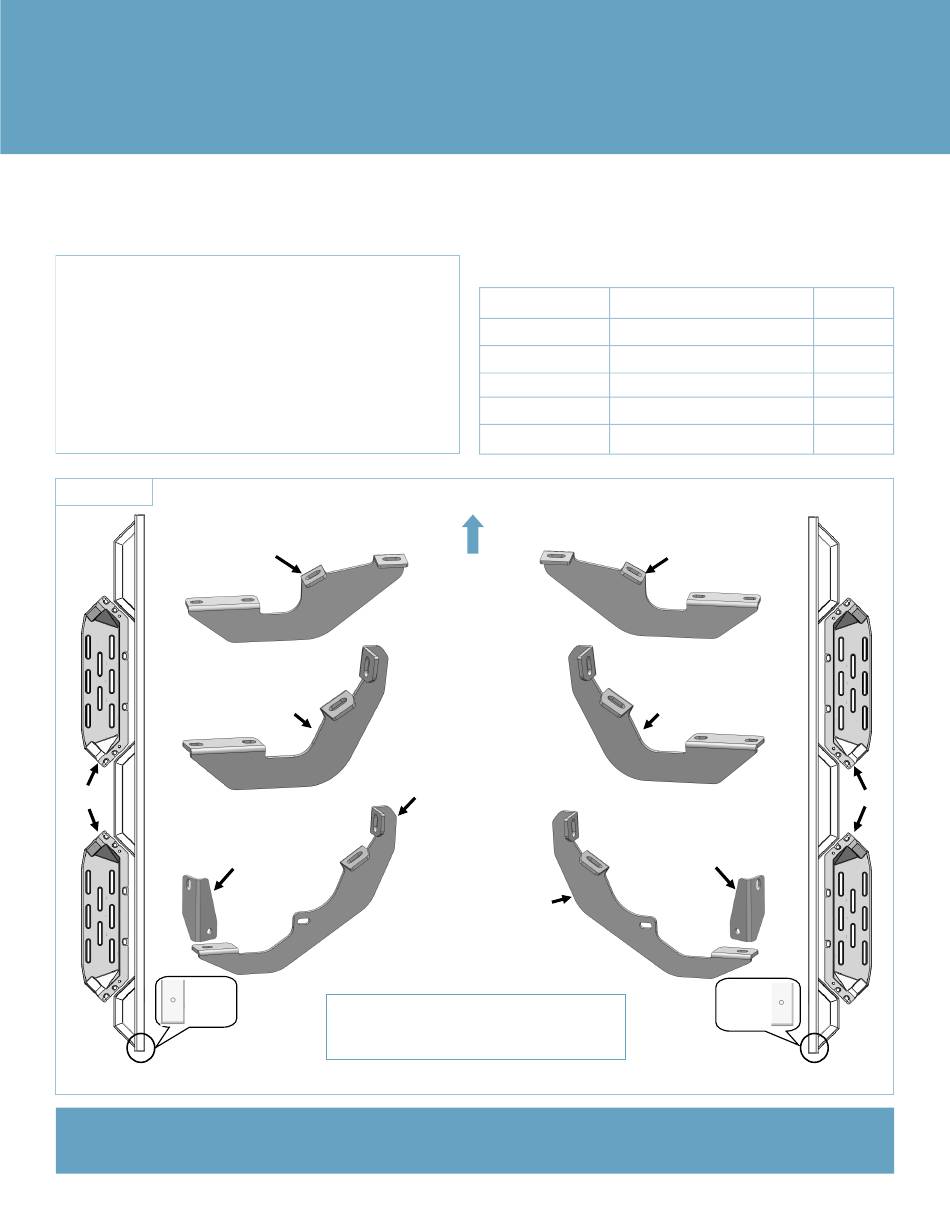

PART LIST
Driver Front
Mounting
Bracket
(DFM)
Driver Center
Mounting
Bracket (DCM)
Pedal
Driver Rear
Support
Bracket
(DRS)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Rear Mount-
ing Bracket (DRM)
Passenger Rear
Mounting Bracket
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger
port Brack-
(PRM)
1
PART#: IA-N311H
Required
6-7
16-18
31-32
56-58
92-94
Passenger
Front
Mounting
Bracket (PFM)
Passenger Cen-
ter Mounting
Bracket (PCM)
Rear Sup-
et (PRS)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
√
√
√
X
X
Pedal
Advertisement
Related Manuals for APS IARMOR EDGE IA-N311H
Summary of Contents for APS IARMOR EDGE IA-N311H
- Page 1 iArmor ® IARMOR EDGE™ PART#: IA-N311H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT! 10mm 31-32 √...
- Page 2 iArmor ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M10X1.5-30mm Hex Bolts M6X1-20 Square Head Bolts M10 Flat Washers M6 Large Flat Washers M10 Lock Washers M6X1 Nylon Lock Nuts M8X1.25-25mm Hex Bolts M8X1.25-20 T Bolts M8 Large Flat Washers M8 Plastic Washers M8X1.25 Nylon Lock Nuts...
- Page 3 iArmor ® The instruction here is for your reference only. We strongly Remove plugs recommend the professional installer for best result. We are if equipped not responsible for any damage caused by the installation. STEP 1 Front Install (4) Pedals onto the step bars with (24) M8X1.25-25mm (Fig 1) Passenger Side Front Mounting Location Hex Bolts, (24) M8 Large Flat Washers and (24) M8 Lock Washers.
- Page 4 iArmor ® STEP 5 Move to the Passenger Side Rear Mounting Location. Repeat Step 2 to install the Passenger Rear Mounting Bracket with (2) M8X1.25-30mm Hex Bolts, (2) M8 Lock Washers and (2) M8 Large Flat Washers, (Figs 6&7) . Do not fully tighten hardware at this time.
- Page 5 iArmor ® STEP 6 STEP 7 Attach the Assembled Passenger Side Step Bar onto the Once all (3) brackets have been installed, select (5) M8X1.25- Mounting Brackets with (5) M8 Plastic Washers, (5) M8X1.25- 20mm T-Bolts, thread (1) M8 Plastic Washer on each T-Bolt, 20mm T-Bolts, (5) M8 Large Flat Washers, (5) M8 Nylon Lock (Fig 8).
- Page 6 iArmor ® (5) M8 Plastic Washers (5) M8X1.25-20mm T-Bolts (5) M8 Large Flat Washers (5) M8 Nylon Lock Nuts Front (1) M6X1-20mm Square Head Bolts Bottom View (1) M6 Large Flat Washers (1) M6 Nylon Lock Nuts (Fig 11) M6 Square Bolt in the Channel (Fig 10) Passenger Side Step Bar Installation Customer Support: info@iarmorauto.com...
