Under Cabinet
Articulating Single
Monitor and TV Mount
SKU: MOUNT-VC01A
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/mount-vc01a

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOUNT-VC01A and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-VC01A

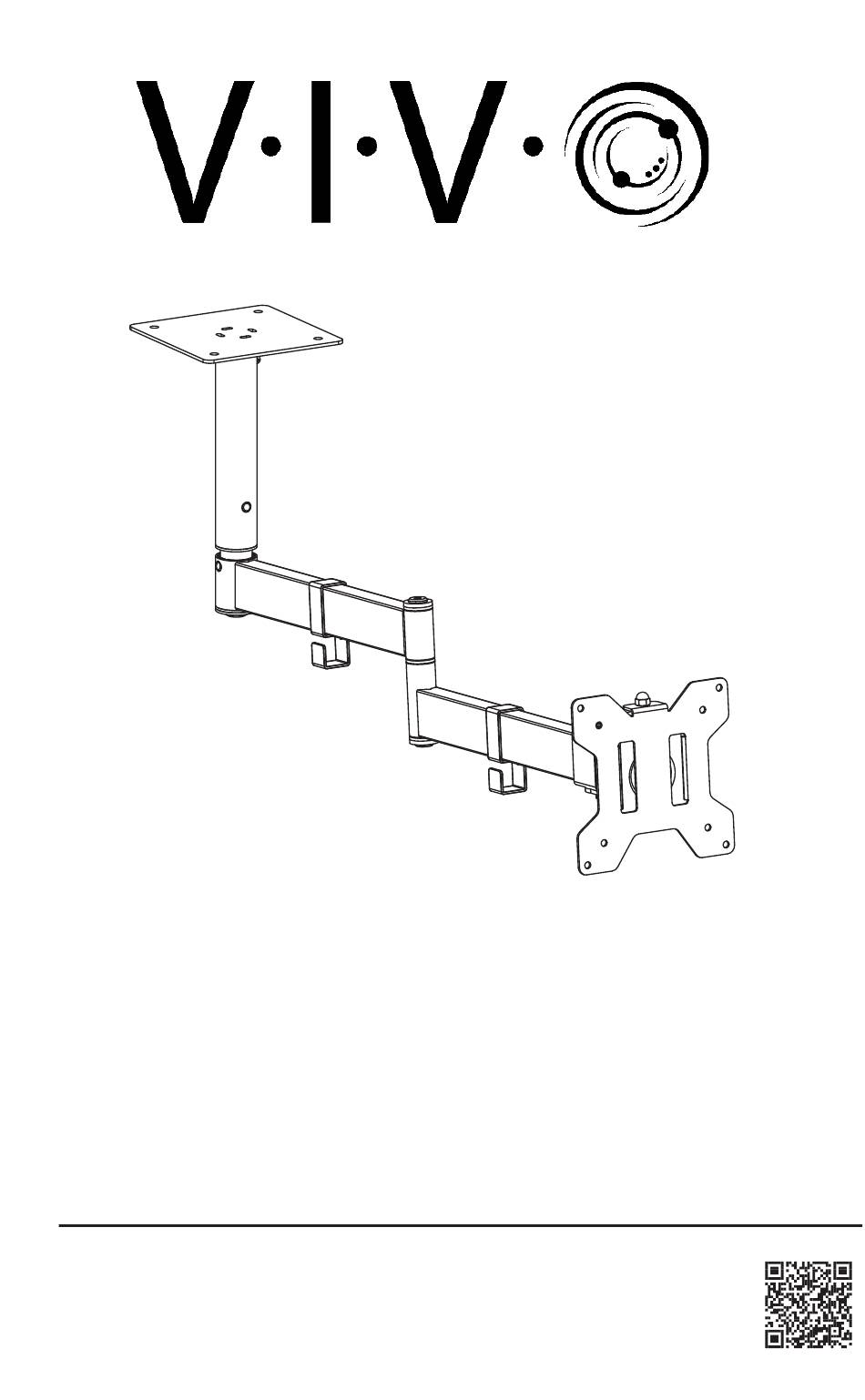

  • Page 1 Under Cabinet Articulating Single Monitor and TV Mount SKU: MOUNT-VC01A Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-vc01a...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
  • Page 3 Package Contents A (x1) B (x1) C (x1) D (x2) Mount VESA Plate Cable Clip Included Hardware & Tools S-C (x4) S-B (x4) S-D (x1) S-A (x4) ST4.8x25mm Screw ST4.8x16mm Screw M6 Cap Nut ST4.8x13mm Screw M-A (x8) M-B (x8) M-C (x8) T-A (x1) M4x12mm...
  • Page 4: Assembly Steps

    ASSEMBLY STEPS STEP 1 Hold Mount (B) up to your desired mounting location and mark holes using a pencil. Follow the table below for pre drilling instructions depending on the best hardware for your cabinet or desk thickness. Attach the Mount (B) using Screws (S-A, S-B or S-C) and a Phillips screwdriver.
  • Page 5 STEP 2 Press in the spring pin on Arm (A) while sliding into the post on Mount (B). Secure Arm (A) in place by engaging the spring pin in one of the predetermined height settings.
  • Page 6 STEP 3 Install VESA Plate (C) onto your device using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B) and Spacers (M-C). Lightly tighten using a Phillips screwdriver. Note: The flange on VESA Plate (C) should be oriented towards the top end of the device. M-A (x4) M-B (x4) M-C (x4)
  • Page 7 STEP 5 Route cables through Cable Clips (D). NOTE: Do not adjust the height of the expansion pole when the monitor is installed. Otherwise, the monitor may fall off. STEP 6 Adjust the tilt joint on Arm (A) using 5mm Allen Wrench (T-A). T-A (x1)
  • Page 8 LAST UPDATED: 11/29/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
