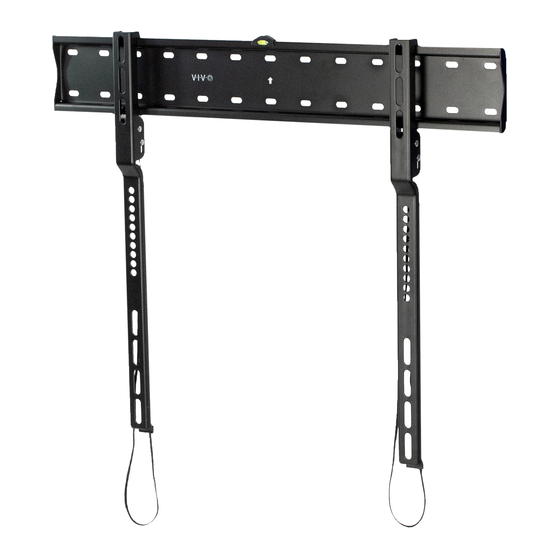

Ultra Slim TV Wall Mount
Instruction Manual
SKU: MOUNT-VW080S
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw080s
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-VW080S
Summary of Contents for Vivo MOUNT-VW080S
- Page 1 Ultra Slim TV Wall Mount Instruction Manual SKU: MOUNT-VW080S Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw080s GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Installation Use the wall plate (A) to mark mounting holes on the wall where studs are located. Use of a stud finder is highly recommended. Using a 3/16” (4.5mm) drill bit, drill holes at least 2.2”...
- Page 4 STEP 1 (continued) OPTION B: Concrete/Brick Wall Installation Use the wall plate (A) to mark mounting holes on the wall. Using a 3/8” (10mm) drill bit, drill holes at least 2.4” (60mm) deep into marked locations. Press anchors (W-B) into holes, then attach mount to wall using screws (W-A) with washers (W-C).
- Page 5 STEP 2 With TV face down on a flat surface, secure VESA brackets (B) to the TV using bolts (M-A to M-E) with square washers (M-F) and spacers (M-G, M-H) where applicable. Ensure the VESA brackets are mounted evenly.
- Page 6 STEP 3 Hang the TV with VESA brackets over the wall plate. Push the TV back lightly to engage the latches.
- Page 7 STEP 4 To remove the TV from the mount, pull down on the cords to release the latches. Move the TV forward slightly, then lift off from the wall plate.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
