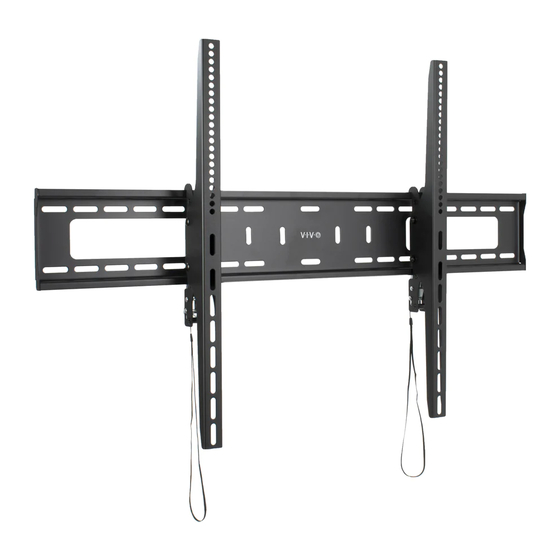

TV Wall Mount
Instruction Manual
SKU: MOUNT-VW100T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw100t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-VW100T
Summary of Contents for Vivo MOUNT-VW100T
- Page 1 TV Wall Mount Instruction Manual SKU: MOUNT-VW100T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw100t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 Remove nuts from VESA Brackets (B) and replace with Knobs (C).
- Page 4 STEP 2 OPTION A: Wood Wall Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where studs are located. Using a 5/32” bit, drill approximately 2.2” into wall. Use Mounting Screws (W-A) and Washers (W-C) to secure Mount (A) to the wall.
- Page 5 STEP 2 (Continued) OPTION B: Concrete/Brick Wall Holding the Mount (A) up to wall at desired height, use a pencil to mark mounting holes on wall where studs are located Using a 3/8” bit, drill approximately 2.4” into wall. Insert Anchors (W-B) into holes and secure Mount (A) to wall using Mounting Screws (W-A) and Washers (W-C).
- Page 6 STEP 3 Mount VESA Brackets (B) to back of TV using appropriate Screws (M-A thru M-D), M8 Washers (M-E), and a Phillips screwdriver. Spacers (M-F, M-G) are provided if needed. Makes sure straps are towards the bottom of TV. STEP 4 Attach TV to Mount (A) as shown below, making sure bottom of VESA Brackets (B) attached securely.
- Page 7 Adjustments TV angle can be adjusted as desired. +5 ° -10° Adjustments To remove, pull both straps down and lift TV off of Mount (A).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
