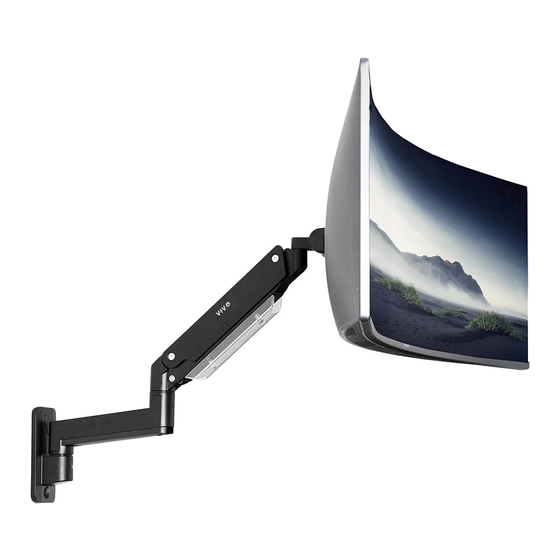

Pneumatic arm single ultrawide monitor wall mount
Hide thumbs Also See for MOUNT-V101G1/W:

Advertisement

Quick Links

Pneumatic Arm Single Ultrawide Monitor Wall Mount
Instruction Manual
SKU: MOUNT-V101G1/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-v101g1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOUNT-V101G1/W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo MOUNT-V101G1/W

  • Page 1 Pneumatic Arm Single Ultrawide Monitor Wall Mount Instruction Manual SKU: MOUNT-V101G1/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-v101g1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2: Package Contents

    CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 (Option A) OPTION A: Wood Wall Installation Use Wall Bracket (A) to mark drilling locations on the wall where a stud is located. Use of a level and stud finder is recommended. Using a 3/16” (4.5mm) bit, drill 2.2” (55mm) deep holes into marked locations. Secure Wall Bracket (A) to the wall using ST6.3x55 Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench.
  • Page 4 STEP 2 Assemble Lower Arm (B) and Gas Spring Arm (C) to Wall Bracket (A). Tighten set screws on Wall Bracket (A) and Lower Arm (B) using 3mm Allen Wrench (T-A). STEP 3 Connect VESA Plate (D) to Gas Spring Arm (C) using Keyed Spacer (S-A), M8x25mm Screw (S-B), and 6mm Allen Wrench (T-B).
  • Page 5 STEP 4 Connect Front VESA Plate (D2) to back of monitor using appropriate Screws (M-A, M-B), M5 Washers (M-C), and a Phillips Screwdriver. STEP 5 To mount the monitor, begin by lining up the tabs on Front VESA Plate (D2) with the slots on Back VESA Plate (D3).
  • Page 6 STEP 6 While holding Gas Spring Arm (C) in the horizontal position, adjust the gas spring tension using 6mm Allen Wrench (T-B). How to adjust if... ARM DROPS - If the arm drops, turn the adjustment screw counter clockwise until it holds the monitor in a horizontal position.
  • Page 7 STEP 8 For safety, please do not extend the monitor behind the desk. This may cause instability and tip the desk over.
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
