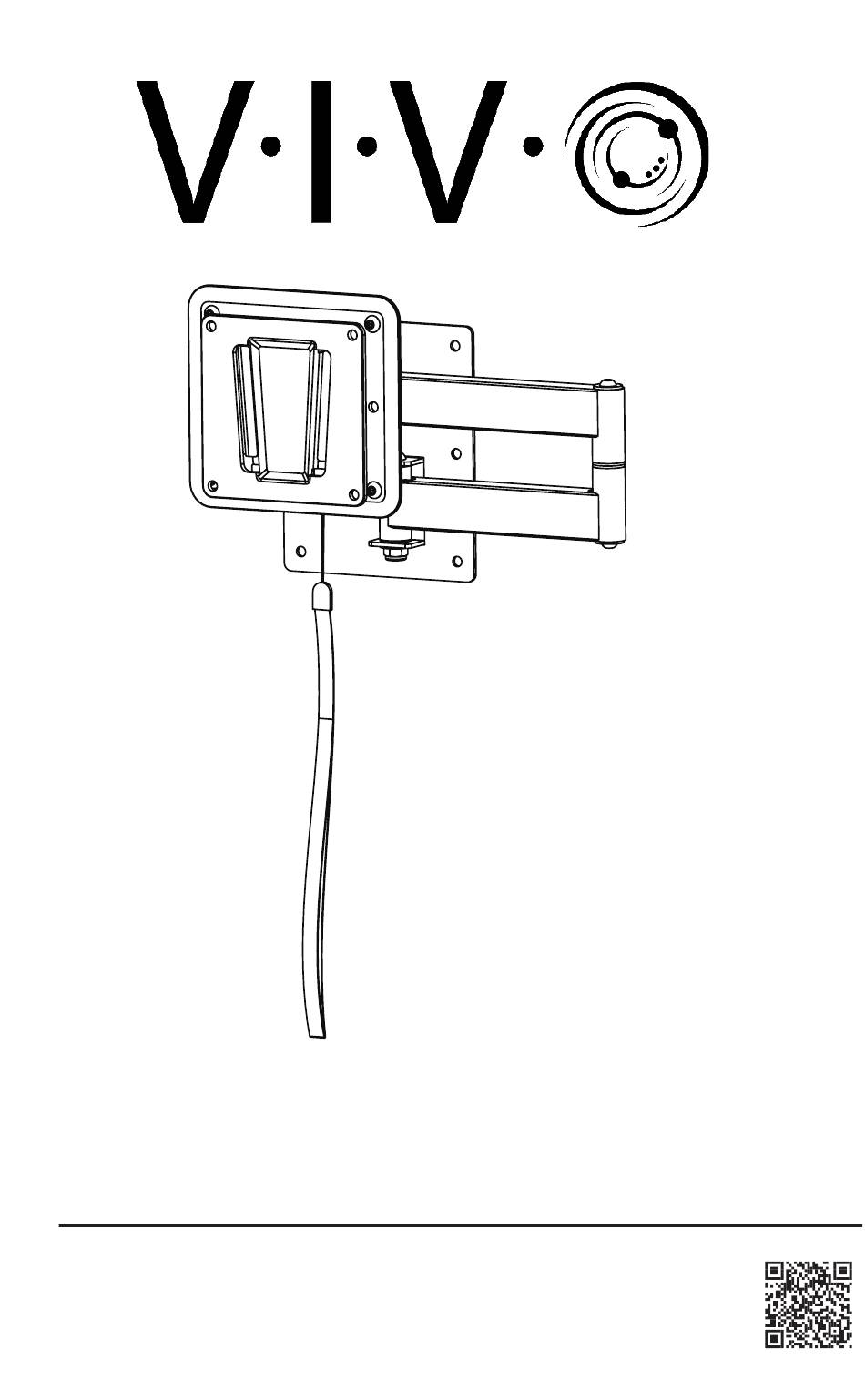

- Page 1 RV TV Mount with Articulating Arm SKU: MOUNT-VWRV3 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-vwrv3...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x2) C (x1) Mount Adapter Quick Bracket Release Plate D (x1) VESA Plate Included Hardware & Tools S-A (x8) M-A (x4) M-B (x4) M-C (x4) M-D (x4) M6x8mm M4x12mm M5x12mm M6x12mm M6 Washer Allen Screw Screw Screw Phillips Screw... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Hold Mount (A) up to your wall and use a level to find desired mounting location. Use a pencil mark hole locations using a pencil. To access the holes behind the Mount Arm, pull the Release Lever and move Arm. - Page 5 STEP 2 Connect Adapter Brackets (B) to the Front Plate on Mount (A) using M6x8mm Allen Screws (S-A). Tighten using 4mm Allen Wrench (T-A). S-A (x4) FRONT PLATE...
- Page 6 STEP 3 Install Quick Release Plate (C) onto the Adapter Brackets (B) using M6x8mm Allen Screws (S-A). Tighten using 4mm Allen Wrench (T-A). S-A (x4) STEP 4 Attach VESA Plate (D) to the back of your screen using Screws (M-A through M-C ), tightening with a Phillips screwdriver.
- Page 7 STEP 5 Slide your screen onto the Quick Release Plate (C). Use 5mm and 6mm Allen Wrenches (T-B, TC) and an adjustable wrench to tighten joints. STEP 6 Push the arm on Mount (A) back towards the wall until the Spring Pin engages with the tab. To unlock, pull the Release Lever and swing the arm forward.
- Page 8 LAST UPDATED: 12/1/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
