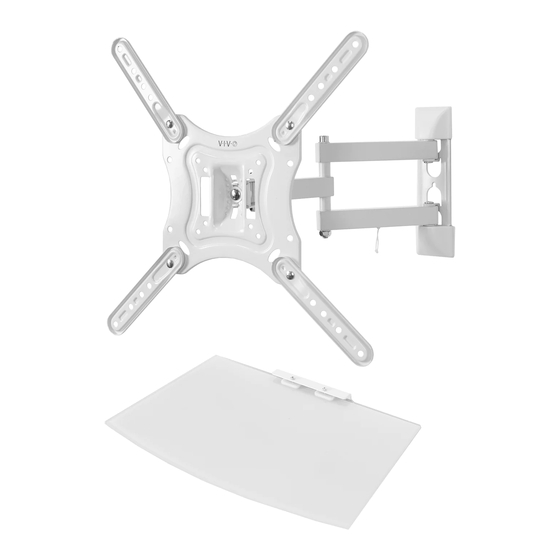

White tv wall mount and entertainment shelf

Advertisement

Quick Links

White TV Wall Mount and Entertainment Shelf
Instruction Manual
SKU: MOUNT-VWSF1W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vwsf1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-VWSF1W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo MOUNT-VWSF1W

  • Page 1 White TV Wall Mount and Entertainment Shelf Instruction Manual SKU: MOUNT-VWSF1W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vwsf1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3 TV MOUNT ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Use mount (A) to mark mounting holes on wall where stud is located. Using a 3/16” bit, drill approximately 2.2” into marked locations. Screw top two bolts (W-A) in making sure to leave 3mm of threads exposed.
  • Page 4 STEP 2 Mount VESA adapters (D) to VESA 400m m 300m m plate using bolts (E) and nuts (F) in the appropriate configuration to match your television mounting holes. 400mm STEP 3 After placing TV on a flat surface, attach VESA plate to back using bolts (M-A, M-B). Make sure top of mount is facing top of TV.
  • Page 5 STEP 5 STEP 6 Insert plastic covers (B) as shown in diagram. Attach cable management clip (C) to bottom of mount (A). STEP 7 Run cables through cable management clip (C) and adjust monitor to desired angle as shown in diagram.
  • Page 6 STEP 1 (Continued) OPTION B: Concrete/Brick Wall Using shelf bracket (A2) as a guide, mark mounting holes on wall. With a 5/16” bit, drill approximately 2.2” into wall. Insert concrete anchors (W-B2), bolts (W-A2) and washers (W-C2) to mount the shelf bracket (A2) onto wall as shown in diagram.
  • Page 7 STEP 4 Slide shelf (B2) into clips (C2). STEP 5 Use bolts (D2) to attach the shelf (B2) into place using a phillips head screwdriver as shown in the diagram. STEP 6 Place desired objects on shelf.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
