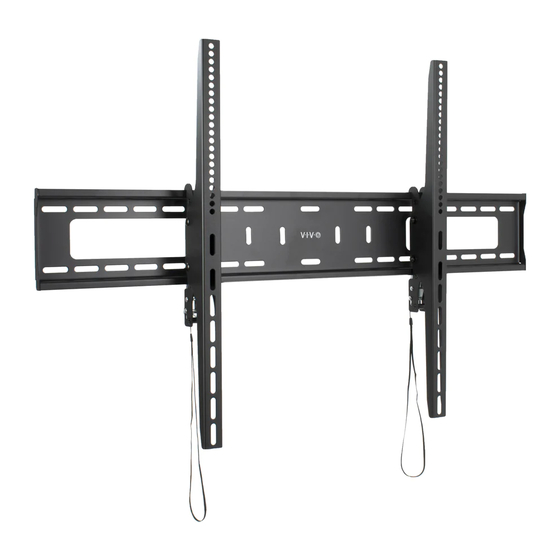

Flat Panel TV Wall Mount Bracket
Instruction Manual
SKU: MOUNT-VW100T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw100t
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Related Manuals for Vivo MOUNT-VW100T
Summary of Contents for Vivo MOUNT-VW100T
- Page 1 Flat Panel TV Wall Mount Bracket Instruction Manual SKU: MOUNT-VW100T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw100t help@vivo-us.com www.vivo-us.com 1-800-371-5654...
-
Page 2: Tools Needed
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 1-800-371-5654. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove nuts from brackets (B) and (C) and replace with knobs (D). - Page 4 STEP 2 OPTION A: Wood Wall Use template (E) to mark mounting holes on wall where studs are located. Using a 3/16” bit, drill approximately 2.2” into wall. Use bolts (W-A) and washers (W-C) to secure mount (A) to the wall. OPTION B: Concrete/Brick Wall Use template (E) to mark mounting holes on wall.
- Page 5 STEP 3 Mount brackets (B) and (C) to back on TV using bolts (M-A, M-B, M-C) and metal spacer (M-F). Makes sure straps are towards the bottom of television. M- A/M-B M- F If bolts (M-A, M-B, M-C) are too long, spacers (M-G, M-H) may be required. M-C/M- D M-C/M- D M- F...
- Page 6 STEP 4 Attach TV to mount (A) as shown in diagram. Make sure bottom of brackets (B) and (C) are attached securely. +5 ° -10°...
- Page 7 STEP 5 To remove, pull both straps down and lift television off of mount (A).
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
