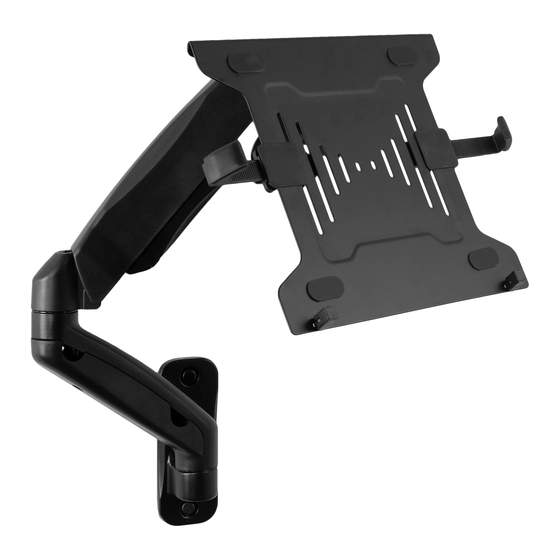

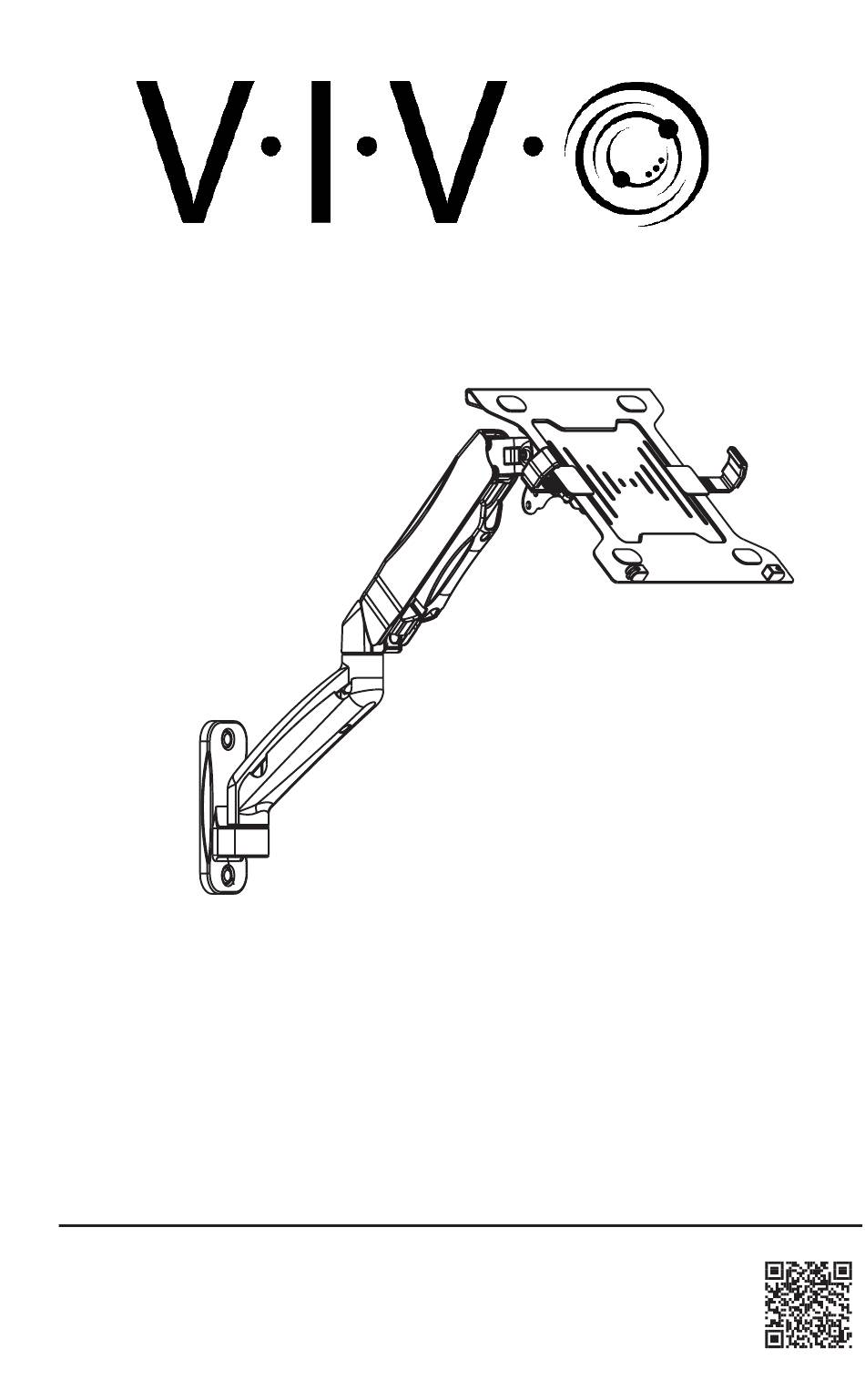

- Page 1 Pneumatic Arm Single Laptop Wall Mount SKU: MOUNT-V001GL/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-v001gl...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x2) C (x1) Cover Laptop Tray E (x2) D (x2) Clip Laptop Arm Included Hardware & Tools S-A (x4) M-A (x4) M-B (x4) M-C (x4) M4x8mm M4x12mm M5x12mm M5 Washer Screw Screw Screw W-A (x2) W-B (x2) W-C (x2) T-A (x1)
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Mounting Option 1: Wood Stud Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/16” (4.5mm) Drill Bit 2.2” (55mm) Hole Depth Place Arm (A) onto wall and mark drilling locations using a pencil. Use of a stud finder and level is recommended. - Page 5 STEP 1 - Cont’d Mounting Option 2: Concrete/Brick Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/8” (10mm) Drill Bit 2.4” (60mm) Hole Depth Place Arm (A) onto wall and mark drilling locations using a pencil. Use of a level is recommended.
- Page 6 STEP 2 Place Clips (E) through the front of the Laptop Tray (C), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. Front of Tray Front of Tray Back of Tray Prongs...
- Page 7 STEP 2 - Cont’d Press Laptop Arms (D) from the backside of Tray into Prongs on Clips (E), ensuring all four snap into place. Prongs...
- Page 8 STEP 3 Attach Laptop holder to Arm (A) using M4x8mm Screws (S-A). Tighten screws using the Phillips end of 5mm Allen Wrench (T-A). Laptop holder...
- Page 9 Adjusting Locking Laptop Arm Length 1. Release Locks: Pull tabs on Locks on the underside of Laptop Arms (D) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Laptop Arms (D) to width of your laptop.
- Page 10 STEP 4 Adjusting Arm Height Position Mount Arm Turn 10-20x to Set Laptop Height Position the Arm (A) horizontally, as shown above, and firmly hold in Turn 5mm Allen Wrench (T-A) 10-20 times place. to obtain proper support for your laptop. Use the guide below to adjust the tension according to the amount of counterbalance Insert 5mm Allen Wrench (T-A)
- Page 11 STEP 5 Using Phillips end of 5mm Allen Wrench (T-A), remove screw underneath cable covers. Insert cables and replace covers.
- Page 12 STEP 6 Press Covers (B) into screw holes.
- Page 13 Adjust as Desired Your Laptop Mount is now fully assembled. It can support a laptop up to 9.9lbs (4.5kg). If needed, tilt can be adjusted with 5mm Allen Wrench (T-A).
- Page 14 Optional: Monitor Mounting **Complete Standard Assembly Steps 1 and 2 before proceeding** Using 5mm Allen Wrench (T-A), partially install screws (M-A , M-B) with M5 Washers (M-C) in top two holes of monitor, leaving 3mm of space between the screw heads and monitor. Hang monitor with screws over slots in VESA plate.
- Page 15 Adjust as Desired Your Monitor Mount is now fully assembled. It can support any flat back monitor between 4.4lbs & 19.8lbs (2-9kg). If needed, tilt can be adjusted with 5mm Allen Wrench (T-A).
-
Page 16: Last Updated
LAST UPDATED: 7/10/24 REV2 v2.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
