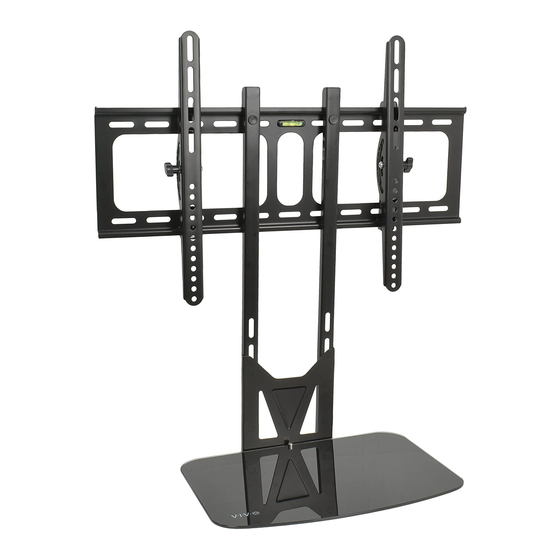

TV Wall Mount and Entertainment Shelf
Instruction Manual
SKU: MOUNT-VW11
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw11
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-VW11
Summary of Contents for Vivo MOUNT-VW11
- Page 1 TV Wall Mount and Entertainment Shelf Instruction Manual SKU: MOUNT-VW11 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw11 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Use TV plate (A) to mark mounting locations on wall for drilling. Use of a stud finder is highly recommended. Drill 1.2” deep holes with a 3mm or 1/8” drill bit, and anchor TV mounting plate (A) to wall using screws (M) and washers (L). - Page 4 STEP 2 Assemble mounting bracket (D) to hangers (C) at desired height using nuts (Q) and washers (O). Screw plastic thumb screws (P) through front of hangers (C) and thumb screws (T) through back of shelf mounting bracket. STEP 3 Assemble shelf support (F) and L bracket (R) to shelf mounting bracket with screws (S).
- Page 5 STEP 4 Slip shelf support pads (V) onto shelf support, and secure with 2.5mm Allen key (W). Rest glass shelf (E) on shelf support with pads, and secure with screw (S). DO NOT OVERTIGHTEN, as this could damage the glass. STEP 5 Hang shelf assembly onto TV plate (A), and secure with previously installed thumbscrews.
- Page 6 STEP 6 Assemble TV brackets (B) to TV using appropriate mounting screws (G, H, I, J) and washers (K). Ensure that VESA brackets are positioned with slots on top and holes on bottom, and with the tilt adjustment knobs facing away from each other.
- Page 7 STEP 7 Hang TV on TV plate (A) and secure with safety bolts underneath TV brackets (B).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
