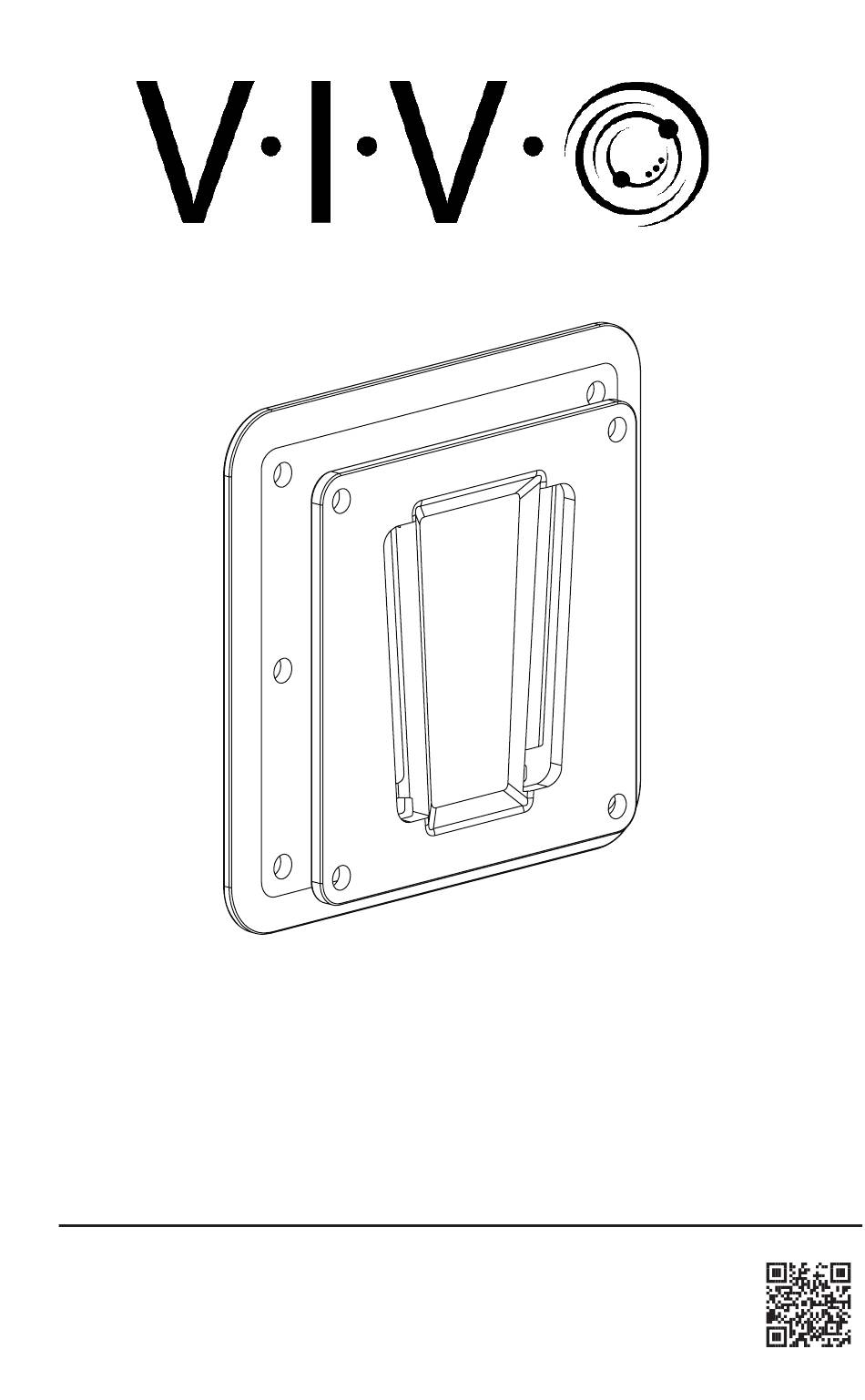

- Page 1 RV TV Mount Set 1 VESA Plate, 2 Wall Mounts SKU: MOUNT-VWRV1-3 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-vwrv1...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x2) B (x1) Wall Plate VESA Plate Included Hardware & Tools M-A (x4) M-B (x4) M-C (x4) M-D (x4) M4 Washer M4x12mm Screw M5x12mm M6x12mm Screw Screw W-A (x12) ST6x30mm Stainless Steel Screw Tools Needed: Weight Capacity: 30lbs (13.6kg) Pencil... -
Page 4: Installation Locations
Installation Locations camper TV mount can be installed on the inside or outside of an RV or wood stud walls. If mounting on an RV, locate the designated mounting location which should be pre-labled by manufacturer as TV BACKER or TV MOUNTING LOCATIONS. Refer to RV maufacturer for more information. -
Page 5: Assembly Steps
Assembly Steps STEP 1 Hold Wall Plate (A) up to the desired mounting location and mark hole locations using a pencil. Use of a level is highly recommended. If mounting in an RV make sure the trailer is level before leveling the mount. Drill marked holes 1.2”... - Page 6 STEP 2 Secure VESA Plate (B) to TV using appropriate Screws (M-B thru M-D), M4 Washers (M-A), and a Phillips screwdriver. Ensure “UP” callout is in the correct orientation. (x4) Choose appropriate mounting screw for your TV. (x4) If needed for your TV.
- Page 7 STEP 3 Because of low-profile of mount, any needed cables should be plugged in prior to mounting the TV. Once cables are plugged in, slide TV with VESA Plate (B) onto Wall Plate (A).
- Page 8 LAST UPDATED: 11/01/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
